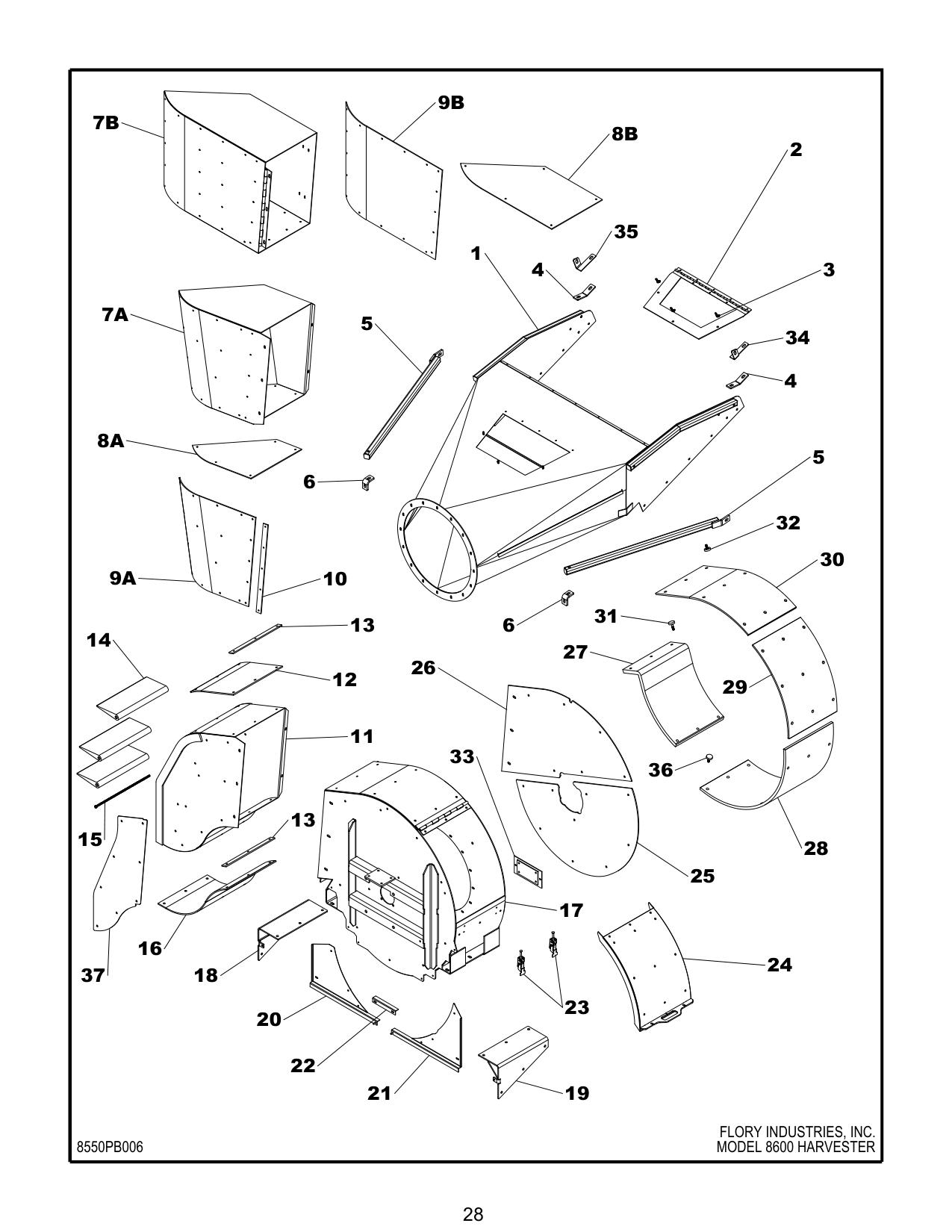

Figure 21 · Flory Flory 8600 SP Harvester
Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| 1 | L68155 | TUBE, air inlet | 1 |
| 2 | L27060 | DOOR, inlet tube | 1 |
| 3 | 5/16TN-C | THUMB NUT, door (5/16”) | 3 |
| 4 | L60325 | ANCHOR, inlet tube (~s/n 1088) | 2 |
| 5 | L60300 | DEFLECTOR, branch | 2 |
| 6 | L60340 | BRACKET, deflector | 2 |
| 7A | L63845 | DEFLECTOR, suction fan (other crops) | 1 |
| 7B | L63855 | DEFLECTOR, suction fan (option) | 1 |
| 8A | L63735 | LINER, deflector (L63845) (other crops) | 1 |
| 8B | L63745 | LINER, deflector (L63855) (option) | 1 |
| 9A | L34025 | LINER, side (L63845) (other crops) | 1 |
| 9B | L63755 | LINER, side (L63855) (option) | 1 |
| 10 | L64890 | CLAMP STRIP, liner (L63845)(all other crops) | 1 |
| 11 | L63860 | DEFLECTOR, suction fan (almonds) | 1 |
| 12 | L34210 | LINER, deflector (upper) (L63860)(almonds) | 1 |
| 13 | L64870 | CLAMP STRIP, liners (L63860)(almonds) | 2 |
| 14 | L65900 | VANE, deflector (steel) | 3 |
| 14 | L35905 | VANE, deflector (polyurethane) | 3 |
| 15 | L10905 | REDI BOLT, vane | 3 |
| 16 | L34220 | LINER, deflector (lower) (L63860)(almonds) | 1 |
| 17 | L68145 | HOUSING, suction fan | 1 |
| 18 | L67010 | MOUNT, suction fan (right) | 1 |
| 19 | L67030 | MOUNT, suction fan (left) | 1 |
| 20 | L20705 | SEAL, engine fan (right) | 1 |
| 21 | L20725 | SEAL, engine fan (left) | 1 |
| 22 | L20715 | SEAL, engine fan (center) | 1 |
| 23 | 701 | LATCH, suction fan door | 2 |
| 24 | L27050 | DOOR, suction fan | 1 |
| 25 | L63710 | LINER, fan housing side (lower front) | 1 |
| 26 | L63700 | LINER, fan housing side (upper front) | 1 |
| 27 | L35720 | LINER, fan (end cap) | 1 |
| 28 | L35740 | LINER, fan (lower) | 1 |
| 29 | L35750 | LINER, fan (door) | 1 |
| 30 | L35760 | LINER, fan (upper) | 1 |
| 31 | P6380B | POLY BOLT, liner (long) (used in L35720) | 6 |
| 32 | P6373B | POLY BOLT, liner (short) (used in L35750 & L35760) | 18 |
| 33 | L27255 | DOOR-suction fan cleanout | 1 |
| 34 | L60436 | ANCHOR, inlet tube (left) (s/n 1089~) | 1 |
| 35 | L60416 | ANCHOR, inlet tube (right) (s/n 1089~) | 1 |
| 36 | P6372B | POLY BOLT, liner (medium) (used in L35740) | 9 |
| 37 | L63716 | LINER, suction fan deflector (side)(almonds)(s/n 1279~) | 1 |
| 37 | 8550PB006 | MODEL 8600 HARVESTER |
