Reversible Cooling Fan · Flory Flory 8600 SP Harvester

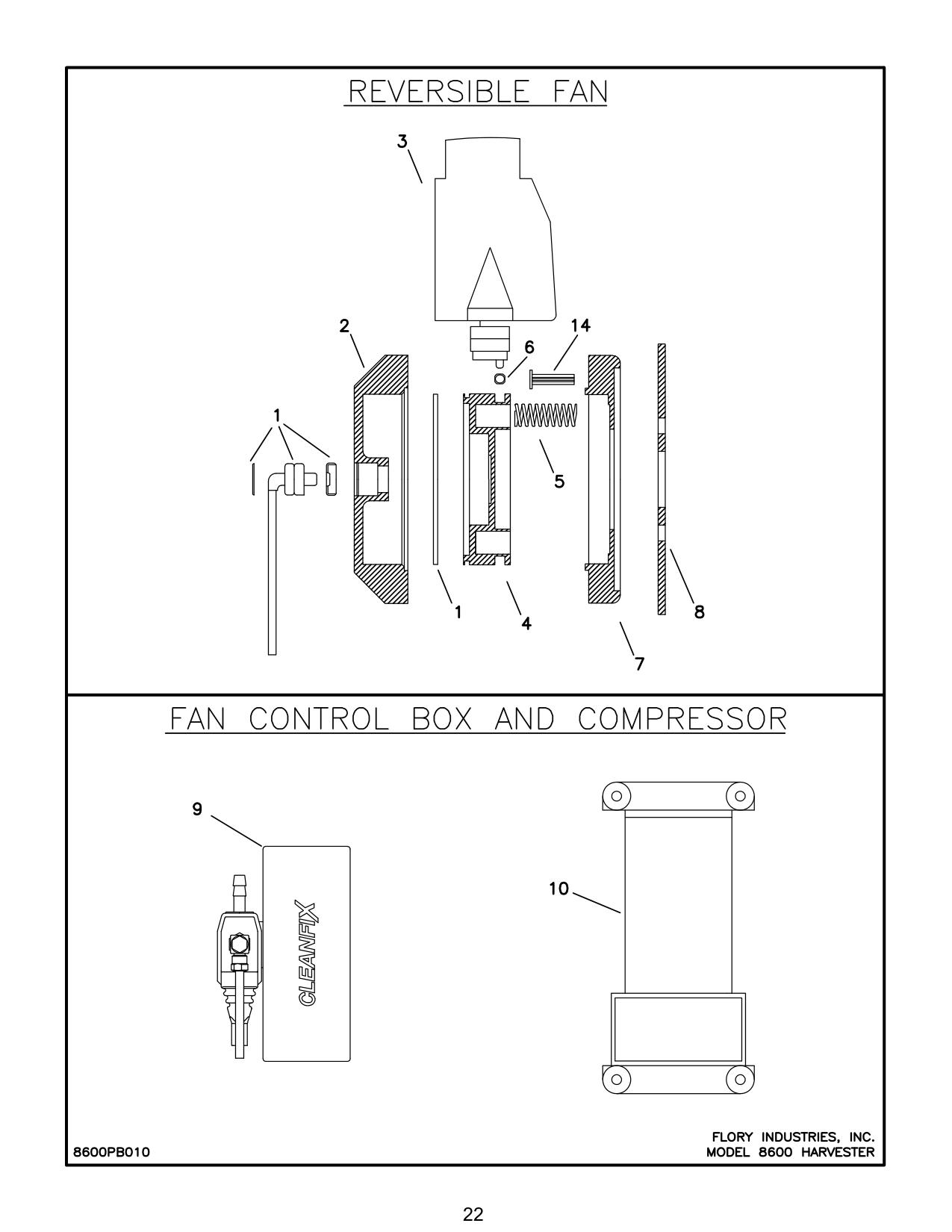

Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| FN4185 | ASSEMBLY, fan (includes numbers 1-7) | 1 | |
| 1 | FN4160K | KIT, bearing, seals & snap ring | 1 |
| 2 | NSS | HOUSING, front | 1 |
| 3 | FN3085 | BLADE, fan (set of 3) | 3 |
| 4 | NSS | PISTON, fan | 1 |
| 5 | SG5075 | SPRING, fan piston | 10 |
| 5 | SG5175 | SPRING, fan piston (polymer) | 4 |
| 6 | BR2075 | BEARING, pin | 9 |
| 7 | NSS | HOUSING, rear | 1 |
| 8 | L14185 | FLANGE, adapter | 1 |
| 9A | ME0900 | BOX, fan control (obsolete - replace with ME0986) | 1 |
| 9A | ME0986 | BOX, fan control | 1 |
| 9B | HS0078-1 | HOSE, compressor to intake & control box to fan (3/16") 276 in. | |
| 9C | HS0075-1 | HOSE, compressor to control box (6mm) 48 in. | |
| 9D | CA2000 | CLAMP, zip (mounts airline to radiator core) | 1 |
| 9E | CA2078 | CLAMP, ear (fan airline) (3/16") | 4 |
| 10A | ME0904 | COMPRESSOR, fan (obsolete - replace with ME0905) | 1 |
| 10B | ME0905 | COMPRESSOR, fan | 1 |
| 11 | RB7078 | GROMMET, airline (not shown) | 1 |
| 12 | VL5980 | SOLENOID, control valve (not shown) | 1 |
| 13 | VL6914 | VALVE, check (not shown)(s/n 1047~)(on plenum L67315) | 1 |
| 14 | CT2890 | ROD-spring | 10 |
| 14 | 8550PB010 | MODEL 8600 HARVESTER |
