Engine, Air Cleaner And Exhaust · Flory Flory 8600 SP Harvester

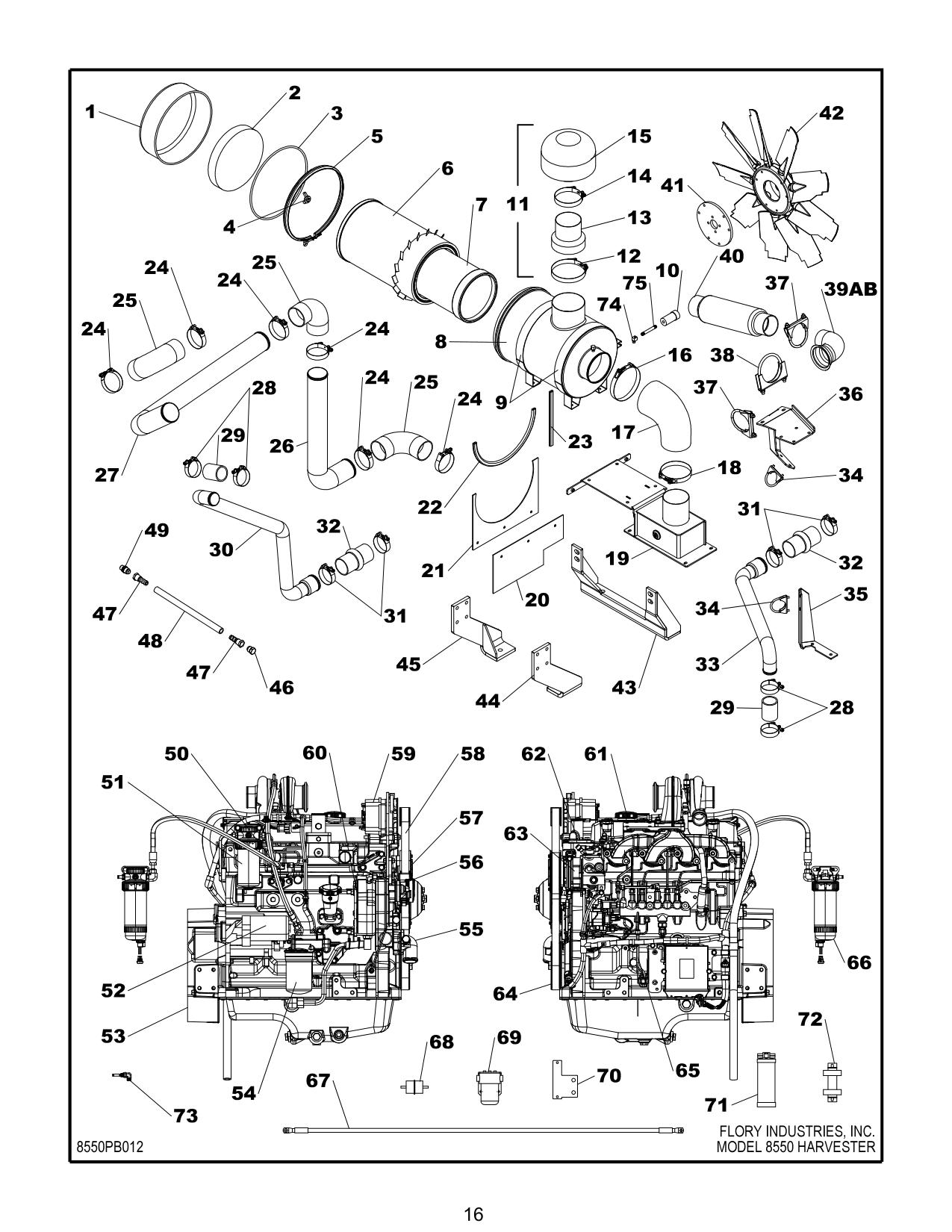

Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| 1 | CV1185 | CAP, air cleaner | 1 |
| 2 | NP5185 | BAFFLE, air cleaner | 1 |
| 3 | GS0185 | GASKET, air filter | 1 |
| 4 | NT8185 | WING NUT, elements | 1 |
| 5 | CA4385 | CLAMP, cap | 1 |
| 6 | FL7185 | ELEMENT, air filter (primary) | 1 |
| 7 | FL8185 | ELEMENT, air filter (secondary) | 1 |
| 8 | AC2185 | AIR CLEANER, complete (includes items 1-7) | 1 |
| 9 | CA4285 | BAND, air cleaner mounting | 2 |
| 10 | GA7056 | INDICATOR, a/c dirt | 1 |
| 11 | AC5085 | KIT, precleaner (kit includes items 11-15) | 1 |
| 12 | CA4501 | CLAMP, precleaner | 1 |
| 13 | NP7085 | ADAPTER, pre cleaner | 1 |
| 14 | CA4400 | CLAMP, precleaner | 1 |
| 15 | AC5185 | PRECLEANER | 1 |
| 16 | CA4500 | CLAMP, elbow | 1 |
| 17 | NP1385 | ELBOW, air cleaner to plenum | 1 |
| 18 | CA4408 | CLAMP, elbow | 1 |
| 19 | L67315 | PLENUM, air cleaner | 1 |
| 20 | L31605 | SEAL, plenum | 1 |
| 21 | L24065 | CLAMPSTRIP, plenum seal | 1 |
| 22 | RB1901-1 | SEAL, air cleaner 24 in. | |
| 23 | RB1900-1 | SEAL, air cleaner 10 in. | |
| 24 | B9226-0325 | CLAMP, elbow | 6 |
| 25 | P105532 | ELBOW, a/c tube | 3 |
| 26 | L10195 | TUBE, air cleaner | 1 |
| 27 | L10185 | TUBE, air cleaner | 1 |
| 28 | CA7110 | CLAMP, connector | 4 |
| 29 | NP2185 | CONNECTOR, silicone | 2 |
| 30 | L10115 | TUBE, charge air | 1 |
| 31 | B9226-0275 | CLAMP, hump hose | 4 |
| 32 | NP2085 | CONNECTOR, silicone | 2 |
| 33 | L10125 | TUBE, charge air | 1 |
| 34 | CA3200 | CLAMP, charge air tube | 2 |
| 35 | L17195 | BRACE, charge air tube | 1 |
| 36 | L17185 | BRACE, muffler | 1 |
| 37 | CA3300 | CLAMP, muffler | 2 |
| 38 | CA3400 | CLAMP, muffler | 1 |
| 39A | L10175 | ELBOW, exhaust | 1 |
| 39B | RE40048 | CLAMP, turbocharger (not shown) | 1 |
| 40 | XP1880 | MUFFLER | 1 |
| 40 | 8550PB012 | MODEL 8600 HARVESTER | |
| 41 | L14185 | MOUNT, fan | 1 |
| 42 | FN4185 | FAN, cooling (see break down for detail) | 1 |
| 43 | L67735 | MOUNT, rear engine | 1 |
| 44 | L67545 | MOUNT, engine (left front) | 1 |
| 45 | L67525 | MOUNT, engine (right front) | 1 |
| 46 | O03CP-10 | PLUG, male JIC | 1 |
| 47 | 10010B610 | ‘FITTING, engine oil drain hose | 1 |
| 48 | F831-10 | HOSE, engine oil drain | 1 |
| 49 | FT3188 | ADAPTER, engine oil drain (s/n ~1319) | 1 |
| 50 | FP1285 | PUNP, fuel transfer | 1 |
| 51A | FL2130 | ELEMENT, fuel filter (final) | 1 |
| 51B | RE516512 | O-RING, fuel filter | 1 |
| 51C | RE516553 | SEAL, fuel filter | 1 |
| 52 | RE68470 | STARTER | 1 |
| 53 | 4045H-1 | ENGINE | 1 |
| 54 | FL4003 | FILTER, oil | 1 |
| 55A | RE505980 | PUMP, water | 1 |
| 55B | RE515314 | KIT, water pump Note: Kit does not include R123226 seal (Qty. 2 required) | 1 |
| 55C | R123417 | GASKET, water pump | 1 |
| 55D | R123226 | SEAL, water pump | 2 |
| 56 | RE518097 | TENSIONER AR\M, belt | 1 |
| 57 | PL4075 | PULLEY, engine idler | 1 |
| 58 | R123468 | BELT, fan (open console only)( ~ s/n 1008) | 1 |
| 58 | BL4101 | BELT, fan (air cab only) (~ s/n 1008) | 1 |
| 58 | BL4101 | BELT, fan (all models)(s/n 1009 ~) | 1 |
| 59 | RE533653 | ALTERNATOR (95 amp) | 1 |
| 60 | OR9044 | O RING, between aux. drive & gear pump | 1 |
| 61 | CV7005 | CAP, oil filler | 1 |
| 62A | RE529270 | THERMOSTAT | 1 |
| 62B | R521548 | GASKET, thermostat | 1 |
| 63 | AR3175 | COMPRESSOR, air conditioning (air cab only) | 1 |
| 64 | R505567 | PULLEY, crankshaft | 1 |
| 65 | RE69243 | DIPSTICK, oil | 1 |
| 66A | FL2030 | ELEMENT, fuel filter (primary) | 1 |
| 66B | RE516512 | O-RING, fuel filter | 1 |
| 66C | RE516553 | SEAL, fuel filter | 1 |
| 67 | CB4060 | CABLE, engine ground | 1 |
| 68 | FL1185 | FILTER, fuel (in line) | 1 |
| 69 | FP1085 | PUMP, fuel | 1 |
| 70 | L64605 | MOUNT, receiver/dryer (air cab only) | 1 |
| 70 | AR4020 | RECEIVER/DRYER (air cab only) | 1 |
| 70 | 71B | S$W1070 SWITCH, pressure (air cab only) | 1 |
| 71C | BA1070 | ADAPTER, pressure switch (air cab only) | 1 |
| 72 | 06-10108 | MOUNT, receiver/dryer (air cab only) | 1 |
| 73 | 718075 | FITTING, aux. drive lube | 1 |
| 74 | 3400X2 | FITTING, 90 deg. indicator | 1 |
| 75 | FT4125 | NIPPLE, indicator | 1 |
