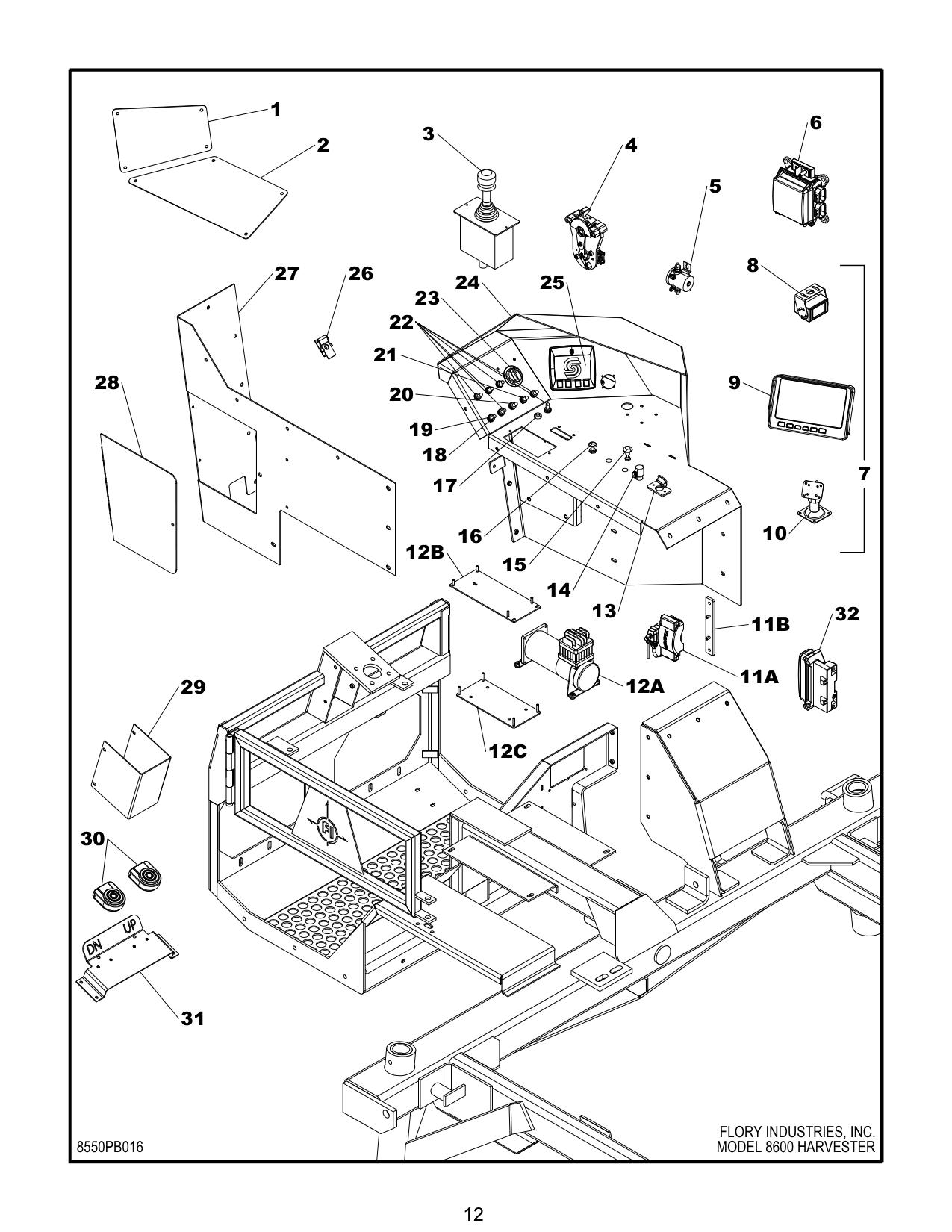

Figure 8 · Flory Flory 8600 SP Harvester
Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| 1 | L20625 | PANEL, console access | 1 |
| 2 | L20635 | PANEL, console access | 1 |
| 3 | CT6085 | CONTROLLER, hydrostat | 1 |
| 4 | CT5030 | CONTROLLER, throttle | 1 |
| 5 | SW3-R1 | SWITCH, solenoid relay | 1 |
| 6 | ME3085 | BLOCK, fuse | 1 |
| 7A | MK4024 | KIT, remote camera (includes items 7B-10) | 1 |
| 7B | CB0033 | CABLE (not shown) (included in kit) | 1 |
| 8 | MM1127 | CAMERA | 1 |
| 9 | MM1027 | MONITOR | 1 |
| 10 | BA1025 | MOUNT | 1 |
| 11A | ME0900 | BOX, fan control (obsolete - replace with ME0986) | 1 |
| 11A | ME0986 | BOX, fan control | 1 |
| 11B | L61126 | BRACKET, control box (use when replacing ME0900) | 1 |
| 12A | ME0904 | COMPRESSOR, air (obsolete - replace with ME0905) | 1 |
| 12A | ME0905 | COMPRESSOR, air | 1 |
| 12B | V6401 | PLATE, adapter (use when replacing ME0904) | 1 |
| 12C | L67686 | MOUNT, air compressor (s/n 1065~) | 1 |
| 13 | PG6010 | PLUG, power point | 1 |
| 14 | 95612 | SWITCH, ignition | 1 |
| 15A | SW2212 | SWITCH, brake | 1 |
| 15B | CT1085 | KNOB, (brake switch) | 1 |
| 16 | SW2210 | SWITCH, main drives (clutch) | 1 |
| 17 | SW2500 | SWITCH, reversible fan purge (used with ME0900) | 1 |
| 17 | SW2533 | SWITCH, reversible fan purge (used with ME0986) | 1 |
| 18 | SAN105 | BOOT, switch | 5 |
| 19 | SW2056 | SWITCH, stick box actuator (optional) | 1 |
| 20 | SW2010 | SWITCH, augers & unload | 1 |
| 21 | S208C | SWITCH, telescoping hitch | 1 |
| 22 | S2098 | SWITCH, toggle (elevator, hi/lo shift, lights) | 3 |
| 23 | SW3085 | SWITCH, flow control (elevator) | 1 |
| 24 | L20515 | CONSOLE, control | 1 |
| 25 | CM3030 | DISPLAY, engine & systems | 1 |
| 26A | F67528 | MOUNT, switch cover | 1 |
| 26B | F15008 | PIN, safety switch cover | 1 |
| 26C | F20008 | COVER, safety switch (SW2010) | 1 |
| 27 | L20525 | PANEL, console access | 1 |
| 28A | L29165 | DOOR, console access | 1 |
| 28B | 260 | FASTENER, access door (not shown) | 1 |
| 28C | 101-15 | RECEPTACLE, fastener (not shown) | 1 |
| 28C | 8550PB016 | MODEL 8600 HARVESTER |
