Rotary Trap And Pickup Belt · Flory Flory 8600 SP Harvester

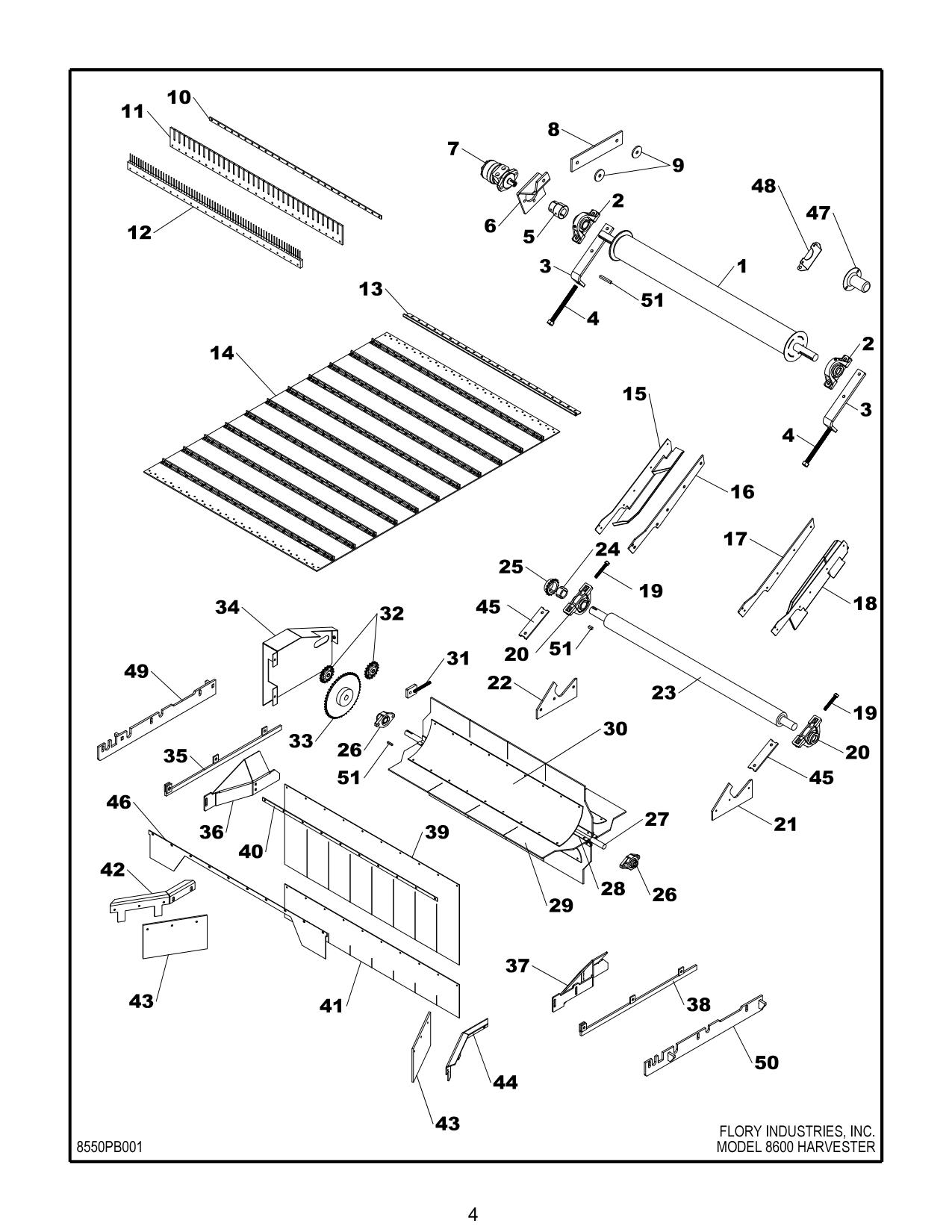

Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| 1 | F5012-R | SHAFT, p/u belt (upper) (rubber) | 1 |
| 2 | PBC2108 | BEARING, pickup belt shaft (upper) | 2 |
| 3 | F61348 | PAD, bearing take up | 2 |
| 4 | F10728 | REDI BOLT, bearing take up | 2 |
| 5 | CP9125 | COUPLER, motor to shaft | 1 |
| 6 | L67400 | MOUNT, pickup belt motor | 1 |
| 7A | HM3149 | MOTOR, pickup belt | 1 |
| 7B | HM3149K | SEAL KIT, motor | 1 |
| 8 | L30505 | ARM, torque (rubber) | 1 |
| 9 | L14015 | WASHER, torque arm | 2 |
| 10 | F6036 | CLAMP STRIP, pickup belt | 11 |
| 11 | F3036 | FLAP, pickup belt | 11 |
| 12 | F3024 | TEETH, pickup belt | 11 |
| 13 | F6024 | CLAMP STRIP, standard pickup belt | 2 |
| 14 | F4012 | BELT, pickup standard (complete) | 1 |
| 14 | F4024 | BELT, pickup standard (without teeth and flaps) | 1 |
| 14 | F4112M | BELT, pickup molded (complete) | 1 |
| 14 | F4124M | BELT, pickup molded (without teeth and flaps) | 1 |
| 14 | PN9124 | PIN, molded pickup belt connector (not shown) | 1 |
| 15 | F61468 | TROUGH, dirt (right) | 1 |
| 16 | F60718 | GUIDE, pickup belt (1/4" thick) (right) | 1 |
| 17 | F60738 | GUIDE, pickup belt (1/4" thick) (left) | 1 |
| 18 | F61488 | TROUGH, dirt (left) | 1 |
| 19 | F1048 | REDI BOLT, bearing take up | 2 |
| 20 | PBC2108 | BEARING, pickup belt (lower) | 2 |
| 21 | F60768 | WEAR STRIP, pickup belt (lower left)(s/n ~1101) | 1 |
| 21 | L60766 | WEAR STRIP, pickup belt (lower left)(s/n 1102~) | 1 |
| 22 | F60748 | WEAR STRIP, pickup belt (lower right)(s/n ~1101) | 1 |
| 22 | L60746 | WEAR STRIP, pickup belt (lower right)(s/n 1102~) | 1 |
| 23 | F59258 | SHAFT, pickup belt (lower) (3" dia.) | 1 |
| 24 | 1610108 | BUSHING, sprocket | 1 |
| 25 | 50BTL16H | SPROCKET, rotary trap (drive) | 1 |
| 26 | FLC2100 | BEARING, rotary trap | 2 |
| 27 | F5072 | SHAFT, rotary trap | 1 |
| 28 | F6096 | CLAMP STRIP, rotary trap flap | 4 |
| 29 | L30480 | FLAP, rotary trap | 4 |
| 30 | L30485 | FLAP, rotary pickup | 4 |
| 31 | L11335 | BRACKET, rotary trap take up | 2 |
| 32 | AG2416 | IDLER, sprocket | 2 |
| 33 | 50BS48100 | SPROCKET, rotary trap (driven) | 1 |
| 34 | L22105R | SHIELD, rotary | 1 |
| 34 | 8550PB001 | MODEL 8600 HARVESTER | |
| 35 | K6288 | WEAR STRIP, side plate (right)(s/n ~1101) | 1 |
| 35 | L62880 | WEAR STRIP, side plate (right)(pec./wal.)(s/n ~1101) | 1 |
| 36 | F6120 | DEFLECTOR, rotary trap (right) | 1 |
| 37 | F6108 | DEFLECTOR, rotary trap (left) | 1 |
| 38 | K6276 | WEAR STRIP, side plate (left)(s/n ~1101) | 1 |
| 38 | L62760 | WEAR STRIP, side plate (left)(pec./wal.)(s/n ~1101) | 1 |
| 39 | L30120 | CURTAIN, windrow (all crops except pecans) | 1 |
| 40 | F6012 | CLAMP STRIP, windrow curtain | 1 |
| 41 | L30130 | CURTAIN, windrow (pecans) | 1 |
| 42 | K6171-R1 | BRACKET, wing (right)(almonds, walnuts, hazelnuts) | 1 |
| 43 | K3173 | SEAL, wing | 2 |
| 44 | K6172-R1 | BRACKET, wing (left)(almonds, walnuts, hazelnuts) | 1 |
| 45 | F14238 | SPACER, bearing | 2 |
| 46 | L69915 | CLAMP STRIP, windrow curtain (pecan) | 1 |
| 47 | MC1011 | CAP, shaft end | 1 |
| 48 | L22006 | SHIELD, shaft end | 1 |
| 49 | L62968 | WEARSTRIP, adjustable (right) (s/n 1102~) | 1 |
| 50 | L62988 | WEARSTRIP, adjustable (left) (s/n 1102~) | 1 |
| 51 | A1017 | KEY, 1/4 X 1-1/4 | 1 |
| 52 | A1028 | KEY, 3/8 X 7/8 | 1 |
| 53 | A1004 | KEY, 3/8 X 3 | 1 |
