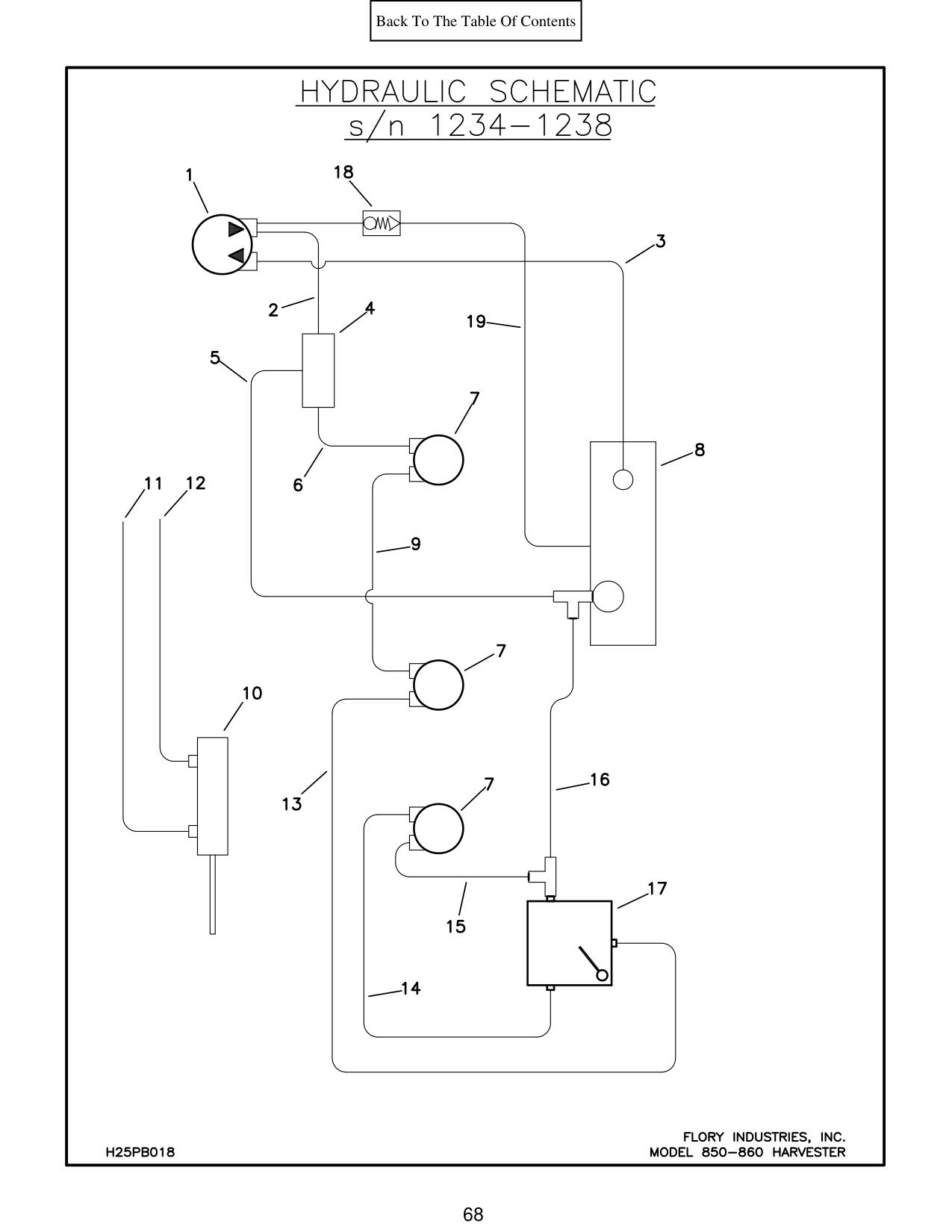

Figure 33 · Flory Flory 850/860 Harvester
Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| HYDRAULIC | SCHEMATIC (s/n 1234-1238) | ||
| 1A | HP3233 | PUMP-systems hydraulic (single / standard) | 1 |
| 1B | HP2155-K | SEAL KIT-pump | 1 |
| 2 | H12412-2 | HOSE-pump to relief valve (41”) | 1 |
| 3 | H2076S | HOSE-tank suction to pump (76”) | 1 |
| 4 | VL7080 | VALVE-relief | 1 |
| 5 | H12662 | HOSE-relief valve to tank return | 1 |
| 6 | H12252-3 | HOSE-relief valve to p/u belt motor (25”) | 1 |
| 7A | HM2149 | MOTOR-shaft drives | 3 |
| 7B | HM2149-K | SEAL KIT-motor | 3 |
| 8 | L67205 | TANK-oil | 1 |
| 9 | H121222-3 | HOSE-p/u belt motor to primary d/c motor (122”) | 1 |
| 10 | 310DB | CYLINDER-telescoping hitch | 1 |
| 11 | H82802 | HOSE-tractor to cylinder (280”) | 1 |
| 12 | H82692 | HOSE-tractor to cylinder (269") | 1 |
| 13 | H12352-2 | HOSE-primary d/c motor to flow control (35”) | 1 |
| 14 | H12772 | HOSE-flow control to secondary d/c motor (77”) | 1 |
| 15 | H12852 | HOSE-secondary d/c motor to flow control (85”) | 1 |
| 16 | H12422 | HOSE-flow control to tank return (42”) | 1 |
| 17 | VL3850 | VALVE-flow control | 1 |
| 18 | VL0020 | VALVE-air bleed | 1 |
| 19 | H61041-2 | HOSE-air bleed valve to tank (104”) | 1 |
| 19 | H25PB018 | MODEL 850-860 HARVESTER |
