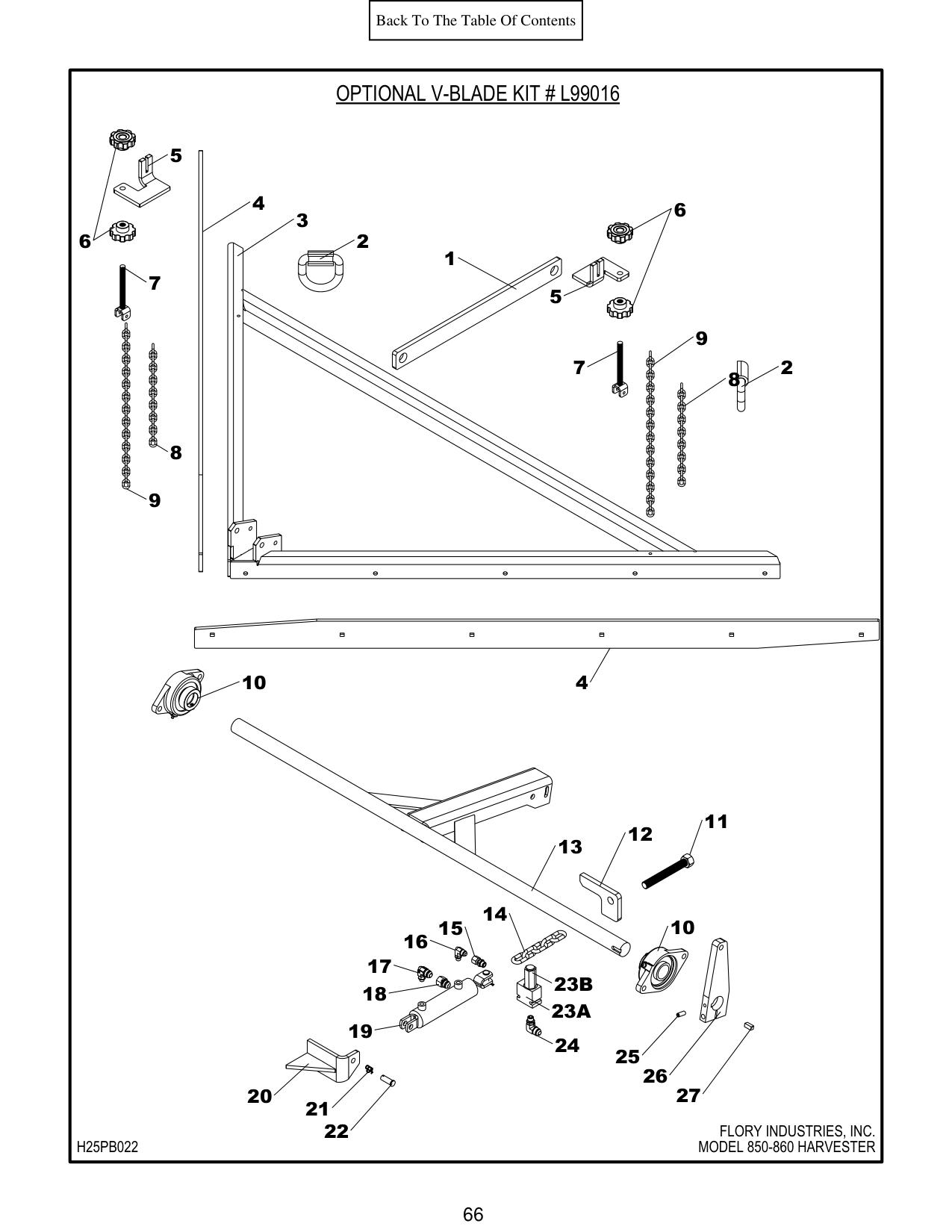

Figure 32 · Flory Flory 850/860 Harvester
Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| 1 | L69385 | REAR HITCH STRAP | 1 |
| 2 | RN0940 | TIE DOWN RING | 2 |
| 3 | L61158 | SCRAPER FRAME | 1 |
| 4 | L76018 | SCRAPER BLADE | 2 |
| 5 | L60005-077 | CHAIN ADJUSTER MOUNT | 2 |
| 6 | CT1086 | 1/2-13 Threaded Knob | 4 |
| 7 | L11008 | ADJUSTER, V-BLADE | 2 |
| 8 | 3593T44 | CHAIN, 16 LINKS | 2 |
| 9 | 3593T44 | CHAIN, 26 LINKS | 2 |
| 10 | FLC2108 | BEARING | 2 |
| 11 | T11015 | STOP REDI BOLT | 1 |
| 12 | L20006 | CYLINDER COVER | 1 |
| 13 | L53106 | LIFT ARM, V-BLADE | 1 |
| 14 | 516C-1 | 5/16" CHAIN (5 LINKS) | 1 |
| 15 | 0506-6-6 | SWIVEL STRAIGHT ORB/JIC | 1 |
| 16 | 2503-4-6 | 90 DEG, ELBOW ORB/JIC | 1 |
| 17 | 2503-4-8 | 90 DEG, ELBOW ORB/JIC | 1 |
| 18 | FT3015 | ORIFICE FITTING, JIC | 1 |
| 19A | HC1540 | HYDRAULIC CYLINDER | 1 |
| 19B | LD108RK | SEAL KIT, use if p/n on cylinder begins with "COL " | 1 |
| 19C | HC1540K | SEAL KIT, use if p/n on cylinder begins with "CU " | 1 |
| 20 | L67006 | CYLINDER MOUNT | 1 |
| 21 | RN8050 | RUE RING | 2 |
| 22 | 87462 | CLEVIS PIN | 2 |
| 23A | VL7260 | HOLDING VALVE | 1 |
| 23B | VL7360 | RELIEF CARTRIDGE | 1 |
| 24 | 2503-6-8 | 90 DEG, ELBOW ORB/JIC | 1 |
| 25 | BT0005 | SET SCREW, 3/8-16 X 1" | 1 |
| 26 | L64006 | ARM, CYLINDER | 1 |
| 27 | L16006 | KEY, LIFT ARM | 1 |
| 27 | H25PB022 | MODEL 850-860 HARVESTER |
