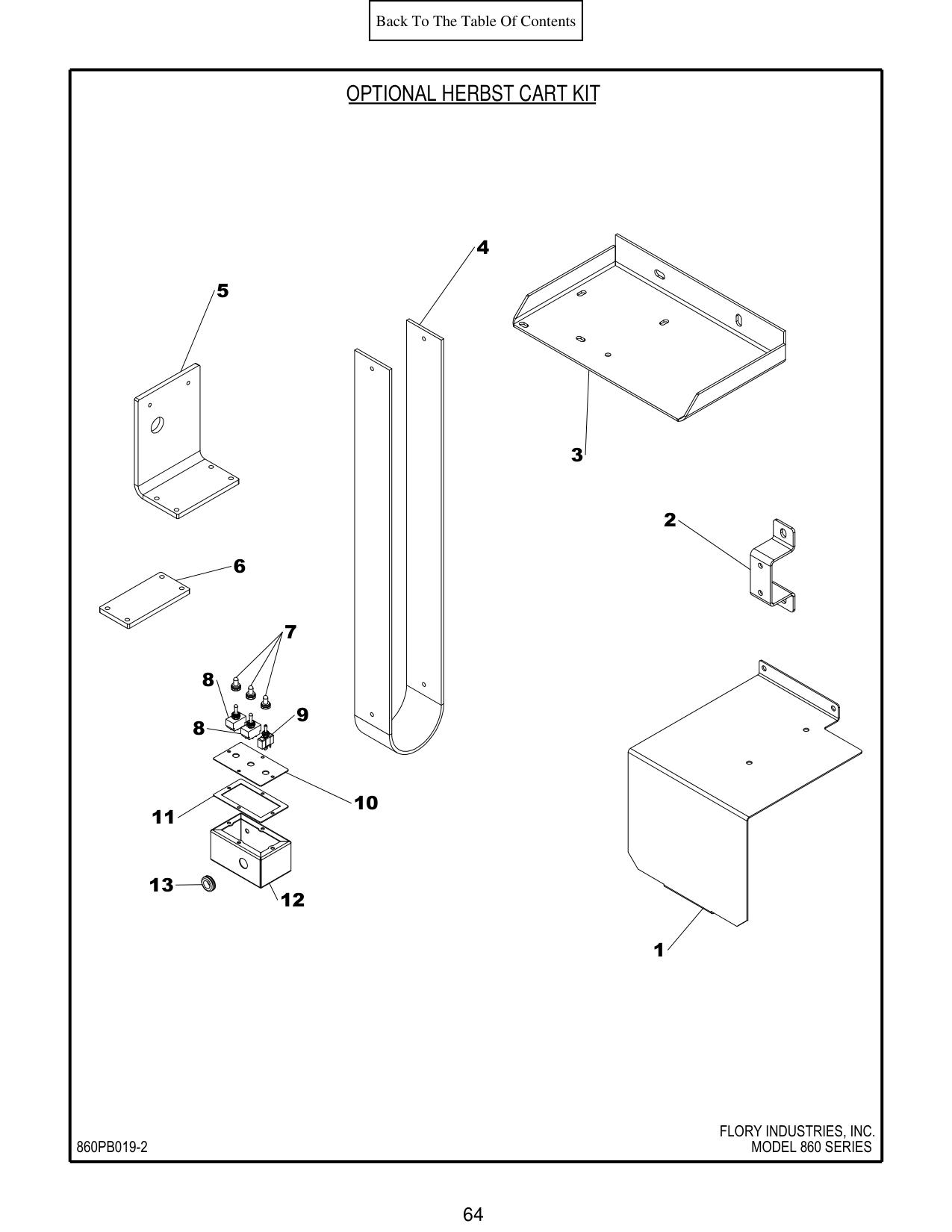

Figure 31 · Flory Flory 850/860 Harvester
Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| 1 | L29306 | VALVE SHIELD | 1 |
| 2 | L69146 | DUMP VALVE MOUNT | 1 |
| 3 | F69268 | VALVE MOUNT | 1 |
| 4 | L39606 | RUBBER HOSE STRAP | 1 |
| 5 | L69126 | FLOW CONTROL MOUNT | 1 |
| 6 | L69136 | FLOW CONTROL MOUNT | 1 |
| 7 | SAN105 | SWITCH BOOT | 3 |
| 8 | S208C | TOGGLE SWITCH | 2 |
| 9 | S2098 | TOGGLE SWITCH | 1 |
| 10 | L29525 | SWITCH BOX COVER | 1 |
| 11 | GS0086 | SWITCH BOX GASKETS | 1 |
| 12 | L29515 | SWITCH BOX | 1 |
| 13 | RB7010 | 5/8" GROMMET | 1 |
| 14 | ME5852-1 | WIRE HARNESS | 1 |
| 15 | ME5853-1 | WIRE HARNESS | 1 |
| 16 | OPTH-850-09-A-HFB | 850 HERBST VALVE H&F KIT | 1 |
| 17 | VL4180 | HYDRAULIC VALVE | 1 |
| 18 | VL4380 | HYDRAULIC VALVE | 1 |
| 18 | 860PB019-2 | MODEL 860 SERIES |
