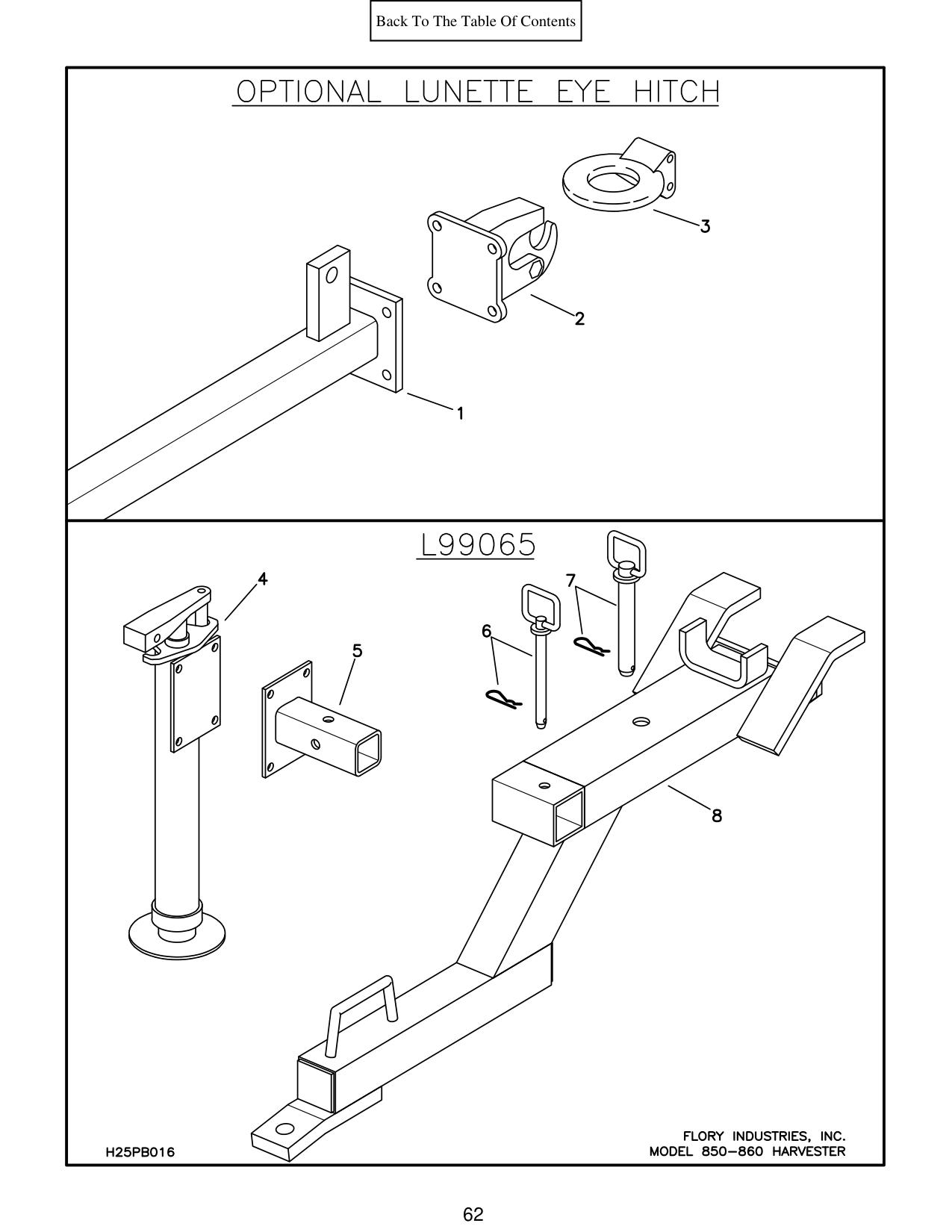

Figure 30 · Flory Flory 850/860 Harvester
Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| OPTIONAL | LUNETTE EYE HITCH KIT | ||
| 1 | L69105 | HITCH | 1 |
| 2 | HT5400 | COUPLER | 1 |
| 3 | 6137 | HITCH-lunette eye | 1 |
| 3 | L99065 | OPTIONAL TOW HITCH KIT | |
| 4 | HT8480 | JACK STAND | 1 |
| 5 | F69288 | RECEIVER-jack stand | 1 |
| 6A | P6256 | PIN-hitch | 1 |
| 6B | PN3004 | PIN-hair (1/8”)(included with P6256) | 1 |
| 7A | 12687 | PIN-hitch | 1 |
| 7B | PN3005 | PIN-hair (5/32”)(included with 12687) | 1 |
| 8 | L69185 | HITCH-tow | 1 |
| 8 | H25PB016 | MODEL 850-860 HARVESTER |
