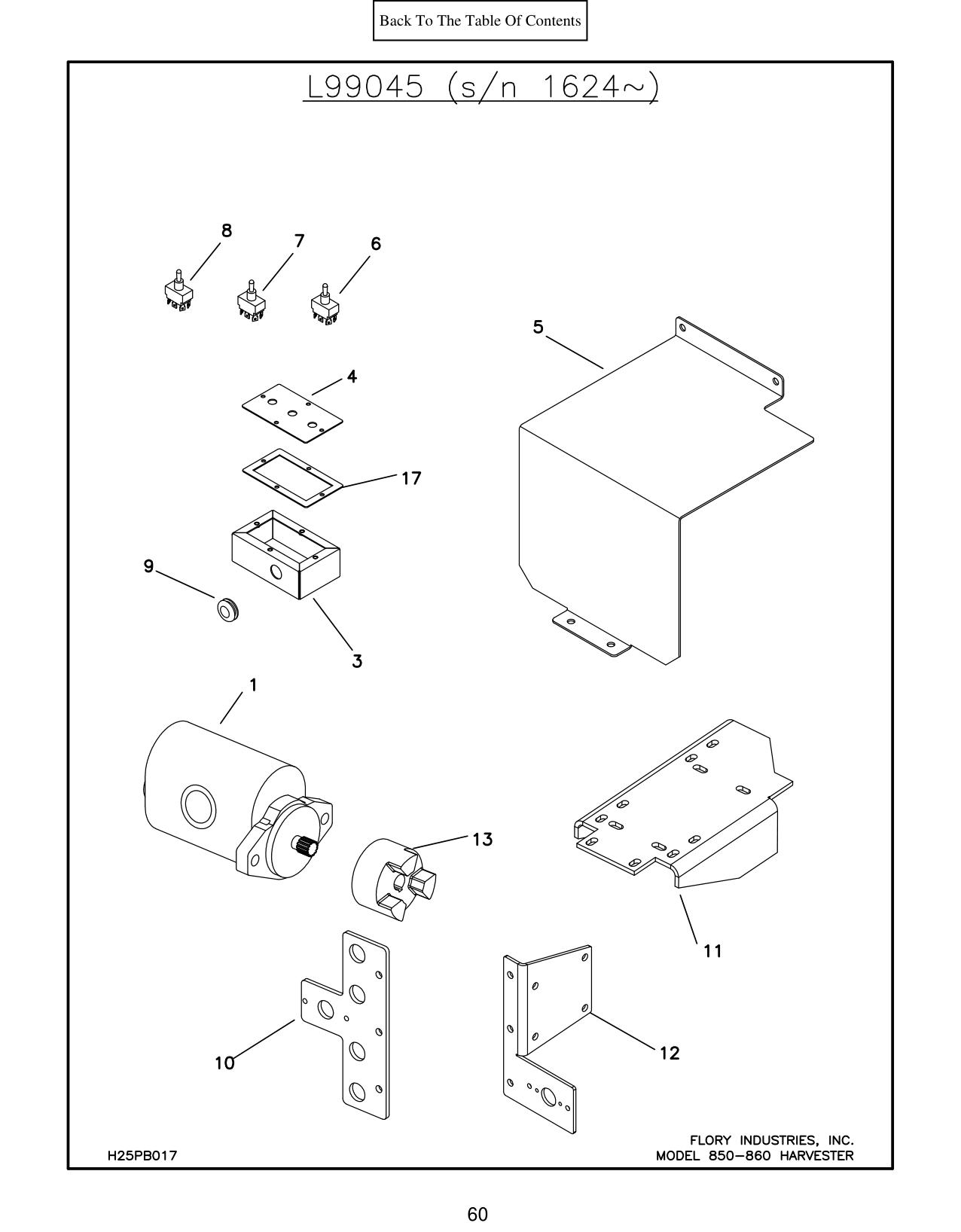

Figure 29 · Flory Flory 850/860 Harvester
Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| L99045 | OPTIONAL POWER PAK KIT (s/n 1624~) | ||
| 1A | HP4233 | PUMP, double system hyd. ( ~ s/n 2076) | 1 |
| 1A | HP2823 | PUMP, double system hyd. ( s/n 2077 ~) | 1 |
| 1B | HP4223-K | SEAL-KIT, pump, with wearplate ( s/n 1624 ~) | 1 |
| 1B | HP1061K | SEAL-KIT, pump, w/o wearplate ( s/n 2077 ~) | 1 |
| 2 | VL5184 | VALVE-control (not shown) | 1 |
| 2 | VL5286 | VALVE-control (not shown) (s/n 1987~) | 1 |
| 3 | L29515 | BOX-switch | 1 |
| 4 | L29525 | COVER-switch box | 1 |
| 5 | L20305 | COVER-solenoid valve | 1 |
| 6A | SW2010 | SWITCH-toggle (dpst) | 1 |
| 6B | SAN105 | BOOT-rubber | 1 |
| 7A | S2098 | SWITCH-toggle (spst) | 1 |
| 7B | SAN105 | BOOT-rubber | 1 |
| 8A | SW2056 | SWITCH, toggle (dpdt) | 1 |
| 8B | SAN105 | BOOT-rubber | 1 |
| 9 | RB7010 | GROMMET- rubber | 1 |
| 10 | L67775 | MOUNT- quick coupler (Required when retrofitting) | 1 |
| 11 | L60005-066 | MOUNT-valve (This weld bracket is required for | 1 |
| 12 | L67776 | MOUNT- cart manifold (s/n 1987~) | 1 |
| 13 | CP8100 | COUPLER, pump half (s/n 2077 ~) | 1 |
| 14A | MF7286 | MANIFOLD, HIC (not shown) (s/n 1987~) | 1 |
| 14B | VL7286 | CARTRIDGE (not shown) (s/n 1987~) | 2 |
| 14C | ME1186 | COIL (not shown) (s/n 1987~) | 2 |
| 15 | FD285 | DECAL, switch box (not shown) | 1 |
| 16 | PG6070 | PLUG, linear actuator (not shown) | 1 |
| 17 | GS0086 | GASKET, switch box | 1 |
| 17 | H25PB017 | MODEL 850-860 HARVESTER |
