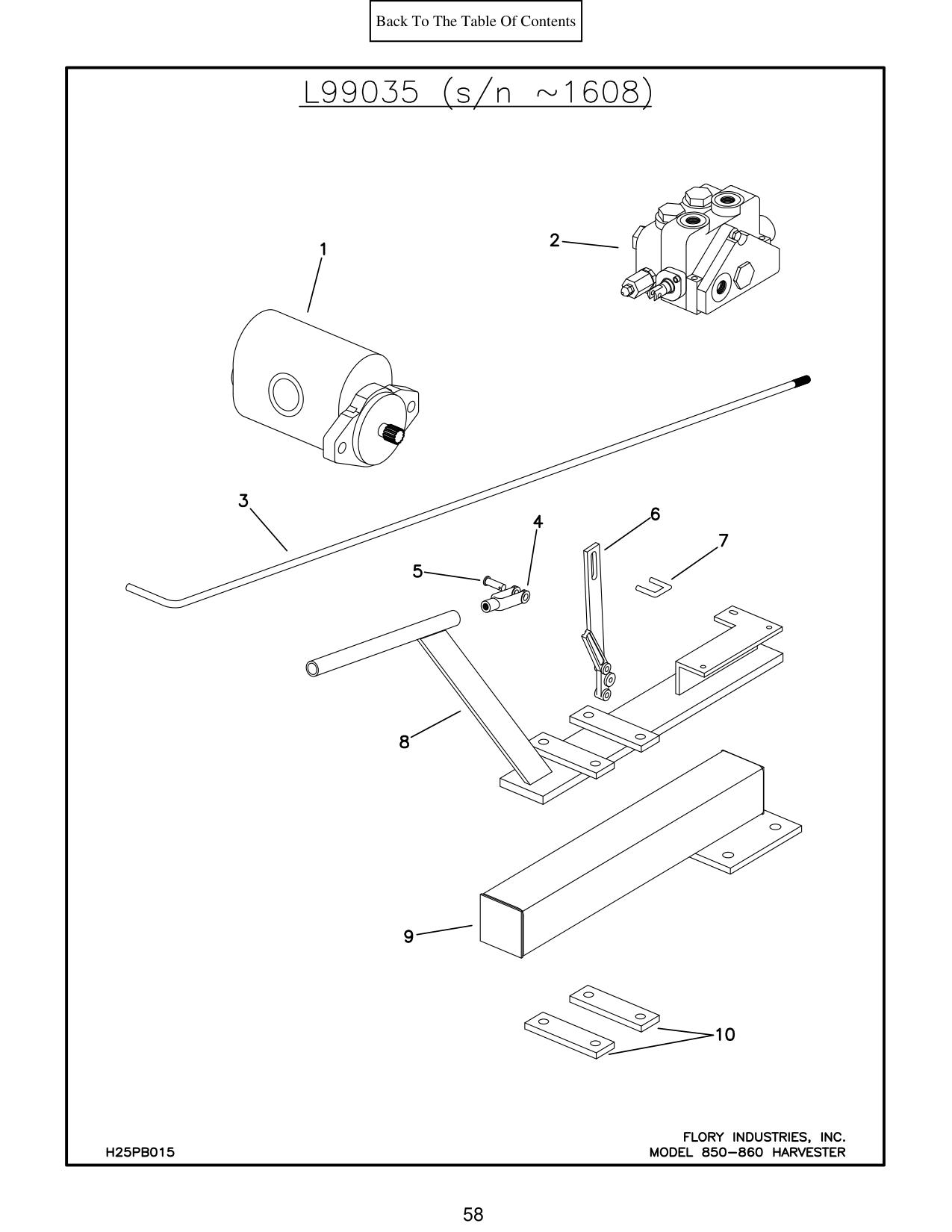

Figure 28 · Flory Flory 850/860 Harvester
Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| L99035 | OPTIONAL POWER PAK KIT (s/n~1608) | ||
| 1A | HP4233 | PUMP-systems hydraulic (double) | 1 |
| 1B | HP4233-K | SEAL KIT-pump | 1 |
| 2 | 20A-A115 | VALVE-control | 1 |
| 3 | F12098 | ROD-valve handle | 1 |
| 4 | 87440 | CLEVIS | 1 |
| 5 | 42954 | PIN-clevis | 1 |
| 6 | F69248R | HANDLE-valve | 1 |
| 7 | CT0480 | C HOOK-valve handle | 1 |
| 8 | F69228 | MOUNT-valve and rod | 1 |
| 9 | L69015 | MOUNT-valve and rod | 1 |
| 10 | F69238 | CLAMP-mount | 2 |
| 10 | H2087S | HOSE-tank suction to pump (87”) | 1 |
| 10 | H1224S | HOSE-pump to valve (24”) | 1 |
| 10 | H121062-2 | HOSE-valve to tank (106”) | 1 |
| 10 | H122112 | HOSE-valve to male quick connect (211”) | 1 |
| 10 | H122092 | HOSE-valve to female quick connect (209”) | 1 |
| 10 | 2103-12-12 | ADAPTER-hyd. | 1 |
| 10 | 013T-12-12 | ADAPTER-hyd. | 1 |
| 10 | 213T-12-12 | ADAPTER-hyd. | 1 |
| 10 | 2103-8-8 | ADAPTER-hyd. | 4 |
| 10 | PD312BTX | ADAPTER-hyd. | 1 |
| 10 | 2203-2020 | ADAPTER-hyd. | 1 |
| 10 | 0103-12-12 | ADAPTER-hyd. | 1 |
| 10 | 0503-16-20 | ADAPTER-hyd. | 1 |
| 10 | 0503-12-12 | ADAPTER-hyd. | 1 |
| 10 | 053T-12-12 | ADAPTER-hyd. | 1 |
| 10 | 0503-12-12 | ADAPTER-hyd. | 1 |
| 10 | 0503-10-12 | ADAPTER-hyd. | 2 |
| 10 | 0153-12-12 | ADAPTER-hyd. | 2 |
| 10 | 6601-12-12 | COUPLER-quick (3/4” female) | 1 |
| 10 | 6602-12-12 | COUPLER-quick (3/4” male) | 1 |
| 10 | PD312BTX | FITTING-hyd. test | 1 |
| 10 | FT4045 | BUSHING-pipe (1-1/4” x 3/4”) | 1 |
| 10 | FT4086 | ELBOW-pipe (1-1/4”) | 1 |
| 10 | 1/2X5-C | USS BOLT | 4 |
| 10 | 1/2LW-C | USS LOCK WASHER | 4 |
| 10 | 1/2N-C | USS NUT | 4 |
| 10 | 9/16X1-1/4-C | USS BOLT | 4 |
| 10 | 9/16LW-C | USS LOCK WASHER | 4 |
| 10 | H25PB015 | MODEL 850-860 HARVESTER |
