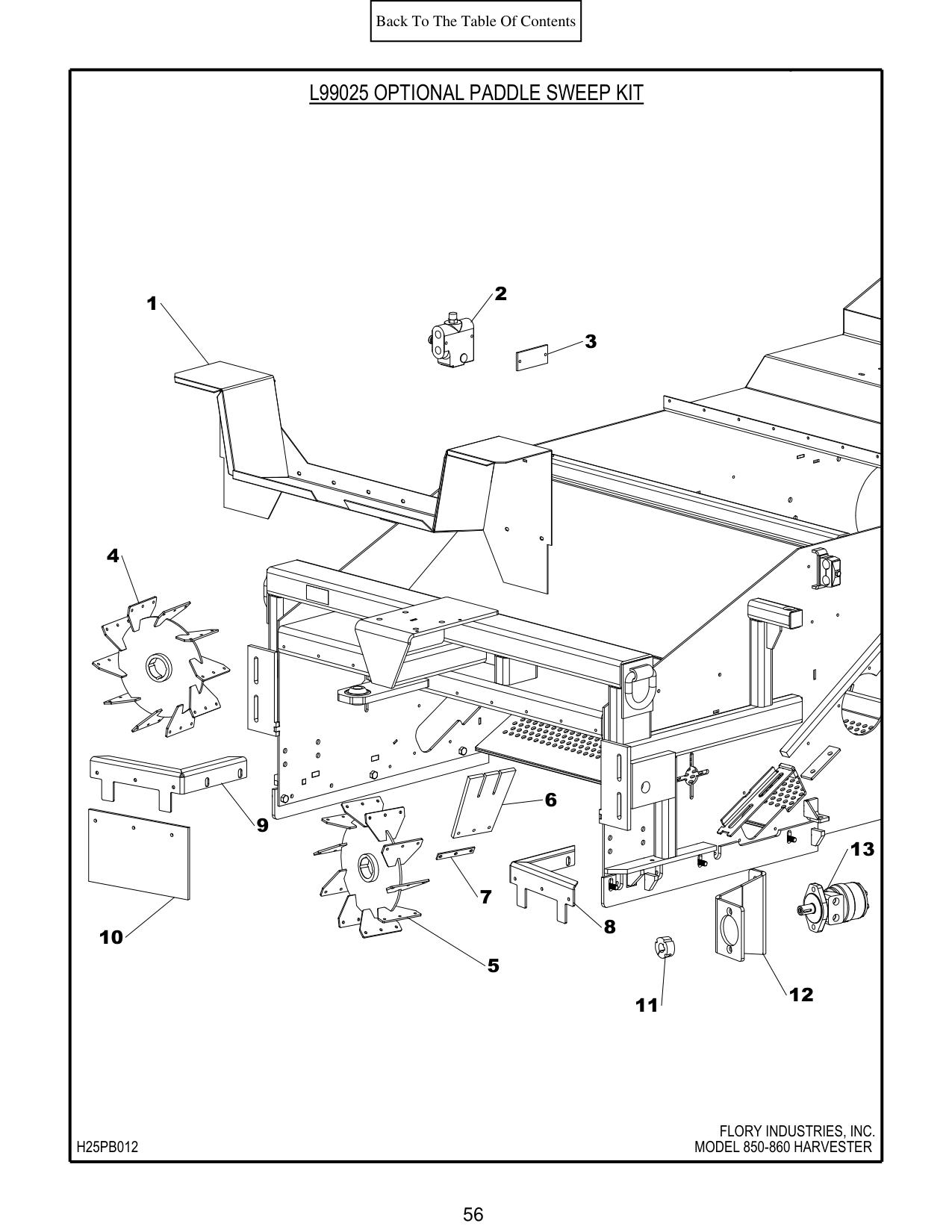

Figure 27 · Flory Flory 850/860 Harvester
Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| L99025 | OPTIONAL PADDLE SWEEP KIT | ||
| 1 | L20990 | COVER-front sweep | 1 |
| 2 | RDRS197530 | VALVE-flow control | 1 |
| 3 | TK1002 | BRACKET-flow control | 1 |
| 4 | F61768 | PLATE-paddle (right) | 1 |
| 5 | F61788 | PLATE-paddle (left) | 1 |
| 6 | TM3042 | PADDLE | 20 |
| 7 | T6114 | CLAMPSTRIP-paddle | 20 |
| 8 | F61728 | EXTENSION WING-pecan (left) | 1 |
| 9 | F61718 | EXTENSION WING-pecan (right) | 1 |
| 10 | K3173 | EXTENSION WING-rubber | 2 |
| 11 | 1610100 | BUSHING-plate | 2 |
| 12 | L67155 | MOUNT-motor | 2 |
| 13A | WM14 | MOTOR-hydraulic (s/n ~1326) | 2 |
| 13A | HM2149 | MOTOR-hydraulic (s/n 1327~) | 2 |
| 13B | WMK14 | SEAL KIT-motor (s/n ~1326) | 2 |
| 13B | HM2149-K | SEAL KIT-motor (s/n 1327~) | 2 |
| 14 | L99025-HFB | KIT- hose & fitting (not shown) Hose and fitting kit includes all hose and fitting required per machine s/n. | 1 |
| 14 | 1/4X3/4-C | USS BOLT | 6 |
| 14 | 1/4X1-C | USS BOLT | 60 |
| 14 | 1/4X6-C | USS BOLT | 2 |
| 14 | 1/4N-C | USS NUT | 8 |
| 14 | 1/4LW-C | USS LOCK WASHER | 8 |
| 14 | 1/4LN-C | USS LOCK NUT | 60 |
| 14 | 1/4FW-C | USS FLAT WASHER | 60 |
| 14 | 5/16X3/4S-C | SELF TAPPING SCREW | 2 |
| 14 | 5/16X3/4-C | USS BOLT | 2 |
| 14 | 5/16LW-C | USS LOCK WASHER | 2 |
| 14 | 5/16N-C | USS NUT | 2 |
| 14 | 5/16FW-C | USS FLAT WASHER | 4 |
| 14 | 1/2X1-1/2FH-C | FLATHEAD BOLT | 4 |
| 14 | 1/2X1-3/4-C | USS BOLT | 4 |
| 14 | 1/2N-C | USS NUT | 8 |
| 14 | 1/2LW-C | USS LOCK WASHER | 8 |
| 14 | 1/2FW-C | USS FLAT WASHER | 4 |
| 14 | LARGE | TIE STRAPS | 6 |
| 14 | H25PB012 | MODEL 850-860 HARVESTER |
