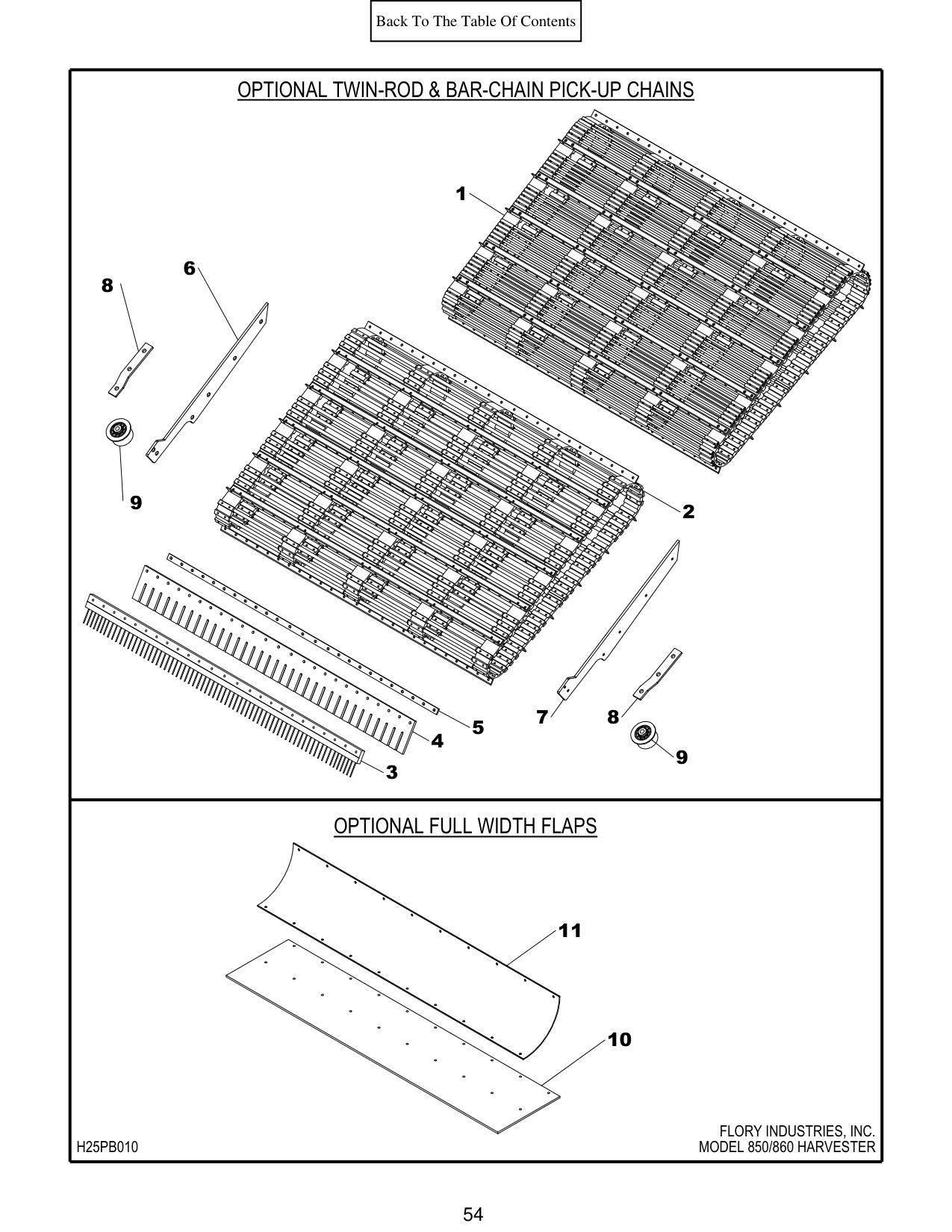

Figure 26 · Flory Flory 850/860 Harvester
Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| OPTIONAL | TWIN-ROD & BAR-CHAIN PICK-UP CHAINS | ||
| 1A | L49126-3 | CHAIN, twin-rod pickup (almond)(includes items 1B-1D, 3-5) | 1 |
| 1B | L49246-3 | CHAIN, twin-rod pickup (almond)(includes items 1C-1D) | 1 |
| 1C | L12116 | TWIN-ROD, replacement (use hardware kit MK6386) | 36 |
| 1D | MM7246 | MOUNT, teeth and flap (use hardware kit MK6246) | 12 |
| 2A | L40135 | BELT, bar-chain pickup (walnut)(incl. items 2B-2D, 3-5)(obs) | 1 |
| 2A | L40135-2 | BELT, bar-chain pickup (walnut)(includes items 2B-2D, 3-5) | 1 |
| 2B | L40255 | BELT, bar-chain pickup (walnut)(includes items 2C-2D)(obs) | 1 |
| 2B | L40255-2 | BELT, bar-chain pickup (walnut)(includes items 2C-2D) | 1 |
| 2C | L12255 | BAR, pickup belt (without rubber tubes) | 36 |
| 2D | L60635 | MOUNT, teeth and flap | 12 |
| 3 | F3024 | TEETH, pickup belt | 12 |
| 4 | F3036 | FLAP, pickup belt | 12 |
| 5 | F6036 | CLAMP STRIP, pickup belt | 12 |
| 6 | F60708 | GUIDE, pickup belt (5/16" thick) (right) (s/n 999~) | 1 |
| 7 | F60728 | GUIDE, pickup belt (5/16" thick) (left) (s/n 999~) | 1 |
| 8 | F67768 | MOUNT, guide roller | 2 |
| 9 | RL1850 | ROLLER, guide | 2 |
| 9 | OPTIONAL | FULL WIDTH FLAPS | |
| 10 | L30385 | FLAP, rotary sweep | 4 |
| 11 | L30395 | FLAP, rotary sweep support | 4 |
| 11 | H25PB010 | MODEL 850-860 HARVESTER |
