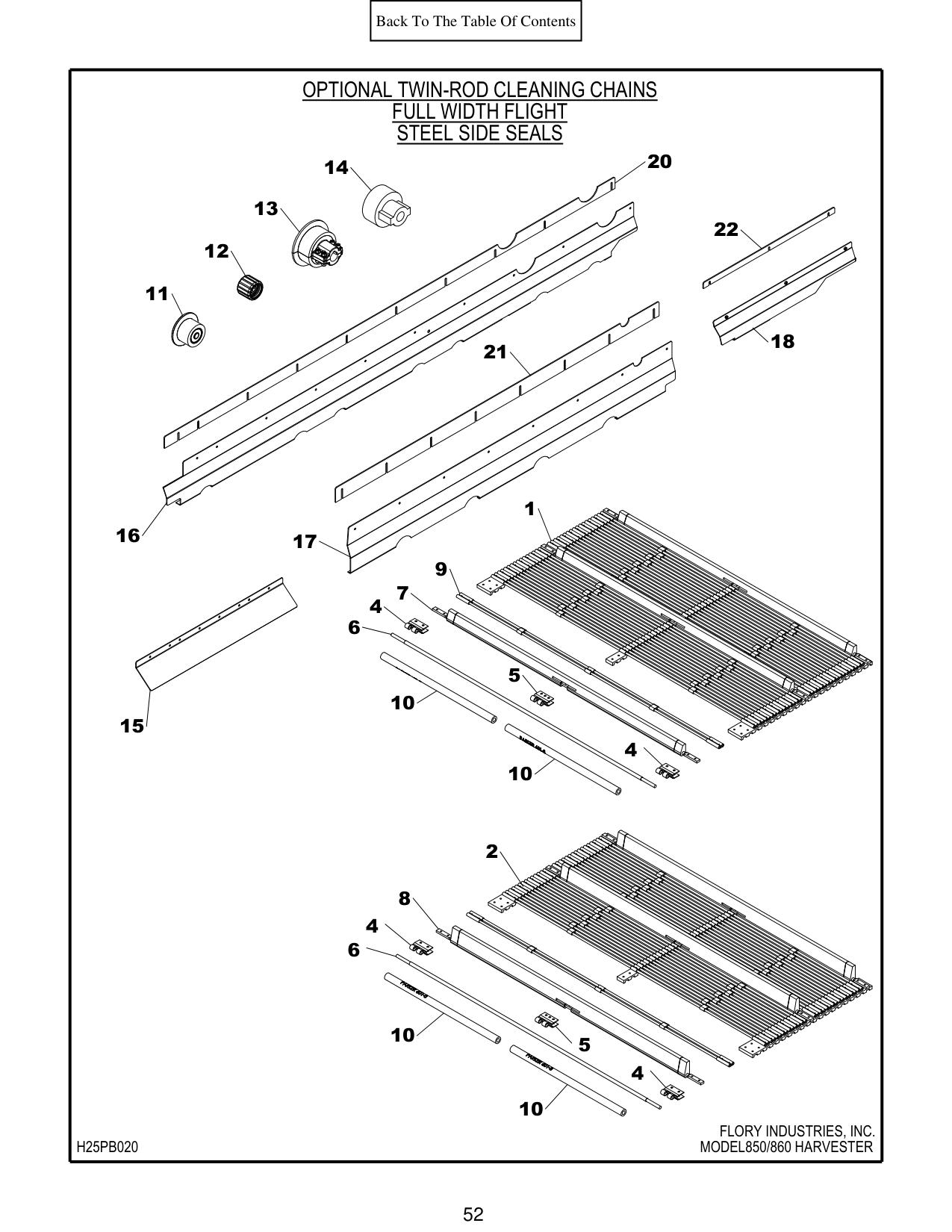

Figure 25 · Flory Flory 850/860 Harvester

Tap a circled number on the diagram to identify the part.

diagram
✕
#Part numberDescriptionQty
1 L42898 TWIN-ROD CHAIN, primary (opt. almond) 1
2 L45867 TWIN-ROD CHAIN, secondary (opt. almond) 1
3 NOT SHOWN
4 L24116 CLIP KIT, joint rod (side)(pri. & sec.)(opt. almond)
4 L42898 = 2; L45867 = 2
5 L24126 CLIP KIT, joint rod (center)(pri. & sec.)(opt. almond)
5 L42898 = 1; L45867 = 1
6 L12636 CON ROD, chain joint (11mm)(pri. & sec.)(opt. almond)(OBS) 2
6 L12656 CON ROD, chain joint (11mm)(pri. & sec.)(opt. almond) Note: L12656 replaces L12636 2
7 L12228 ROD, flight (full width)(primary)(opt. almond)(L42898) Use hardware kit MK6586 19
8 L30006 ROD, flight (full width)(secondary)(opt. almond)(L45867) Use hardware kit MK6586 21
9 L12126 TWIN-ROD, replacement (pri. & sec.)(opt. almond)
9 L42898 = 171, L45867 = Use hardware kit MK6586 158
10 HS2819 HOSE, filler (pri. & sec.)(opt. almond)
10 L42898 = 2, L45867 = 2
11 RL3086 ROLLER, nose (pri. & sec.)(opt. almond) 4
12A RL6086 ROLLER, chain support (pri. & sec.)(opt. almond)
12A L42898 = 22, L45867 = 22 44
12B MC4086 CAP, roller (pri. & sec.)(opt. almond) 44
13 RL3286 ROLLER, drive (pri. & sec.)(opt. almond)(w/ flange) 4
14 RL3186 ROLLER, drive (pri. & sec.)(opt. almond)(w/o flange) 2
15 L69616 DEFLECTOR, dirt 4
16 L69626 SEAL, primary steel side (right) 1
16 L69646 SEAL, primary steel side (left) 1
17 L69666 SEAL, elevator steel side (right) 1
17 L69686 SEAL, elevator steel side (left) 1
18 L69676 SEAL, conveyor steel side (right) 1
18 L69696 SEAL, conveyor steel side (left) 1
20 L10716 SHIM, primary seal
21 L10726 SHIM, elevator seal
22 L10736 SHIM, conveyor seal
22 H25PB020C MODEL 850-860 HARVESTER
