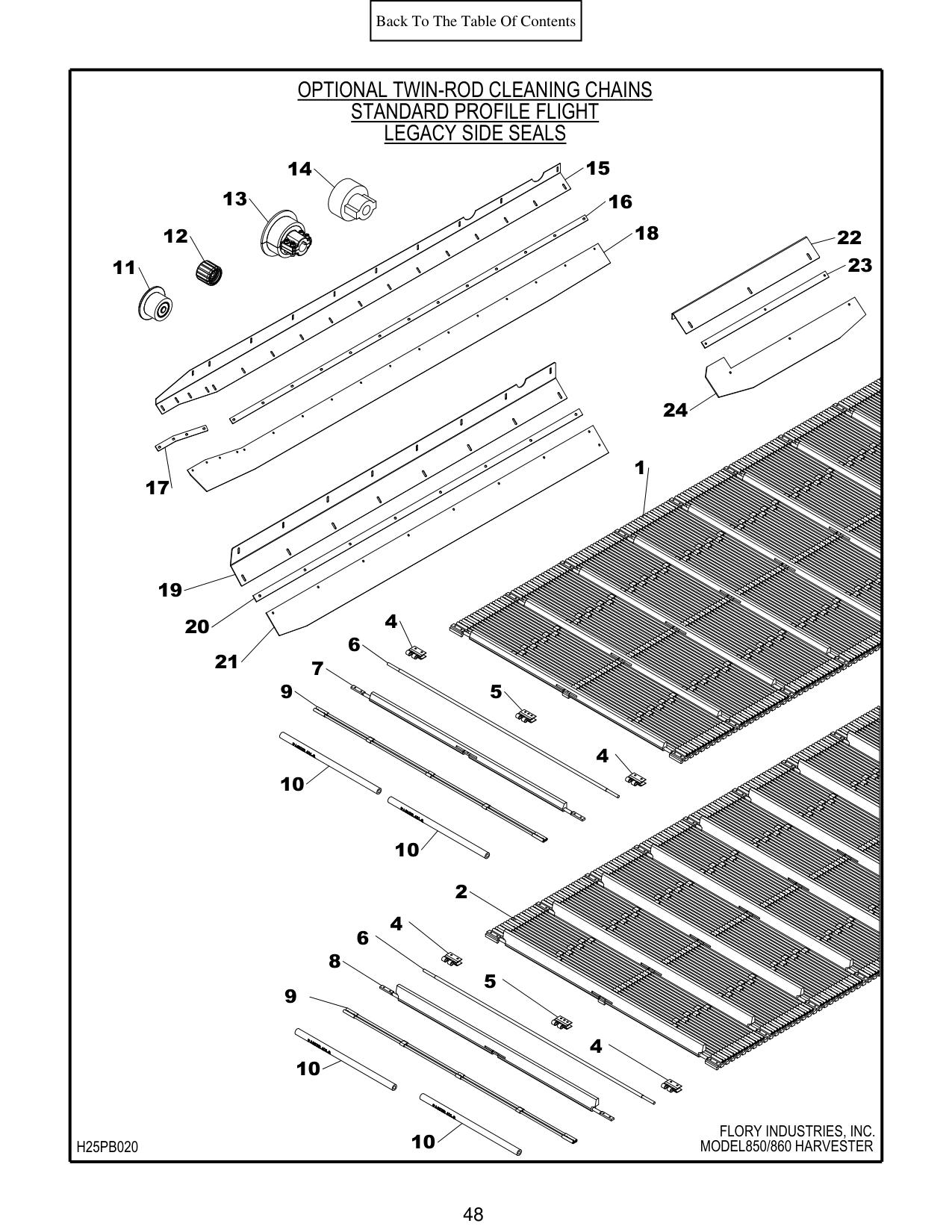

Figure 23 · Flory Flory 850/860 Harvester
Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| 1 | L49816 | TWIN-ROD CHAIN, primary (opt. almond) | 1 |
| 2 | L49856 | TWIN-ROD CHAIN, secondary (opt. almond) | 1 |
| 3 | L12238 | ROD, welded filler (pri. & sec.)(opt. almond)(DO NOT USE!) | |
| 4 | L24116 | CLIP KIT, joint rod (side)(pri. & sec.)(opt. almond) | |
| 4 | L49816 | = 2; L49856 = | 2 |
| 5 | L24126 | CLIP KIT, joint rod (center)(pri. & sec.)(opt. almond) | |
| 5 | L49816 | = 1; L49856 = | 1 |
| 6 | L12636 | CON ROD, chain joint (11mm)(pri. & sec.)(opt. almond)(OBS) | 2 |
| 6 | L12656 | CON ROD, chain joint (11mm)(pri. & sec.)(opt. almond) Note: L12656 replaces L12636 | 2 |
| 7 | L12136 | ROD, flight (primary)(opt. almond)(for L49816) Use hardware kit MK6586 | 19 |
| 8 | L12146 | ROD, flight (secondary)(opt. almond)(for L49856) Use hardware kit MK6586 | 20 |
| 9 | L12126 | TWIN-ROD, replacement (pri. & sec.)(opt. almond) | |
| 9 | L49816 | = 171, L49856 = Use hardware kit MK6586 | 158 |
| 10 | HS2819 | HOSE, filler (pri. & sec.)(opt. almond) | |
| 10 | L49816 | = 2, L49856 = | 2 |
| 11 | RL3086 | ROLLER, nose (pri. & sec.)(opt. almond) | 4 |
| 12A | RL6086 | ROLLER, chain support (pri. & sec.)(opt. almond) | |
| 12A | L49816 | = 22, L49856 = 22 | 44 |
| 12B | MC4086 | CAP, roller (pri. & sec.)(opt. almond) | 44 |
| 13 | RL3286 | ROLLER, drive (pri. & sec.)(w/ flange)(outside) | 4 |
| 14 | RL3186 | ROLLER, drive (pri. & sec.)(w/o flange)(center) | 2 |
| 15 | L65966 | BRACKET, primary seal (right) (opt. almond) (s/n ~2209) | 1 |
| 15 | L65986 | BRACKET, primary seal (left) (opt. almond) (s/n ~2209) | 1 |
| 16 | L64550 | CLAMPSTRIP, primary seal (upper) (s/n ~2209) | 2 |
| 17 | L64986 | CLAMPSTRIP, primary seal (lower)(opt. almond) (s/n ~2209) | 2 |
| 18 | L31836 | SEAL, primary chain side (red poly)(opt. almond) (s/n ~2209) | 2 |
| 19 | L64916 | BRACKET, elevator seal (right) (opt. almond) (s/n ~2209) | 1 |
| 19 | L64936 | BRACKET, elevator seal (left) (opt. almond) (s/n ~2209) | 1 |
| 20 | L64905 | CLAMPSTRIP, elevator seal (s/n ~2209) | 2 |
| 21 | L31086 | SEAL, elevator (red poly)(opt. almond) (s/n ~2209) | 2 |
| 22 | L65926 | BRACKET, conveyor seal (right) (opt. almond) (s/n ~2209) | 1 |
| 22 | L65946 | BRACKET, conveyor seal (left) (opt. almond) (s/n ~2209) | 1 |
| 23 | L64835 | CLAMPSTRIP, conveyor seal (s/n ~2209) | 2 |
| 24 | L31096 | SEAL, conveyor (red poly) (opt. almond) (s/n ~2209) | 2 |
| 24 | H25PB020A | MODEL 850-860 HARVESTER |
