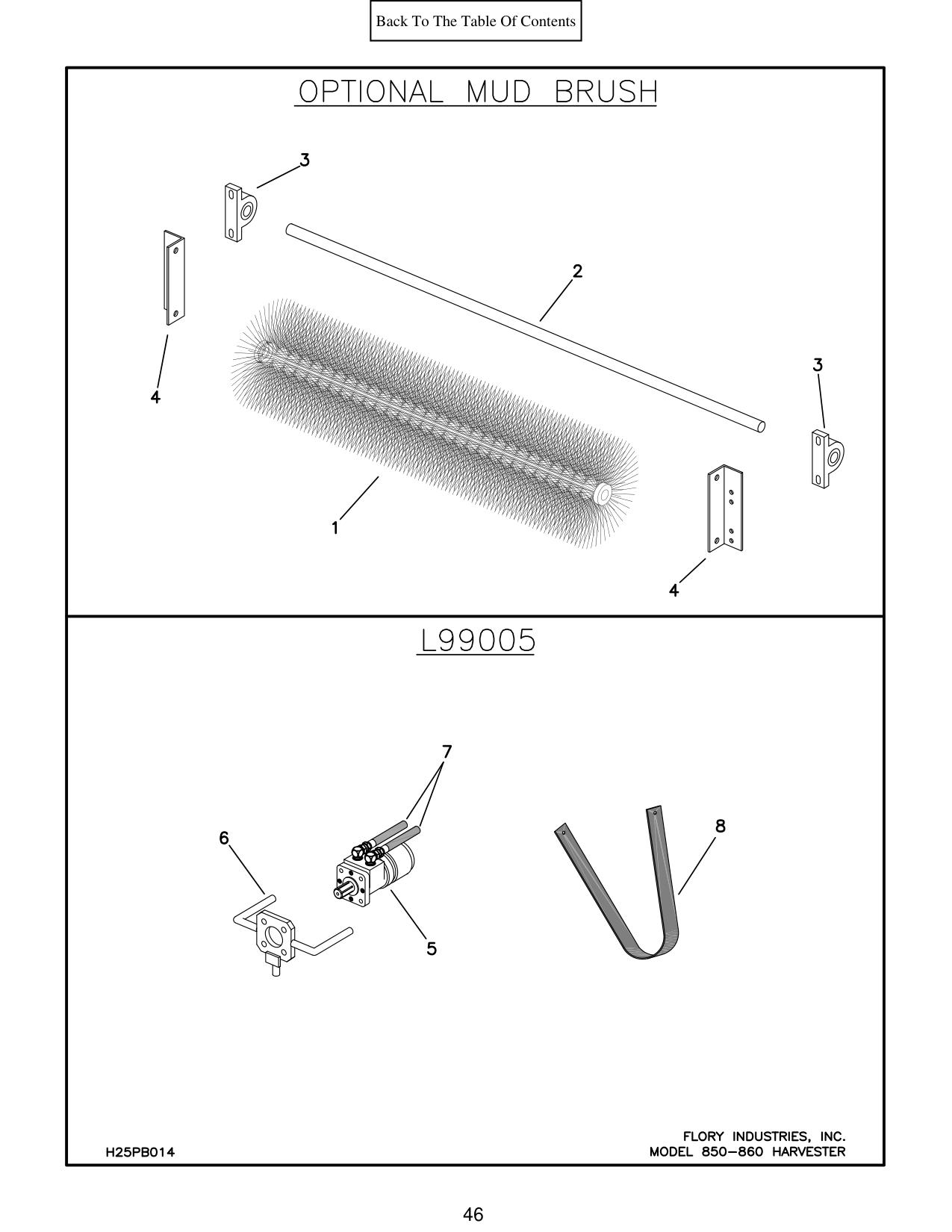

Figure 22 · Flory Flory 850/860 Harvester
Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| OPTIONAL | MUD BRUSH FOR HAZELNUTS | ||
| 1 | RL2010 | BRUSH-mud | 1 |
| 2 | F50708 | SHAFT-brush | 1 |
| 3 | PBC2100 | BEARING | 2 |
| 4 | L69165 | BRACKET-bearing | 2 |
| 4 | L99005 | OPTIONAL AUGER DRIVE KIT | |
| 5A | CM179S | MOTOR-hyd | 1 |
| 5B | WMK14 | SEAL KIT-motor | 1 |
| 6 | F64240 | BRACKET-motor | 1 |
| 7 | H121222 | HOSE (122”) | 2 |
| 8 | F39010 | SLING-hose | 1 |
| 8 | 6601-12-12 | COUPLER-quick (3/4” female) | 1 |
| 8 | 6602-12-12 | COUPLER-quick (3/4” male) | 1 |
| 8 | 0103-8-12 | ADAPTER-hyd. | 2 |
| 8 | 3/8X1-C | USS BOLT | 4 |
| 8 | 3/8LW-C | USS LOCK WASHER | 4 |
| 8 | H25PB014 | MODEL 850-860 HARVESTER |
