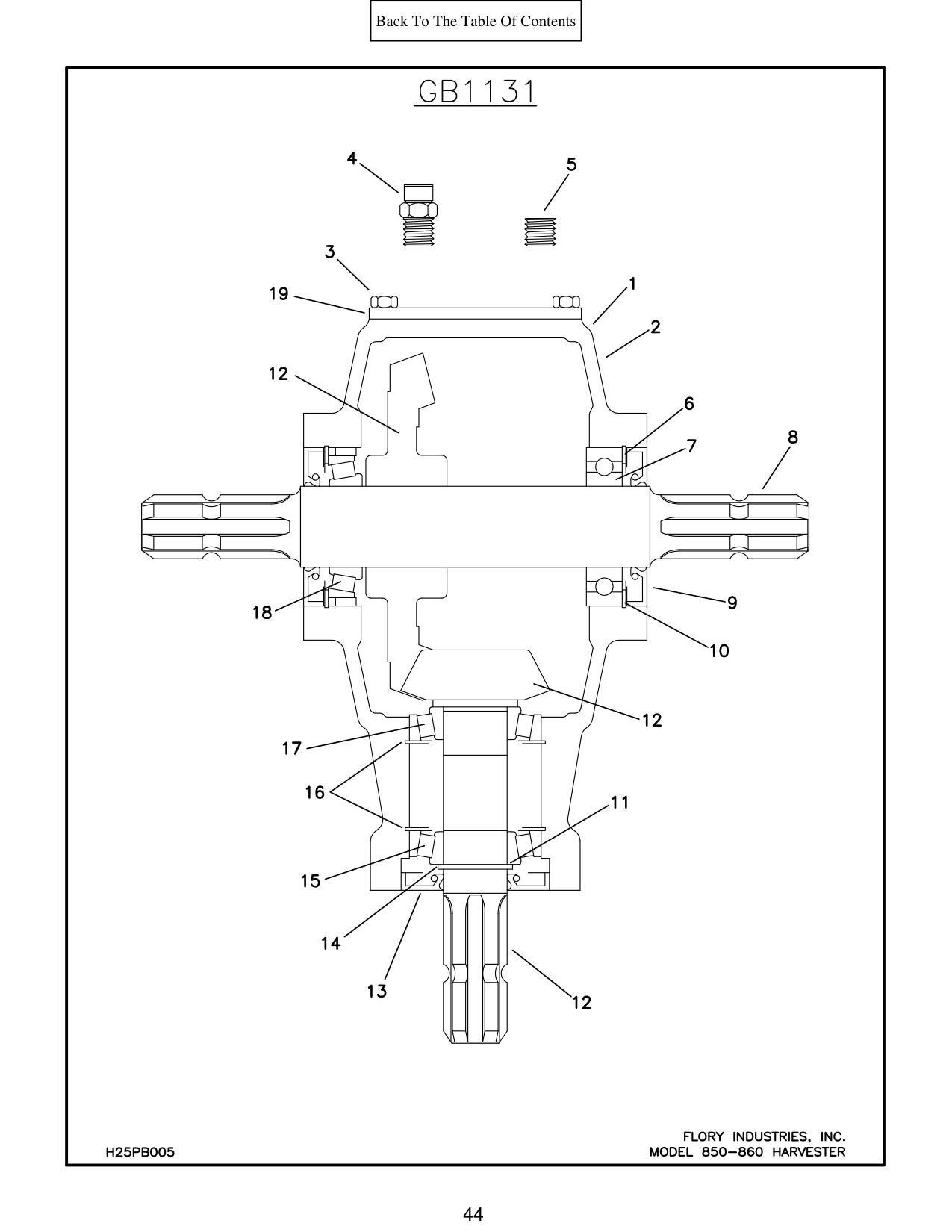

Figure 21 · Flory Flory 850/860 Harvester
Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| 1 | GB1131 | GEARBOX | 1 |
| 2 | HG5010 | HOUSING | 1 |
| 3 | BT5010 | BOLT-housing | 8 |
| 4 | PG5010 | PLUG-vent | 1 |
| 5 | PG5011 | PLUG-oil | 4 |
| 6 | MK2600 | KIT-shim | |
| 7 | BR1011 | BEARING-cross shaft (ball bearing) | 1 |
| 8 | SF5010 | SHAFT-cross | 1 |
| 9 | SL5010 | SEAL-cross shaft | 2 |
| 10 | RN7010 | SNAP RING-cross shaft | 2 |
| 11 | MK2601 | KIT-shim | |
| 12 | SF5011 | SHAFT AND GEARS (pinion shaft and both gears) | 1 |
| 13 | SL5011 | SEAL-pinion shaft | 1 |
| 14 | RN7011 | SNAP RING-pinion shaft | 1 |
| 15 | BR4011 | BEARING-pinion shaft (tapered roller bearing) | 1 |
| 16 | RN7012 | SNAP RING-pinion shaft | 2 |
| 17 | BR4012 | BEARING-pinion shaft (tapered roller bearing) | 1 |
| 18 | BR4013 | BEARING-cross shaft (tapered roller bearing) | 1 |
| 19 | CV5010 | COVER-end cap | 1 |
| 19 | H25PB005 | MODEL 850-860 HARVESTER |
