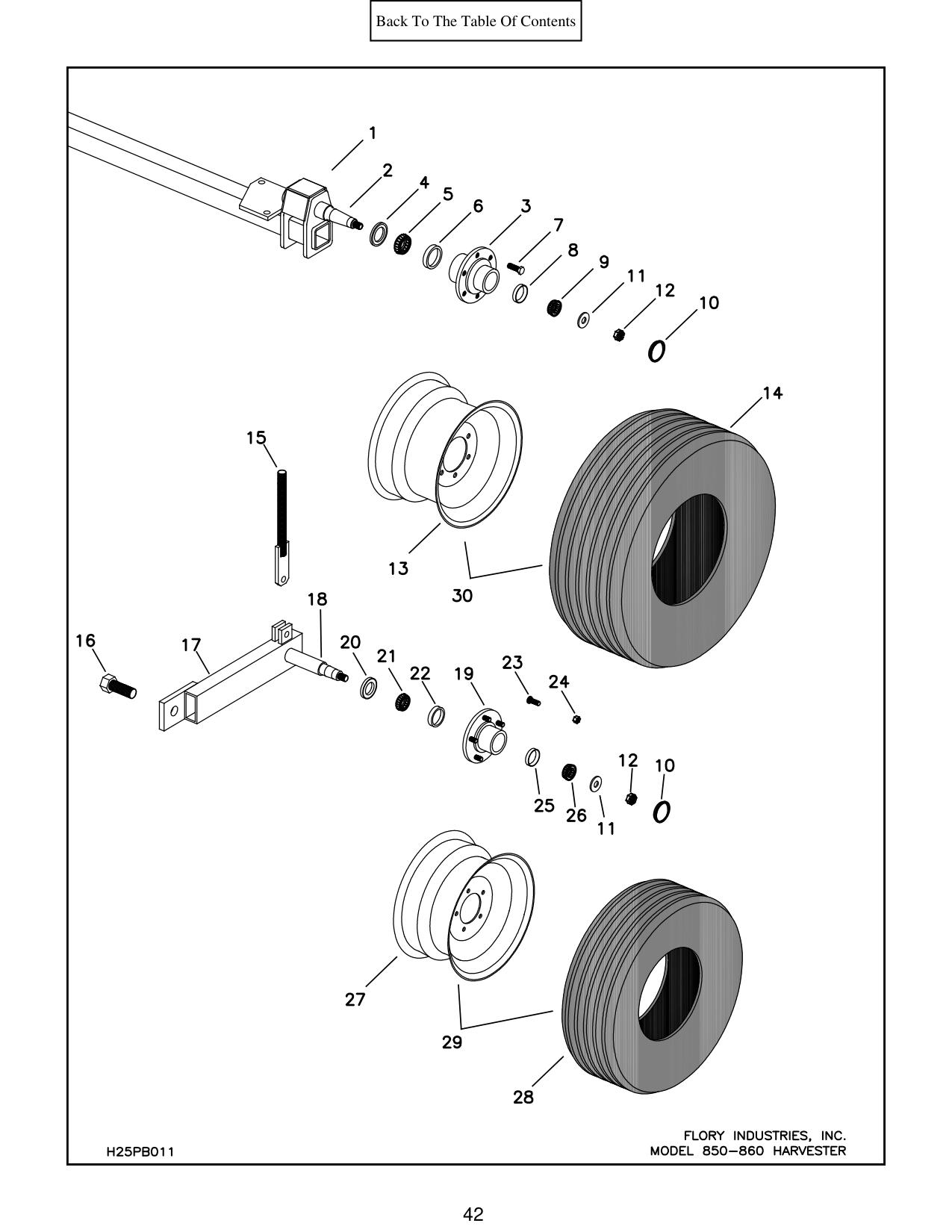

Figure 20 · Flory Flory 850/860 Harvester
Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| 1 | L50640 | AXLE-rear (s/n ~1794)(2102 ~ s/n) | 1 |
| 2 | 106169K | SPINDLE-rear (welded) | 2 |
| 3 | 106686 | HUB-rear wheel (includes ref. nos. 4-10) | 2 |
| 4 | CR20044 | SEAL-hub | 2 |
| 5 | LM501349 | CONE-bearing | 2 |
| 6 | LM501310 | CUP-bearing | 2 |
| 7 | 105144 | BOLT-lug | 12 |
| 8 | LM67010 | CUP-bearing | 2 |
| 9 | LM67048 | CONE-bearing | 2 |
| 10 | 103969 | CAP-dust | 4 |
| 11 | 104581 | WASHER-spindle | 4 |
| 12 | 103289 | NUT-spindle | 4 |
| 13 | 106809-R1 | WHEEL-rear | 2 |
| 14 | 31X1350-15 | TIRE-rear | 2 |
| 15 | K11246 | ROD-depth gauge | 2 |
| 16 | F11008 | BOLT-front spindle | 2 |
| 17 | F60408 | SPINDLE ASSEMBLY-front (right) | 1 |
| 17 | F60468 | SPINDLE ASSEMBLY-front (left) | 1 |
| 18 | 105708K | SPINDLE-front (welded) | 2 |
| 19 | 104682 | HUB-front wheel (includes ref. nos. 20-26, 10) | 2 |
| 20 | CR17617 | SEAL-hub | 2 |
| 21 | LM48548 | CONE-bearing | 2 |
| 22 | LM48510 | CUP-bearing | 2 |
| 23 | 5081 | BOLT-lug | 10 |
| 24 | D3055 | NUT-lug | 10 |
| 25 | LM67010 | CUP-bearing | 2 |
| 26 | LM67048 | CONE-bearing | 2 |
| 27 | 106482 | WHEEL-front | 2 |
| 28 | 27X950-15 | TIRE-front | 2 |
| 29 | TW3150-2 | ASSEMBLY, tire/wheel front | 2 |
| 30 | TW3150-R1 | ASSEMBLY, tire/wheel rear | 2 |
| 30 | H25PB011 | MODEL 850-860 HARVESTER |
