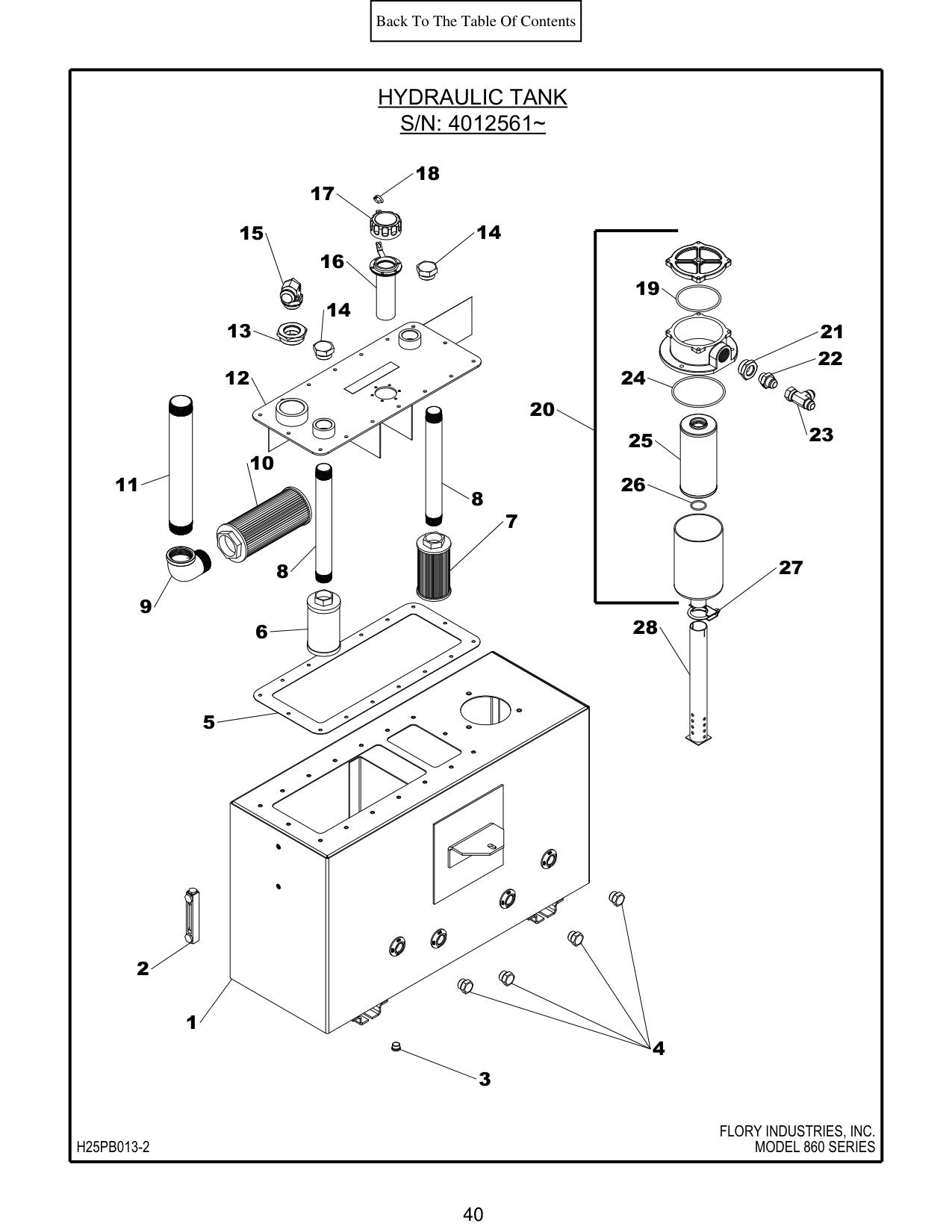

Figure 19 · Flory Flory 850/860 Harvester
Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| 1 | L67405 | OIL TANK | 1 |
| 2 | LX0510 | OIL GAUGE | 1 |
| 3 | PG7033 | MAGNETIC DRAIN PLUG | 1 |
| 4 | 05CP-12 | HEX PLUG | 4 |
| 5 | GS8080 | OIL TANK GASKET | 1 |
| 6 | FL0085 | RETURN DIFFUSER | 1 |
| 7 | FL5104-R1 | STRAINER, SUCTION | 1 |
| 8 | FT4149 | 1-1/4" X 14" SCH. 40 BLACK PIPE | 2 |
| 9 | FT4060 | ELBOW, 2" STREET | 1 |
| 10 | FL5200 | SUCTION STRAINER | 1 |
| 11 | FT4150 | 2" X 16" SCH. 40 BLACK PIPE | 1 |
| 12 | F20348 | OIL TANK TOP | 1 |
| 13 | 32-20 | F5OG5-S REDUCER, ORB TO ORB | 1 |
| 14 | 20 | P5ON-S ORB CAP | 2 |
| 15 | 2503-20-20 | MALE ORB-JIC 90 | 1 |
| 16 | MM0113 | STRAINER ASSY. FLANGE | 1 |
| 17 | MC6113 | BREATHER CAP | 1 |
| 18 | 316SH | SNAP 3/16" HOOK | 1 |
| 19 | 347 | O-RING | 1 |
| 20 | DRL4-ASN | FILTER, SUCTION/RETURN | 1 |
| 21 | 0510-20-12 | ADAPTER, HYD NOT INCLUDED WITH #20 | 1 |
| 22 | 0503-12-12 | STRAIGHT THRD. CONNECTOR NOT INCLUDED WITH #20 | 1 |
| 23 | 063T-12-12 | SWIVEL NUT RUN TEE NOT INCLUDED WITH #20 | 1 |
| 24 | 354 | O-RING | 1 |
| 25 | D10180AN | OIL FILTER | 1 |
| 26 | 321 | O-RING | 1 |
| 27 | CA3112 | MUFFLER CLAMP 1.75" | 1 |
| 28 | F10038 | DIFFUSER | 1 |
| 28 | H25PB013-2 | MODEL 860 SERIES |
