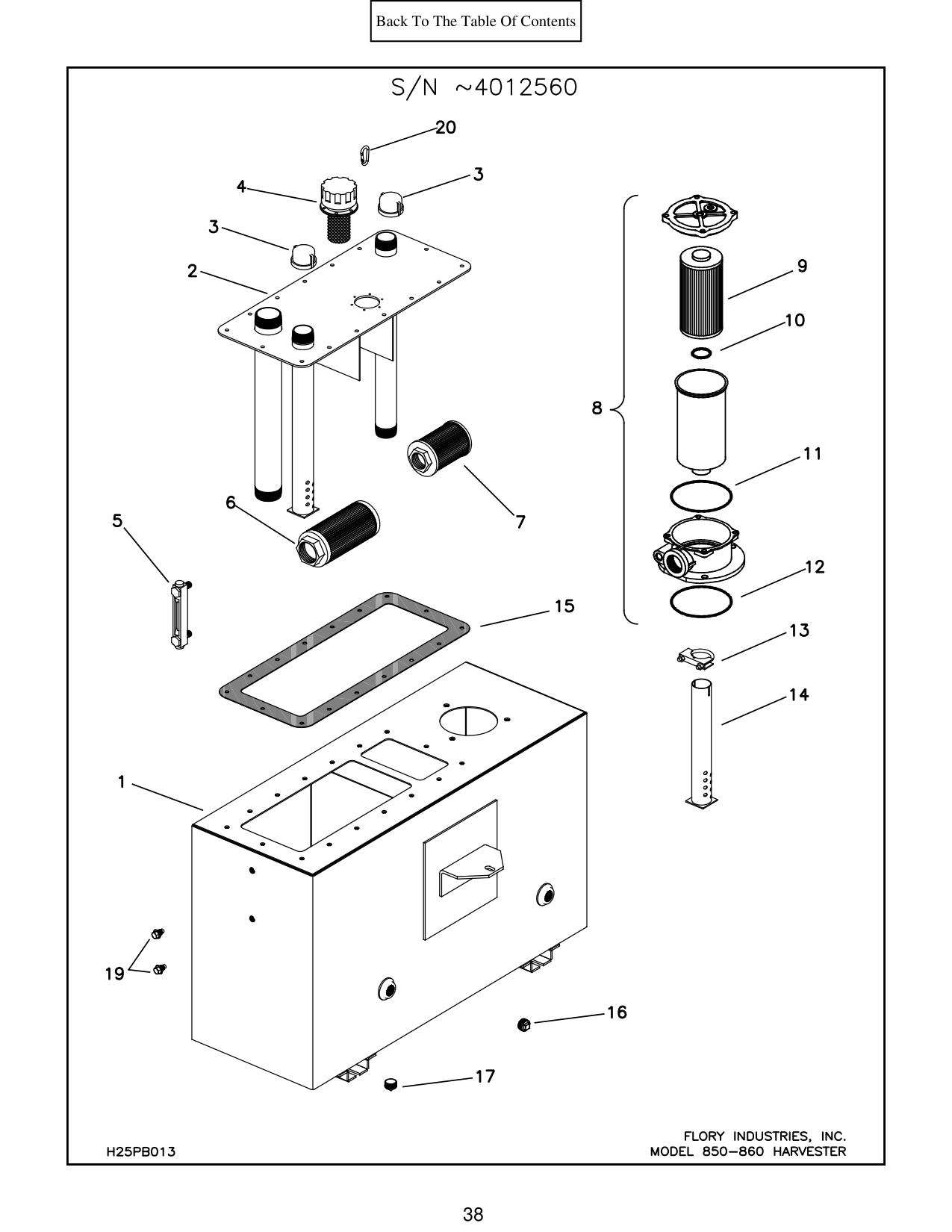

Figure 18 · Flory Flory 850/860 Harvester
Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| 1 | L67205 | TANK-oil | 1 |
| 2 | F20048 | COVER-oil tank | 1 |
| 3 | FT4065 | CAP-pipe (1.25”) | 2 |
| 4A | SP113B | FILLER AND CAP-oil tank (s/n ~2101) | 1 |
| 4A | MC6113 | CAP-breather, oil tank (2102 - s/n) | 1 |
| 4A | MM0113 | FILLER-strainer, oil tank (2102 - s/n) | 1 |
| 4B | AB10003WP | GASKET-filler (s/n ~2101) | 1 |
| 4C | GS0113 | GASKET-cap (s/n ~2101) | 1 |
| 5A | LX0510 | GAUGE-oil tank | 1 |
| 5B | 25010 | O RING-oil tank | 2 |
| 6A | FL5200 | STRAINER-suction | 1 |
| 6B | FT4060 | ELBOW, street -2” (not shown) | 1 |
| 7A | FL5104 | STRAINER-suction | 1 |
| 7B | FT4058 | ELBOW, street-1.25” (not shown) | 1 |
| 8 | DRL4-ASN | FILTER ASSEMBLY-return | 1 |
| 9 | D10180AN | ELEMENT-return | 1 |
| 10 | 321 | O RING-element (lower) | 1 |
| 11 | 347 | O RING-canister (upper) | 1 |
| 12 | 354 | O RING-cap and main body | 2 |
| 13 | CA3112 | CLAMP-pipe | 1 |
| 14 | F10038 | DIFFUSER-oil return | 1 |
| 15 | GS8080 | GASKET-tank cover | 1 |
| 16 | FT4021 | PLUG-tank (3/4”) | 4 |
| 17 | PG7105 | PLUG-magnetic tank | 1 |
| 18 | L67205-AY1 | ASSEMBLY, oil tank (includes items 1-17) | 1 |
| 19 | 704-1064 | PLUG, oil drain (s/n ~ 1986) | 2 |
| 20 | 316SH | HOOK, snap 3/16" | 1 |
| 20 | H25PB013 | MODEL 850-860 HARVESTER |
