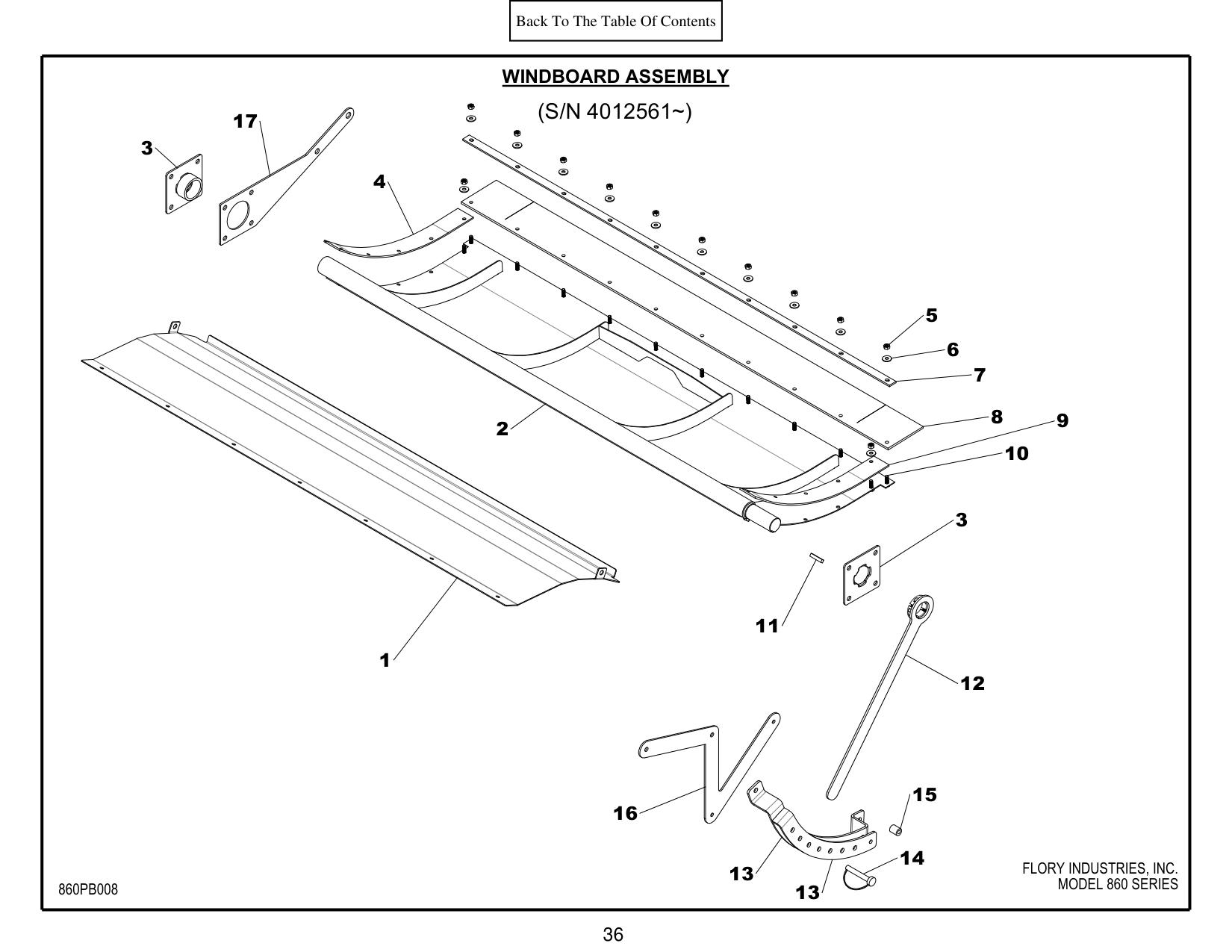

Figure 17 · Flory Flory 850/860 Harvester
Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| 1 | L25026 | FIXED WINDBOARD | 1 |
| 2 | L25016 | CURVED WINDBOARD | 1 |
| 3 | L60107 | WINDBOARD PIVOT | 2 |
| 4 | L31407 | WINDBOARD SIDE SEAL | 1 |
| 6 | 1/4FW-C | FLAT WASHER | 20 |
| 7 | F6012 | CURTAIN CLAMP | 1 |
| 8 | L31130 | SEAL, PRIMARY RETURN | 1 |
| 9 | L31407 | WINDBOARD SIDE SEAL | 1 |
| 10 | 1/4 X 3/4-C | USS BOLT | 20 |
| 11 | A1017 | KEY, 1/4 X 1-1/4 | 1 |
| 12 | L10506 | HANDLE | 1 |
| 13 | L17206 | HANDLE STOP | 1 |
| 14 | PN6006 | 3/8 PTO PIN | 1 |
| 15 | SK1118 | SPACER | 1 |
| 15 | WINDBOARD | ASSEMBLY RETROFIT KIT (L98116) | |
| 16 | L89026 | SET BAR TEMPLATE | 1 |
| 17 | L89016 | WINDBOARD TEMPLATE | 1 |
| 17 | 860PB008 | MODEL 860PB008 |
