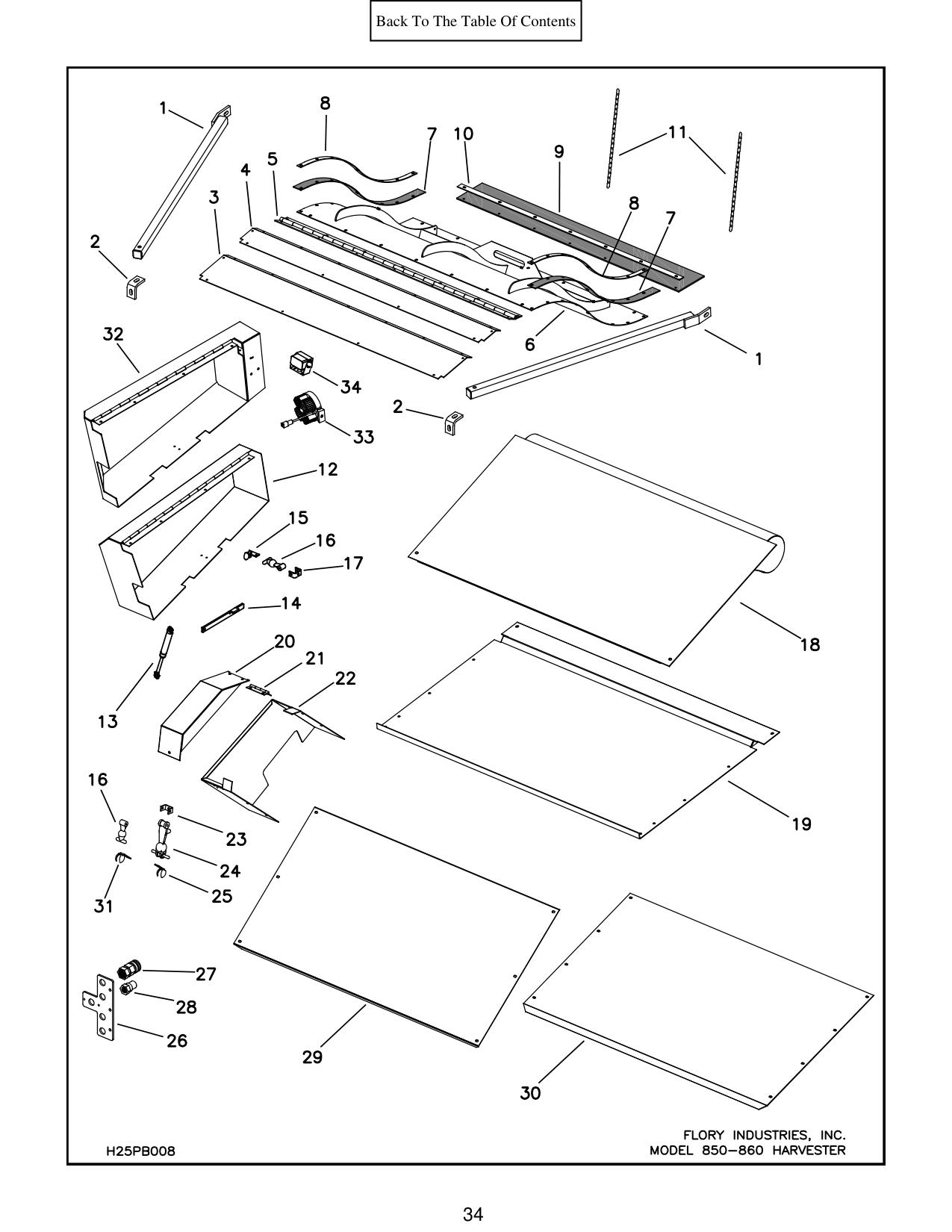

Figure 16 · Flory Flory 850/860 Harvester
Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| 1 | L60300 | DEFLECTOR-branch | 2 |
| 2 | L60340 | BRACKET-deflector | 2 |
| 3 | L20205 | PLATE-inlet tube (almonds)(s/n ~1238) | 1 |
| 4 | L64320 | PLATE-inlet tube (walnuts / pecans)(s/n ~1238) | 1 |
| 5 | L27100 | HINGE-inlet tube door (s/n ~4012560) | 1 |
| 6 | L27080R | DOOR-inlet tube (s/n ~4012560) | 1 |
| 7 | L34130R | SEAL-door (s/n ~4012560) | 2 |
| 8 | L64305 | CLAMPSTRIP-seal (s/n ~4012560) | 2 |
| 9 | L34120 | SEAL-door (s/n ~4012560) | 1 |
| 10 | L64700 | CLAMPSTRIP-seal (s/n ~4012560) | 1 |
| 11 | CH2024 | CHAIN-door (2/0 x 24”) (s/n ~4012560) | 2 |
| 12 | L22175 | SHIELD-conveyor drive (s/n ~1238) | 1 |
| 12 | L20815 | SHIELD-conveyor drive (s/n 1247-1283) | 1 |
| 12 | L20845 | SHIELD-conveyor drive (s/n 1292-1608) | 1 |
| 12 | L20855 | SHIELD-conveyor drive (s/n 1624-2169) | 1 |
| 13 | 4002 | GAS SPRING-shield prop (s/n ~1238) | 1 |
| 14 | L60085 | ARM-shield prop (s/n 1247~) | 1 |
| 15 | 28A382 | LATCH-rubber hook (s/n 1247~) | 1 |
| 16 | 71D1376 | HOOK-rubber (s/n 1247~) | |
| 17 | 277A801 | ANCHOR-rubber hook | 1 |
| 18 | L63470 | DAMPER-inlet tube | 1 |
| 19 | L20835 | COVER-conveyor | 1 |
| 20 | L20415 | SHIELD-beater drive (upper) | 1 |
| 21 | L27010 | HINGE-beater drive shields | 1 |
| 22 | L20405 | SHIELD-beater drive (lower) | 1 |
| 23 | 277A801 | ANCHOR-rubber hook | 1 |
| 24 | 68D842 | HOOK-rubber | |
| 25 | 28A382 | LATCH-rubber hook | |
| 26 | L67775 | MOUNT-quick coupler | 1 |
| 27 | 6601-12-12 | COUPLER-quick (3/4” female) | 1 |
| 28 | 6602-12-12 | COUPLER-quick (3/4” male) | 1 |
| 29 | L60200 | SHIELD-elevator (lower)(all crops) | 1 |
| 30 | L20825 | COVER-conveyor (lower)(almonds) | 1 |
| 31 | 028561 | LATCH-rubber hook | |
| 32 | L20856 | SHIELD-conveyor drive (s/n 2185~) | 1 |
| 33 | LT2045 | LIGHT-4.5" round work (s/n 2436~) | 1 |
| 34 | MM1127 | CAMERA (optional) | 1 |
| 35 | CB0033 | CABLE-33' camera (not shown) | 1 |
| 36 | MM1027 | MONITOR (not shown) | 1 |
| 37 | BA1025 | PEDESTAL-monitor (not shown) | 1 |
| 37 | H25PB008 | MODEL 850-860 HARVESTER |
