Figure 15 · Flory Flory 850/860 Harvester

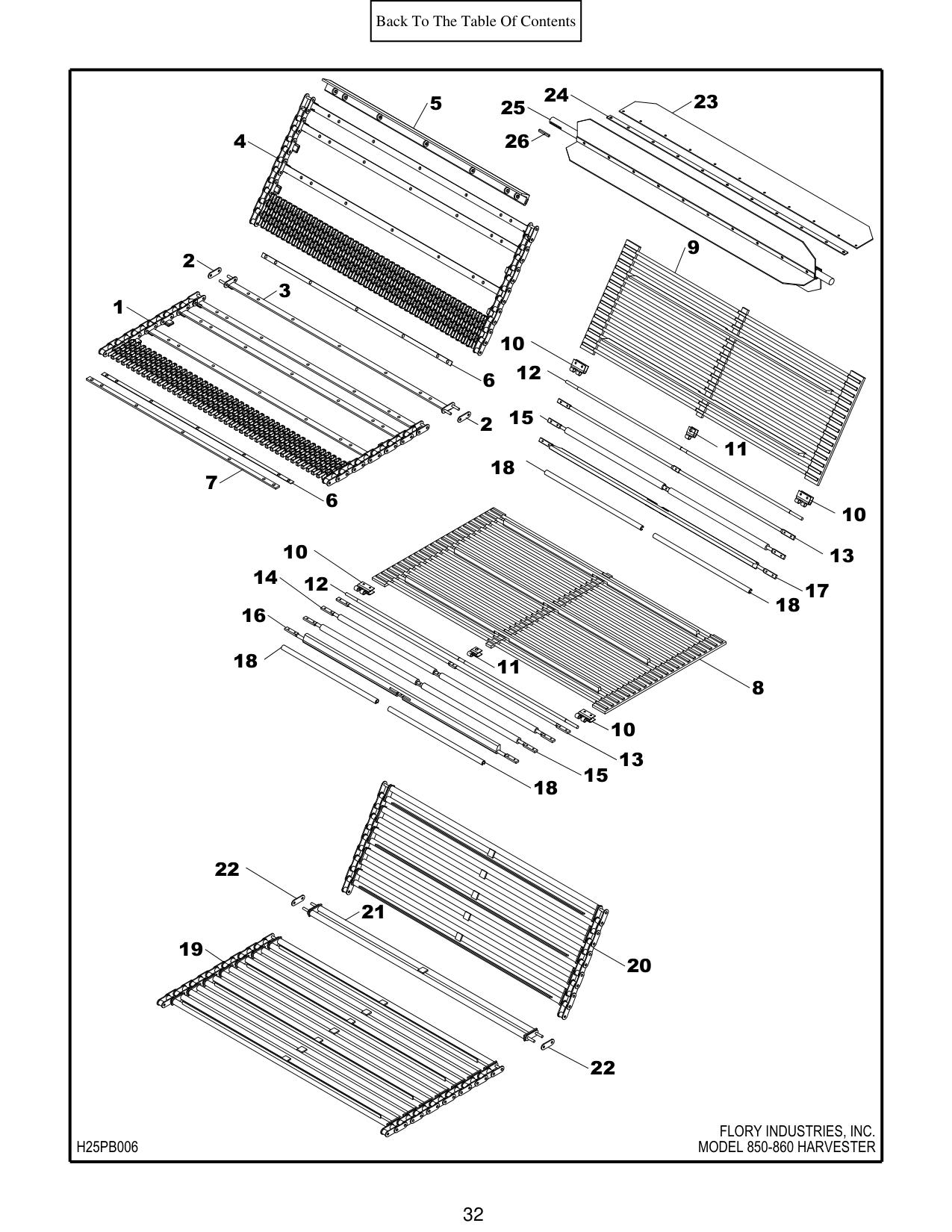

Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| 16 | L12120 | BAR, bar chain (primary)(cleated) | |
| 17 | F12138 | BAR, bar chain (secondary)(cleated) | |
| 18A | F40018 | FILLER, bar (split pvc)(5/8” x 19.25”) | |
| 18A | L42800 | = 190, L42875 = 318, L42886 = | 160 |
| 18B | L40005 | FILLER, bar (rubber tube)(7/8” x 19.25”) | |
| 18B | L42815 | = 2, L42855 = | 2 |
| 19 | L49705 | TUBE CHAIN, primary (walnut) | 1 |
| 20 | L49775 | TUBE CHAIN, secondary (walnut) | 1 |
| 21 | L19005 | CONNECTOR, tube chain (primary & secondary) | 2 |
| 22 | CH5557 | CONNECTOR LINK | |
| 23 | L30180 | FLAP, beater | 2 |
| 23 | L30190 | FLAP, beater | 2 |
| 24 | F64718 | CLAMPSTRIP, beater flap (L30180) | 2 |
| 24 | F64708 | CLAMPSTRIP, beater flap (L30190) | 2 |
| 25 | F50428 | SHAFT, beater | 1 |
| 26 | A1024 | KEY, 1/4 X 2 | 1 |
| 27 | MK6480 | KIT, bar chain hardware (not shown) | |
| 27 | H25PB006 | MODEL 850-860 HARVESTER |
