Figure 14 · Flory Flory 850/860 Harvester

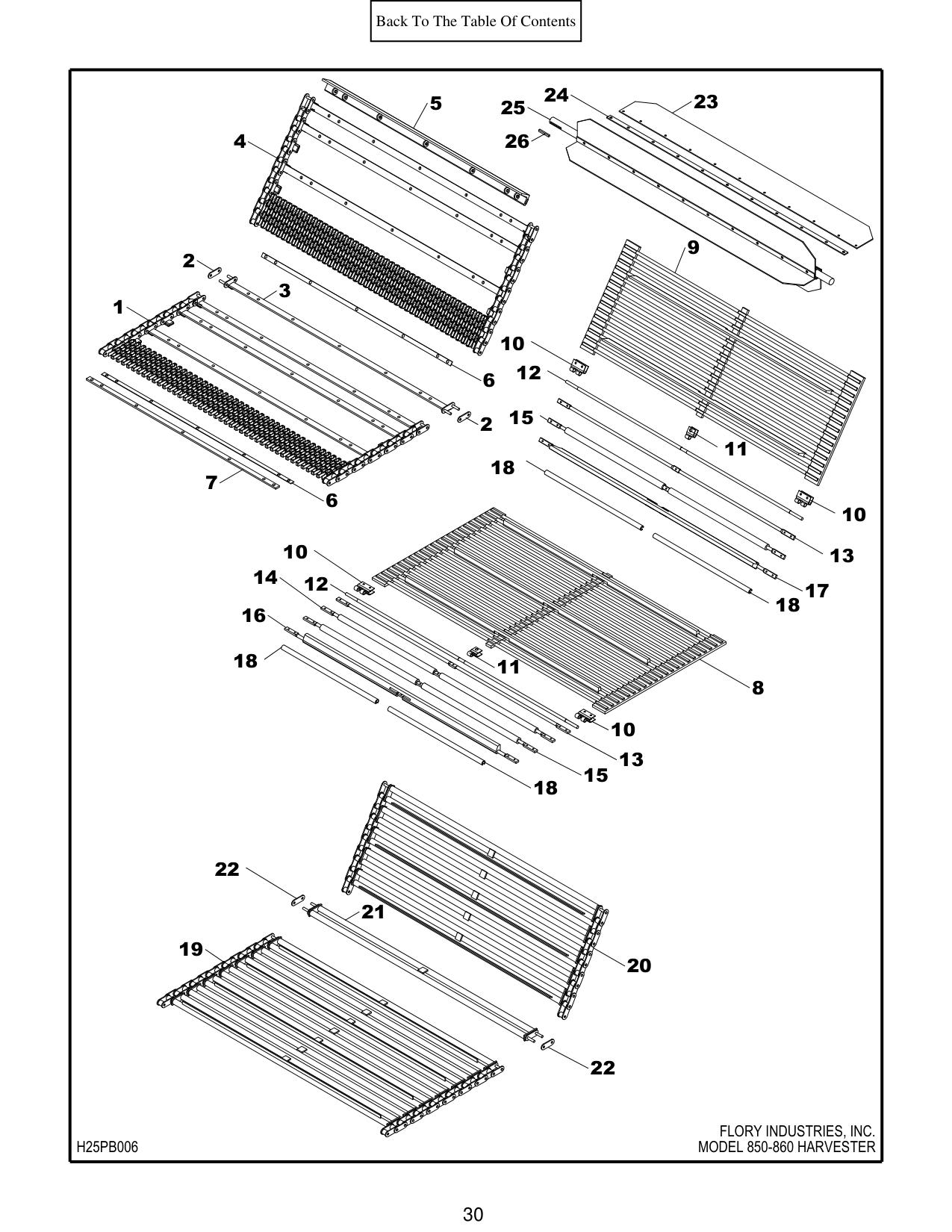

Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| 1A | L41825 | WIRE CHAIN, flat wire pri. (complete)(almond)(standard) | 1 |
| 1B | L41835 | WIRE CHAIN, flat wire pri. (chain only)(almond)(standard) | 1 |
| 1C | L61145 | CARCASS, chain (L41825)(almond) | 1 |
| 1D | L11675 | WIRE, lacing (L41825) | 1 |
| 2 | CH5557 | CONNECTOR LINK, carcass (side) | |
| 3 | L62065 | STRAP, carcass Primary chain = 32, Secondary chain = | 30 |
| 4A | L41875 | WIRE CHAIN, flat wire sec. (complete)(almond)(standard) | 1 |
| 4B | L41885 | WIRE CHAIN, flat wire sec. (chain only)(almond)(standard) | 1 |
| 4C | L61645 | CARCASS, chain (L41875)(almond) | 1 |
| 4D | L11675 | WIRE, lacing (L41875) | 1 |
| 5 | L30015 | FLITE, wire chain "Rubber" | 30 |
| 6 | L62075 | SPACER, belt (almond)(primary and elevator) | 62 |
| 7 | L62070 | CLAMP STRIP, chain (L41825) | 32 |
| 8 | L42800 | BAR CHAIN, primary (28mm)(pecan, hzl.)(half fillers) | 1 |
| 8 | L42805 | BAR CHAIN, primary (28mm)(all fillers) | 1 |
| 8 | L43200 | BAR CHAIN, primary (32mm)(walnut)(no fillers) | 1 |
| 8 | L42815 | BAR CHAIN, primary (28mm)(opt. almond)(all tubes) | 1 |
| 8 | L42835 | BAR CHAIN, primary (28mm)(macadamia)(no fillers) | 1 |
| 9 | L42855 | BAR CHAIN, sec. (28mm)(opt. almond)(all tubes) | 1 |
| 9 | L42875 | BAR CHAIN, sec. (28mm)(hazelnut)(all fillers) | 1 |
| 9 | L42886 | BAR CHAIN, sec. (28mm)(pecan)(half fillers) | 1 |
| 9 | L43275 | BAR CHAIN, sec. (32mm)(walnut)(no fillers)(22 flights) | 1 |
| 9 | L43275-2 | BAR CHAIN, sec. (32mm)(walnut)(no fillers)(31 flights) | 1 |
| 9 | L42865 | BAR CHAIN, sec. (28mm)(macadamia)(no fillers) | 1 |
| 10 | F24678 | CLIP KIT, joint rod (side)(28mm pitch)(pri. & sec.) | 4 |
| 10 | F24688 | CLIP KIT, joint rod (side)(32mm pitch)(pri. & sec.) | 4 |
| 11 | F24658 | CLIP KIT, joint rod (center)(28mm pitch)(pri. & sec.) | 2 |
| 11 | F24668 | CLIP KIT, joint rod (center)(32mm pitch)(pri. & sec.) | 2 |
| 12 | F12688 | CON ROD, bar chain joint (primary & secondary) | 2 |
| 13 | F12128 | BAR, bar chain (pri. & sec.)(pec.,hzl.,wal.,mac.) | |
| 14 | L12155 | BAR, bar chain (primary)(opt. almond)(w/ 13/16" tubes) | |
| 14 | L42815 | = | 76 |
| 15 | L12165 | BAR, bar chain (pri. & sec.)(opt. almond)(w/ 7/8" tubes) | |
| 15 | L42815 | = 94, L42855 = | 158 |
| 15 | H25PB006 | MODEL 850-860 HARVESTER | |
| 16 | L12120 | BAR, bar chain (primary)(cleated) | |
| 17 | F12138 | BAR, bar chain (secondary)(cleated) | |
| 18A | F40018 | FILLER, bar (split pvc)(5/8” x 19.25”) | |
| 18A | L42800 | = 190, L42875 = 318, L42886 = | 160 |
| 18B | L40005 | FILLER, bar (rubber tube)(7/8” x 19.25”) | |
| 18B | L42815 | = 2, L42855 = | 2 |
| 19 | L49705 | TUBE CHAIN, primary (walnut) | 1 |
| 20 | L49775 | TUBE CHAIN, secondary (walnut) | 1 |
| 21 | L19005 | CONNECTOR, tube chain (primary & secondary) | 2 |
| 22 | CH5557 | CONNECTOR LINK | |
| 23 | L30180 | FLAP, beater | 2 |
| 23 | L30190 | FLAP, beater | 2 |
| 24 | F64718 | CLAMPSTRIP, beater flap (L30180) | 2 |
| 24 | F64708 | CLAMPSTRIP, beater flap (L30190) | 2 |
| 25 | F50428 | SHAFT, beater | 1 |
| 26 | A1024 | KEY, 1/4 X 2 | 1 |
| 27 | MK6480 | KIT, bar chain hardware (not shown) | |
| 27 | H25PB006 | MODEL 850-860 HARVESTER |
