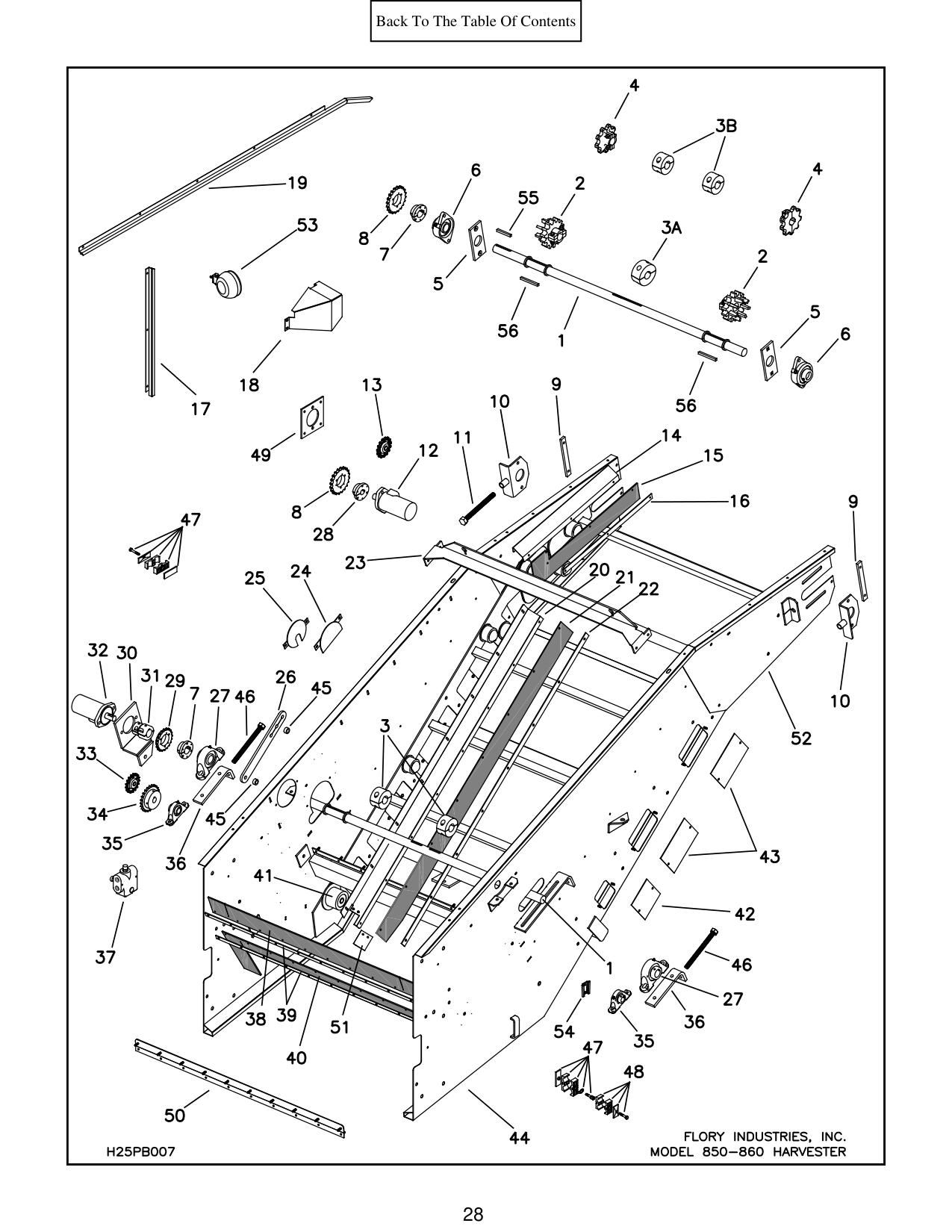

Figure 13 · Flory Flory 850/860 Harvester
Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| 32B | HM1149-K | SEAL KIT-motor (HM1149) | 1 |
| 32B | HM2149-K | SEAL KIT-motor (HM2149) | 1 |
| 33 | AG2416 | IDLER-chain | 1 |
| 34 | 50BS24100 | SPROCKET-beater driven | 1 |
| 35 | PBC2100 | BEARING-beater shaft | 2 |
| 36 | L61340 | BRACKET-bearing take up | 2 |
| 37 | VL3850 | VALVE-flow control | 1 |
| 38 | L31130 | SEAL-primary chain return | 1 |
| 39 | F6012 | CLAMPSTRIP-seal | 2 |
| 40 | L31575 | SEAL-lower elev. (s/n 1434 ~ ) | 1 |
| 40 | L31516 | SEAL-lower elev. Twin rod (s/n 2210 ~) | 1 |
| 41 | RL1080 | ROLLER-nose (lower elevator) | 2 |
| 42 | L20090 | COVER-elevator access | |
| 43 | F20078 | COVER-elevator access | 4 |
| 44 | L68705 | ELEVATOR/CONVEYOR-(s/n ~1334) | 1 |
| 44 | L68715 | ELEVATOR/CONVEYOR-(s/n 1343-1608) | 1 |
| 44 | L68725 | ELEVATOR-(s/n 1624~) | 1 |
| 45 | L13015 | BUSHING-torque arm (s/n 1247~) | 2 |
| 46 | F10728 | REDI BOLT-bearing take up | 2 |
| 47 | CA6012-2 | CLAMP-hose (3/4” twin) | 3 |
| 48 | CA6008-2 | CLAMP-hose (1/2” twin) | 1 |
| 49 | L67805 | MOUNT-motor | 1 |
| 50 | L65405 | BRACKET-seal (L41875)(s/n 1343-1362) | 1 |
| 51 | L20615 | COVER-elevator side seal bracket | 2 |
| 52 | L68735 | CONVEYOR-low position (s/n 1624~) | 1 |
| 52 | L68745 | CONVEYOR-high position (s/n 1624~) | 1 |
| 53 | 88176 | LIGHT-rear (optional light kit)(s/n ~2169) | 1 |
| 54 | 112201 | SOCKET, SMV mount (s/n 2185~) | 1 |
| 55 | A1004 | KEY, 3/8 X 3 | 1 |
| 56 | A1001 | KEY, 3/8 X 4 | 2 |
| 56 | H25PB007 | MODEL 850-860 HARVESTER |
