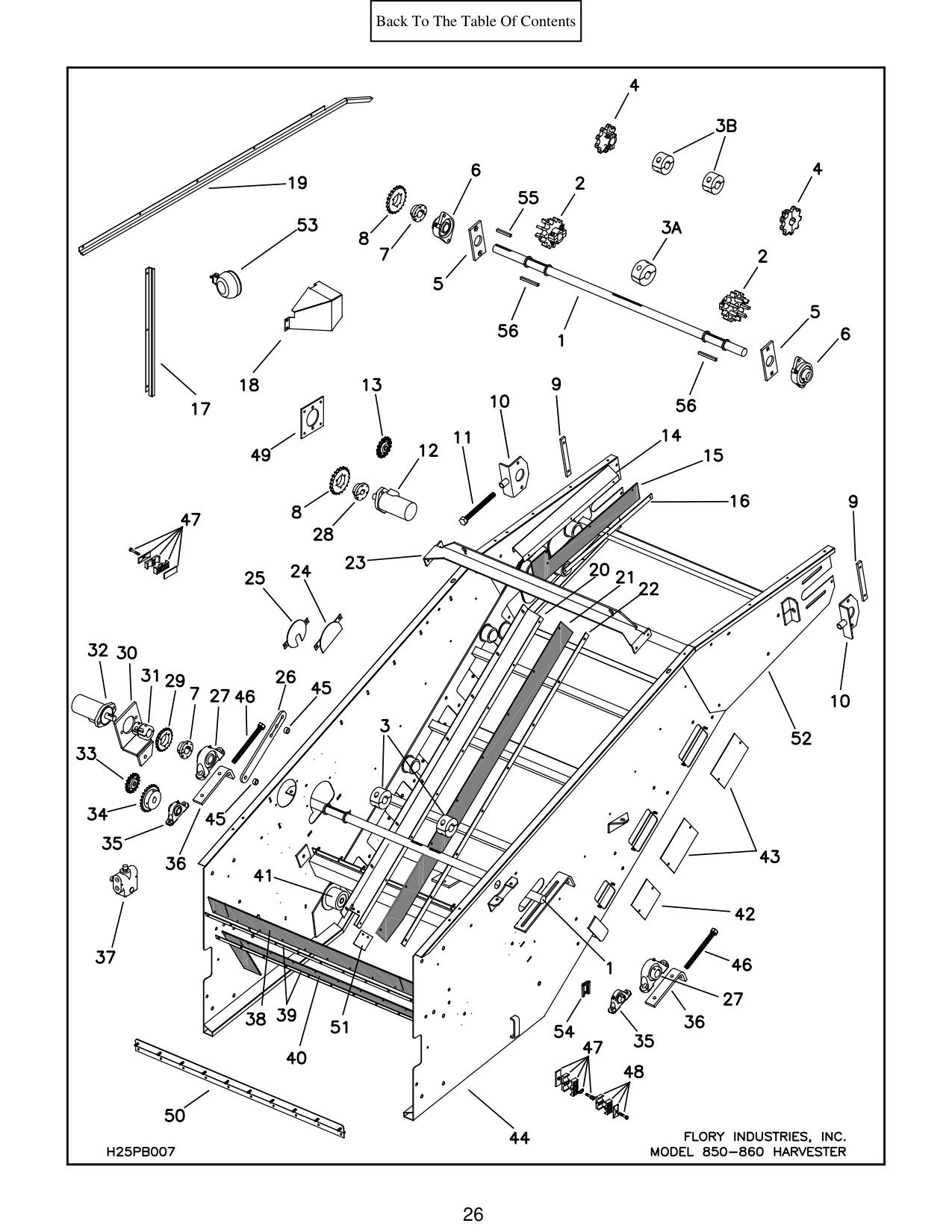

Figure 12 · Flory Flory 850/860 Harvester
Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| 1 | L52040 | SHAFT-primary & secondary chain drive | 2 |
| 2 | 14T28MM | SPROCKET-durakast (14 tooth, 28mm)(bar chain)(pecans/hzlnts.) | 4 |
| 2 | 12T32MM | SPROCKET-durakast (12 tooth, 32mm)(bar chain)(walnuts) | 4 |
| 2 | 14T28MMP | SPROCKET-poly (14 tooth,28mm)(bar chain)(pecans/hzlnts.) | 4 |
| 2 | 12T32MMP | SPROCKET-poly (12 tooth, 32mm)(bar chain)(walnuts) | 4 |
| 3A | F32928R | ROLLER-support (bar chain) | 2 |
| 3B | L32920 | ROLLER-support (wire chain) | 4 |
| 4 | SR5509 | SPROCKET-split (wire chain) | 4 |
| 5 | F64008 | PLATE-bearing | 2 |
| 6 | FLC2108 | BEARING | 2 |
| 7 | SDS108 | BUSHING-sprocket | 2 |
| 8 | 60SDS20 | SPROCKET-conveyor drive | 2 |
| 9 | L66225 | STRAP-conveyor | 2 |
| 10 | F64018 | BRACKET-take up bearing | 2 |
| 11 | F10728 | REDI BOLT-bearing take up | 2 |
| 12A | HM1149 | MOTOR-secondary chain (Eaton)(s/n ~1246)(may use HM2149) | 1 |
| 12A | HM2149 | MOTOR-secondary chain (Danfoss)(s/n 1247~) | 1 |
| 12B | HM1149-K | SEAL KIT-motor (HM1149) | 1 |
| 12B | HM2149-K | SEAL KIT-motor (HM2149) | 1 |
| 13 | AG2417 | IDLER-sprocket | 1 |
| 14 | L65925 | BRACKET-conveyor seal | 2 |
| 15 | L31095 | SEAL-conveyor (rubber) | 2 |
| 16 | L64835 | CLAMPSTRIP-conveyor seal | 2 |
| 17 | L19035 | RACEWAY-light & camera wire (optional light kit)(s/n ~2169) | 1 |
| 18 | L21015 | GUARD-light (optional light kit)(s/n ~2169) | 1 |
| 19 | L19055 | RACEWAY-light & camera wire (optional light kit)(s/n ~2169) | 1 |
| 20 | L64915 | BRACKET-elevator seal (right) | 1 |
| 20 | L64935 | BRACKET-elevator seal (left) | 1 |
| 21 | L31085 | SEAL-elevator (rubber) | 2 |
| 22 | L64905 | CLAMPSTRIP-elevator seal | 2 |
| 23 | L60455 | ANCHOR-inlet tube chain | 1 |
| 24 | L20080 | COVER-elevator access | 1 |
| 25 | L20810 | COVER-elevator access | 1 |
| 26 | L66010 | ARM-torque (include 2 of L13015 bushings for s/n ~1246) | 1 |
| 27 | PBC2108 | BEARING | 2 |
| 28 | SDS100 | BUSHING-sprocket | 1 |
| 29 | 50SDS20 | SPROCKET-beater drive | 1 |
| 30 | L67400 | MOUNT-motor | 1 |
| 31 | CP9118 | COUPLER-motor to shaft | 1 |
| 32A | HM1149 | MOTOR-pri. chain & beater (Eaton s/n~1246)(may use HM2149) | 1 |
| 32A | HM2149 | MOTOR-pri. chain & beater (Danfoss)(s/n 1247~) | 1 |
| 32A | H25PB007 | MODEL 850-860 HARVESTER | |
| 32B | HM1149-K | SEAL KIT-motor (HM1149) | 1 |
| 32B | HM2149-K | SEAL KIT-motor (HM2149) | 1 |
| 33 | AG2416 | IDLER-chain | 1 |
| 34 | 50BS24100 | SPROCKET-beater driven | 1 |
| 35 | PBC2100 | BEARING-beater shaft | 2 |
| 36 | L61340 | BRACKET-bearing take up | 2 |
| 37 | VL3850 | VALVE-flow control | 1 |
| 38 | L31130 | SEAL-primary chain return | 1 |
| 39 | F6012 | CLAMPSTRIP-seal | 2 |
| 40 | L31575 | SEAL-lower elev. (s/n 1434 ~ ) | 1 |
| 40 | L31516 | SEAL-lower elev. Twin rod (s/n 2210 ~) | 1 |
| 41 | RL1080 | ROLLER-nose (lower elevator) | 2 |
| 42 | L20090 | COVER-elevator access | |
| 43 | F20078 | COVER-elevator access | 4 |
| 44 | L68705 | ELEVATOR/CONVEYOR-(s/n ~1334) | 1 |
| 44 | L68715 | ELEVATOR/CONVEYOR-(s/n 1343-1608) | 1 |
| 44 | L68725 | ELEVATOR-(s/n 1624~) | 1 |
| 45 | L13015 | BUSHING-torque arm (s/n 1247~) | 2 |
| 46 | F10728 | REDI BOLT-bearing take up | 2 |
| 47 | CA6012-2 | CLAMP-hose (3/4” twin) | 3 |
| 48 | CA6008-2 | CLAMP-hose (1/2” twin) | 1 |
| 49 | L67805 | MOUNT-motor | 1 |
| 50 | L65405 | BRACKET-seal (L41875)(s/n 1343-1362) | 1 |
| 51 | L20615 | COVER-elevator side seal bracket | 2 |
| 52 | L68735 | CONVEYOR-low position (s/n 1624~) | 1 |
| 52 | L68745 | CONVEYOR-high position (s/n 1624~) | 1 |
| 53 | 88176 | LIGHT-rear (optional light kit)(s/n ~2169) | 1 |
| 54 | 112201 | SOCKET, SMV mount (s/n 2185~) | 1 |
| 55 | A1004 | KEY, 3/8 X 3 | 1 |
| 56 | A1001 | KEY, 3/8 X 4 | 2 |
| 56 | H25PB007 | MODEL 850-860 HARVESTER |
