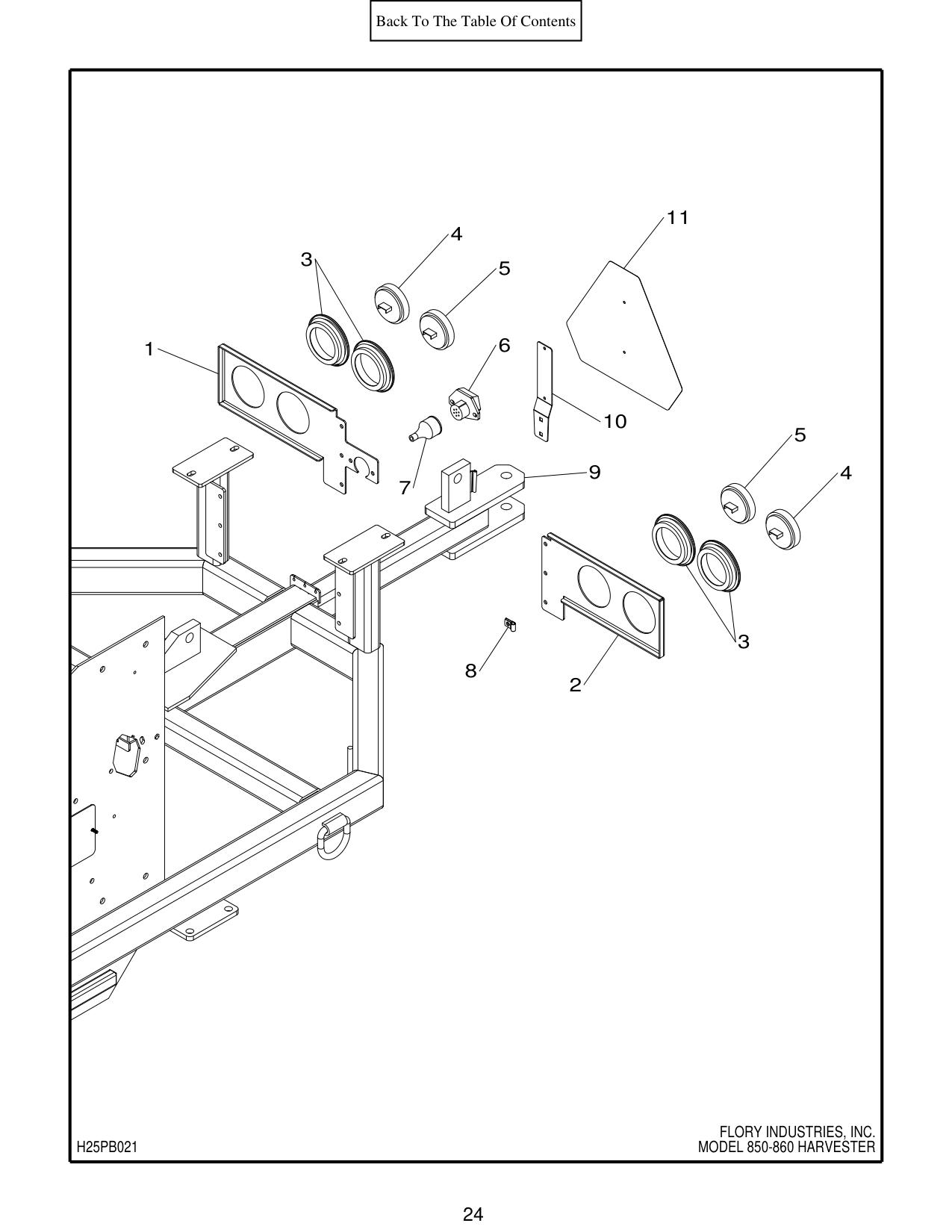

Figure 11 · Flory Flory 850/860 Harvester
Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| 1 | L64606 | BRACKET, right light (s/n 2101, 2185~) | 1 |
| 2 | L64626 | BRACKET, left light (s/n 2101, 2185~) | 1 |
| 3 | ME0110 | GROMMET, 4" light (s/n 2101, 2185~) | 4 |
| 4 | LT3040 | LIGHT, 4" amber turn (s/n 2101, 2185~) | 2 |
| 5 | LT3140 | LIGHT, 4" red s/t/t (s/n 2101, 2185~) | 2 |
| 6 | PLG7RSKT-DC | RECEPTACLE, 7 way round (s/n 2101, 2185~) | 1 |
| 7 | PLG7R-SKT-BT | BOOT, receptacle (s/n 2101, 2185~) | 1 |
| 8 | 0708760 | CLAMP, 3/8" vinyl (s/n 2101, 2185~) | 4 |
| 9 | L61940 | HITCH, telescoping | 1 |
| 10 | 112409 | SPADE, SMV mount (s/n 2185~) | 1 |
| 11 | 101105 | SIGN, SMV (s/n 2185~) | 1 |
| 11 | H25PB021 | MODEL 850-860 HARVESTER |
