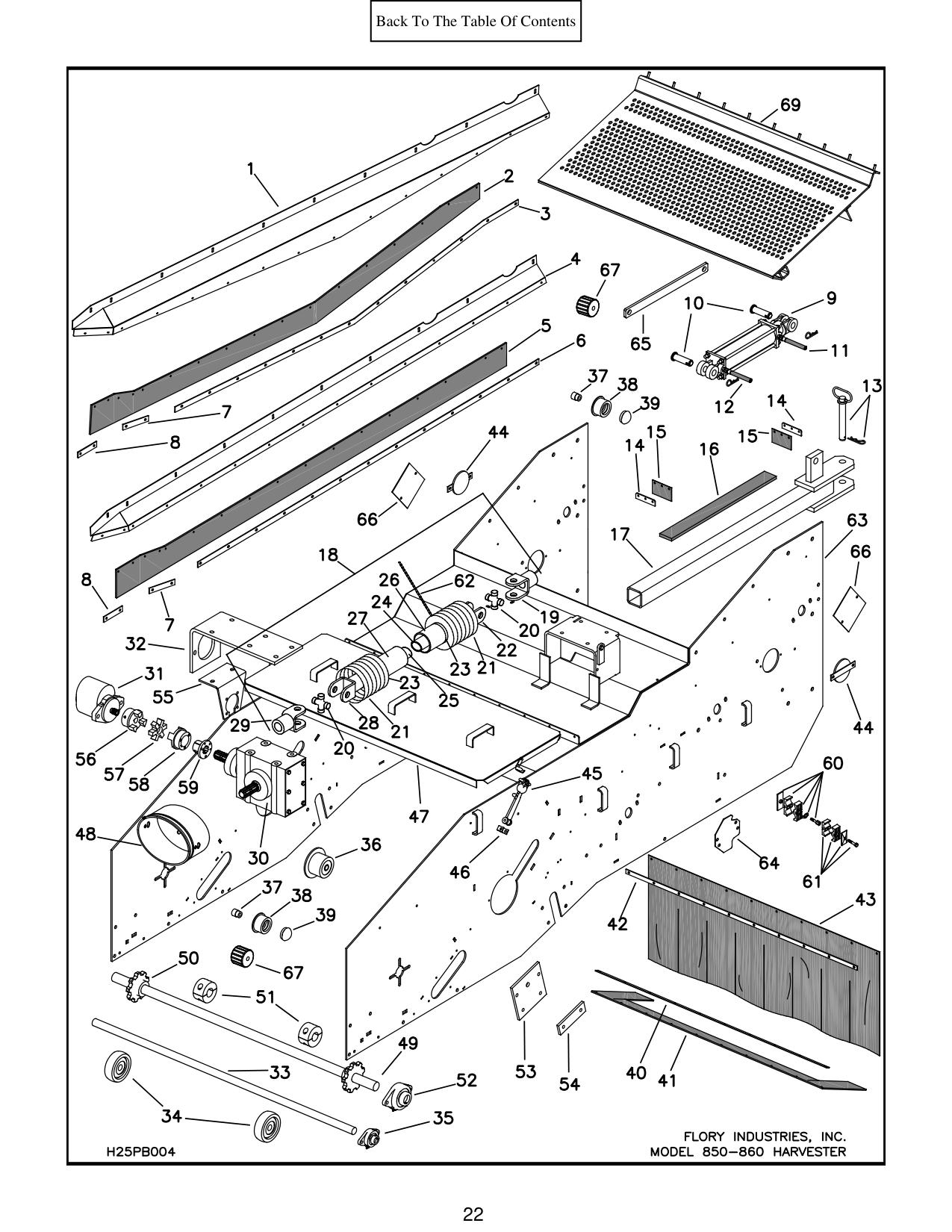

Figure 10 · Flory Flory 850/860 Harvester
Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| 67 | RL6086 | ROLLER, chain support (belted chain) | |
| 68 | MC4086 | DUST CAP-roller (belted chain) (not shown) | |
| 69 | L69385 | PAN, perforated nut Almond primary bar chain: 26 secondary chain: 22 Total: Walnut primary chain: 24 secondary chain: 22 Total: Pecan primary chain: 22 secondary chain: 22 Total: Hazelnut primary chain: 24 secondary chain: 22 Total: | 1 |
| 69 | H25PB004 | MODEL 850-860 HARVESTER |
