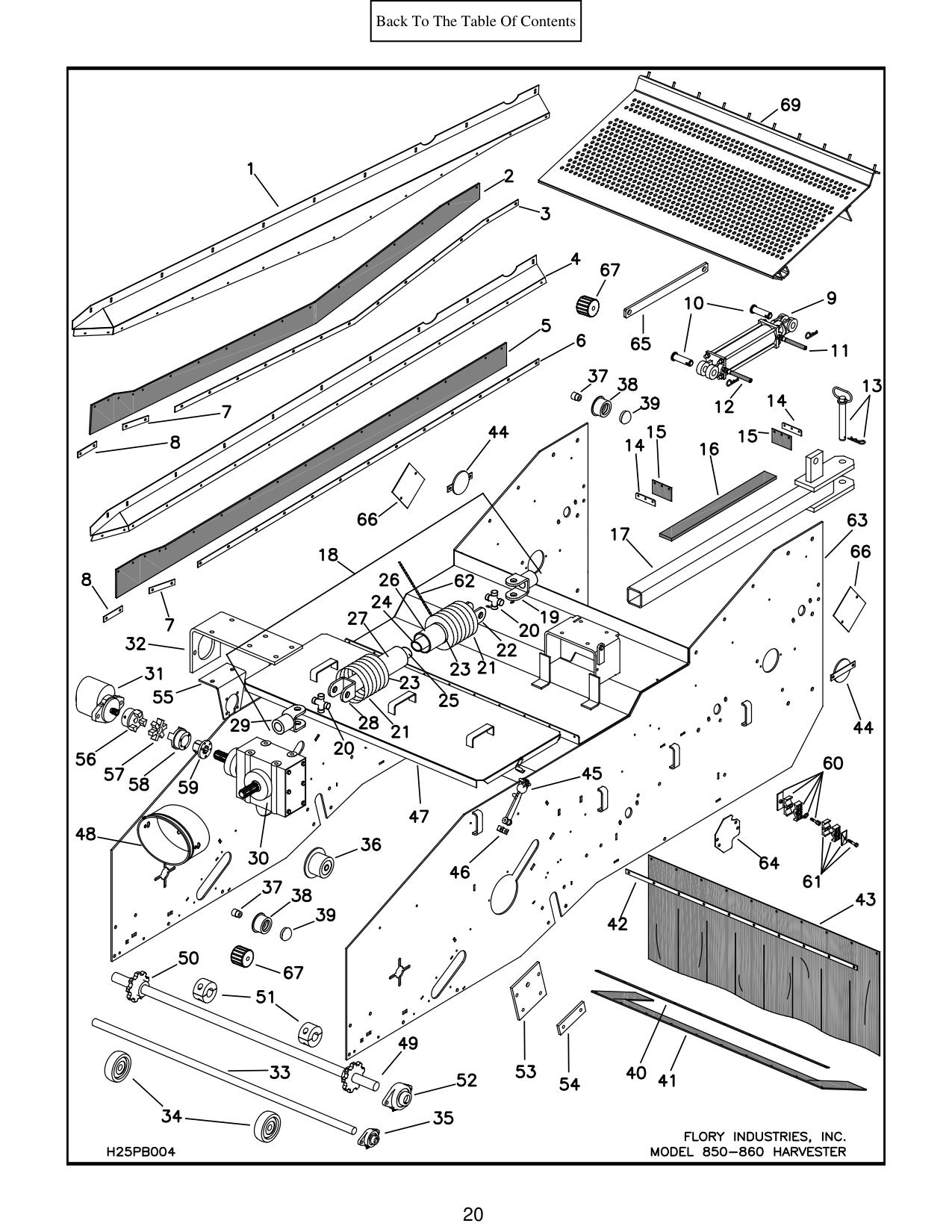

Figure 9 · Flory Flory 850/860 Harvester

Tap a circled number on the diagram to identify the part.

diagram
✕
#Part numberDescriptionQty
36 RL1080 ROLLER-nose (bar chain) 2
37 BU8850 SPINDLE-roller (wire chain) 46
38A RL1850 ROLLER-chain support (includes ref. nos. 37 & 38A-D) (wire chain) 46
38B BR1850 BEARING-roller (wire chain) 46
38C RN7850 SNAP RING-roller (wire chain) 46
38D SL0850 SEAL-roller (wire chain) 46
39 MC4850 DUST CAP-roller (wire chain) 46
40 F6012 CLAMPSTRIP-lower primary seal 1
41 L31565 SEAL-lower primary (s/n 1434 ~) Replaced L31561 1
41 L31506 SEAL-lower primary twin rod (s/n 2210 ~ ) 1
42 F6012 CLAMPSTRIP-checkflap 1
43 F30128 CHECKFLAP-lower elevator 1
44 L20070 COVER-access (s/n ~2026) 2
45 66D638 HOOK-rubber 2
46 277A80 ANCHOR-rubber hook 2
47 L20120 COVER-p/u belt 1
48 SH1010 SHIELD-cone 2
49 F50368 SHAFT-front d/c (wire chain) 1
50 CA550X9T SPROCKET-shaft (welded)(wire chain) 2
51 L32920 ROLLER-support (wire chain) 2
52 FLC2108 BEARING (wire chain) 2
53 L20015 COVER-side plate (nose roller mount)(bar & twin-rod chain) 2
54 L61105 STRAP-side plate (wire chain) 2
55 L67410 BRACKET-pump support 1
56 FS-CP8014 COUPLER-pump half (s/n ~1916) 1
56 CP8014-4 COUPLER-pump half (s/n 1927~) 1
57 CP8980 INSERT-coupler (s/n ~1916) 1
57 CP8986 INSERT-coupler (s/n 1927~) 1
58 CP8080 COUPLER-gearbox half (s/n ~1916) 1
58 CP8106-4 COUPLER-gearbox half (s/n 1927~) 1
59 P1106-2 BUSHING-coupler (splined) (s/n ~1916) 1
59 SPL22L COLLAR, split (s/n 1927~) 1
60 CA6012-2 CLAMP-hose (3/4” twin) 4
61 CA6008-2 CLAMP-hose (1/2" twin) 4
62 044321 CHAIN-safety 1
63 L60005 CHASSIS 1
64 L20075 SHAFT COVER (WAL/PEC/HAZ/MAC) 6
65 L69385 STRAP, REAR HITCH 1
66 L20090 COVER, elevator access (s/n 2027~) 2
66 H25PB004 MODEL 850-860 HARVESTER
