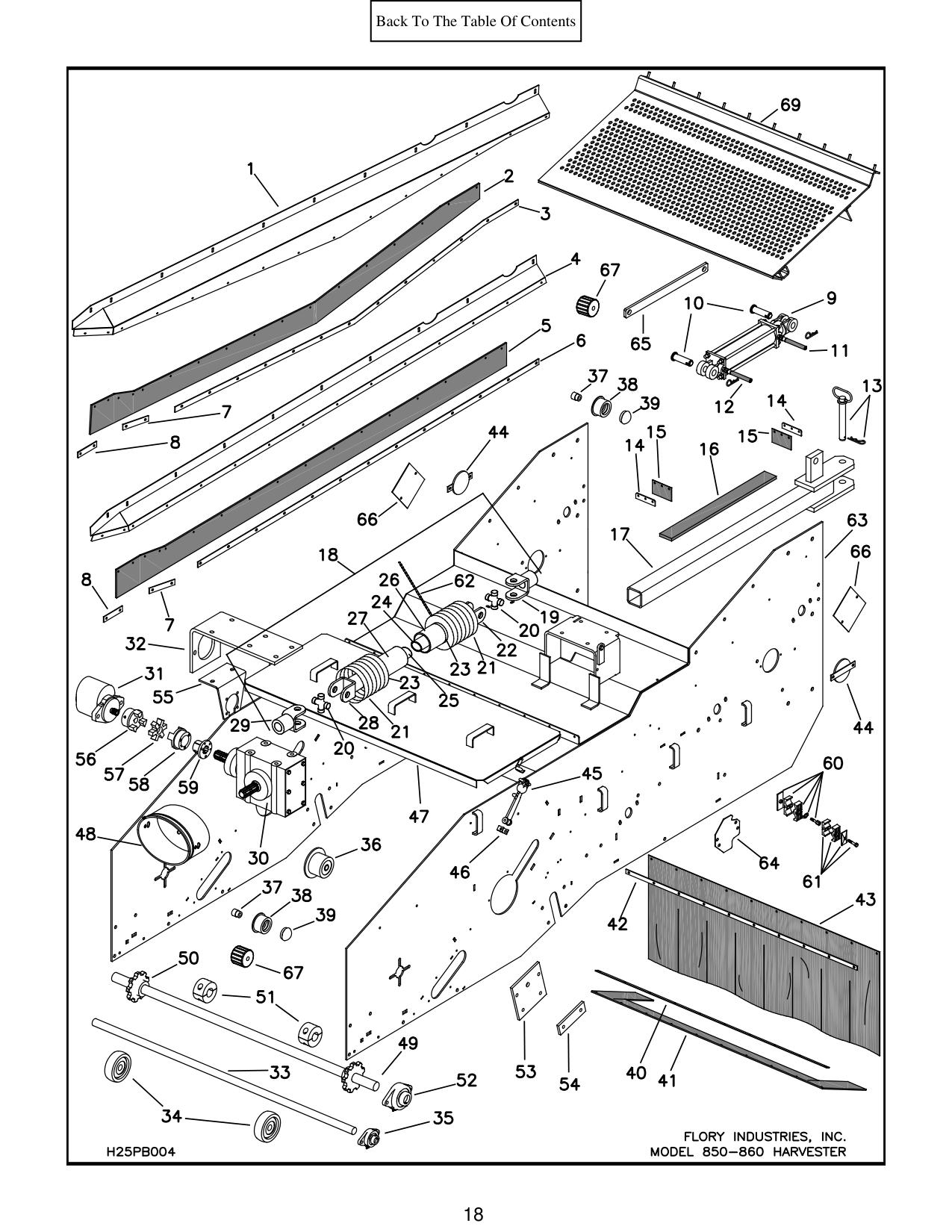

Figure 8 · Flory Flory 850/860 Harvester

Tap a circled number on the diagram to identify the part.

diagram
✕
#Part numberDescriptionQty
1 L65970 BRACKET, primary seal (right) (pecs, wal s/n 1882~) 1
1 L65990 BRACKET, primary seal (left) (pec, wal s/n 1882~) 1
2 L31825 SEAL, primary (pec, wal s/n 1882~) 4
3 L64985 CLAMP STRIP, primary seal (pec, wal s/n 1882~) 2
4 L65960 BRACKET, primary seal (right) (alm, wal s/n ~1881, hzl.) 1
4 L65980 BRACKET, primary seal (left) (alm, wal s/n ~1881, hzl.) 1
5 L31830 SEAL, primary (alm, wal s/n ~1881, hzl.) 2
6 L64550 CLAMP STRIP, primary seal (alm, wal s/n ~1881, hzl.) 2
7 L64980 CLAMPSTRIP-primary seal (lower)(all crops) 2
8 L64540 CLAMPSTRIP-primary seal (lower)(all crops) 2
9 310DB CYLINDER-telescoping hitch (includes pins & clips) 1
10 1544 PIN-cylinder 2
11 H82802 HOSE-hydraulic (280”)(telescoping hitch) 1
12 H82692 HOSE-hydraulic (269”)(telescoping hitch) 1
13A 12687 PIN-hydraulic hitch 1
13B PN3004 PIN-hair (1/8”)(included with 12687) 1
14 L64450 CLAMPSTRIP-hydraulic hitch wiper 2
15 L31250 WIPER-hydraulic hitch 2
16 L32000 GUIDE-hydraulic hitch telescoping 2
17 L61940 HITCH-telescoping 1
18 DS2020 DRIVESHAFT-complete 1
19 YK1010 YOKE-bearing shaft 1
20 CK5010 CROSS KIT-yoke 2
21 SH1011 CONE-shield 2
22 YK2013 YOKE-inboard 1
23 087276 BEARING-nylon 2
24 DS9014 PROFILE-outer 1
25 DS8014 PROFILE-inner 1
26 SH2016 SHIELD-inner 1
27 SH2017 SHIELD-outer 1
28 YK2012 YOKE-inboard 1
29 YK2011 YOKE-gearbox 1
30 GB1131 GEARBOX (see gearbox page for parts breakdown) 1
31A HP3233 PUMP-systems hydraulic (single / standard) 1
31A HP4233 PUMP-auxiliary hydraulic (double / optional) 1
31B HP2155-K SEAL KIT-pump (HP3233) 1
31B HP4233-K SEAL KIT-pump (HP4233) 1
32 L67420 MOUNT-pump 1
33 L50900 SHAFT-bounce roller (wire chain) 3
34 RL4052 ROLLER-support bounce (wire chain) 6
35 FLC2103 BEARING (wire chain) 6
35 H25PB004 MODEL 850-860 HARVESTER
36 RL1080 ROLLER-nose (bar chain) 2
37 BU8850 SPINDLE-roller (wire chain) 46
38A RL1850 ROLLER-chain support (includes ref. nos. 37 & 38A-D) (wire chain) 46
38B BR1850 BEARING-roller (wire chain) 46
38C RN7850 SNAP RING-roller (wire chain) 46
38D SL0850 SEAL-roller (wire chain) 46
39 MC4850 DUST CAP-roller (wire chain) 46
40 F6012 CLAMPSTRIP-lower primary seal 1
41 L31565 SEAL-lower primary (s/n 1434 ~) Replaced L31561 1
41 L31506 SEAL-lower primary twin rod (s/n 2210 ~ ) 1
42 F6012 CLAMPSTRIP-checkflap 1
43 F30128 CHECKFLAP-lower elevator 1
44 L20070 COVER-access (s/n ~2026) 2
45 66D638 HOOK-rubber 2
46 277A80 ANCHOR-rubber hook 2
47 L20120 COVER-p/u belt 1
48 SH1010 SHIELD-cone 2
49 F50368 SHAFT-front d/c (wire chain) 1
50 CA550X9T SPROCKET-shaft (welded)(wire chain) 2
51 L32920 ROLLER-support (wire chain) 2
52 FLC2108 BEARING (wire chain) 2
53 L20015 COVER-side plate (nose roller mount)(bar & twin-rod chain) 2
54 L61105 STRAP-side plate (wire chain) 2
55 L67410 BRACKET-pump support 1
56 FS-CP8014 COUPLER-pump half (s/n ~1916) 1
56 CP8014-4 COUPLER-pump half (s/n 1927~) 1
57 CP8980 INSERT-coupler (s/n ~1916) 1
57 CP8986 INSERT-coupler (s/n 1927~) 1
58 CP8080 COUPLER-gearbox half (s/n ~1916) 1
58 CP8106-4 COUPLER-gearbox half (s/n 1927~) 1
59 P1106-2 BUSHING-coupler (splined) (s/n ~1916) 1
59 SPL22L COLLAR, split (s/n 1927~) 1
60 CA6012-2 CLAMP-hose (3/4” twin) 4
61 CA6008-2 CLAMP-hose (1/2" twin) 4
62 044321 CHAIN-safety 1
63 L60005 CHASSIS 1
64 L20075 SHAFT COVER (WAL/PEC/HAZ/MAC) 6
65 L69385 STRAP, REAR HITCH 1
66 L20090 COVER, elevator access (s/n 2027~) 2
66 H25PB004 MODEL 850-860 HARVESTER
67 RL6086 ROLLER, chain support (belted chain)
68 MC4086 DUST CAP-roller (belted chain) (not shown)
69 L69385 PAN, perforated nut Almond primary bar chain: 26 secondary chain: 22 Total: Walnut primary chain: 24 secondary chain: 22 Total: Pecan primary chain: 22 secondary chain: 22 Total: Hazelnut primary chain: 24 secondary chain: 22 Total: 1
69 H25PB004 MODEL 850-860 HARVESTER
