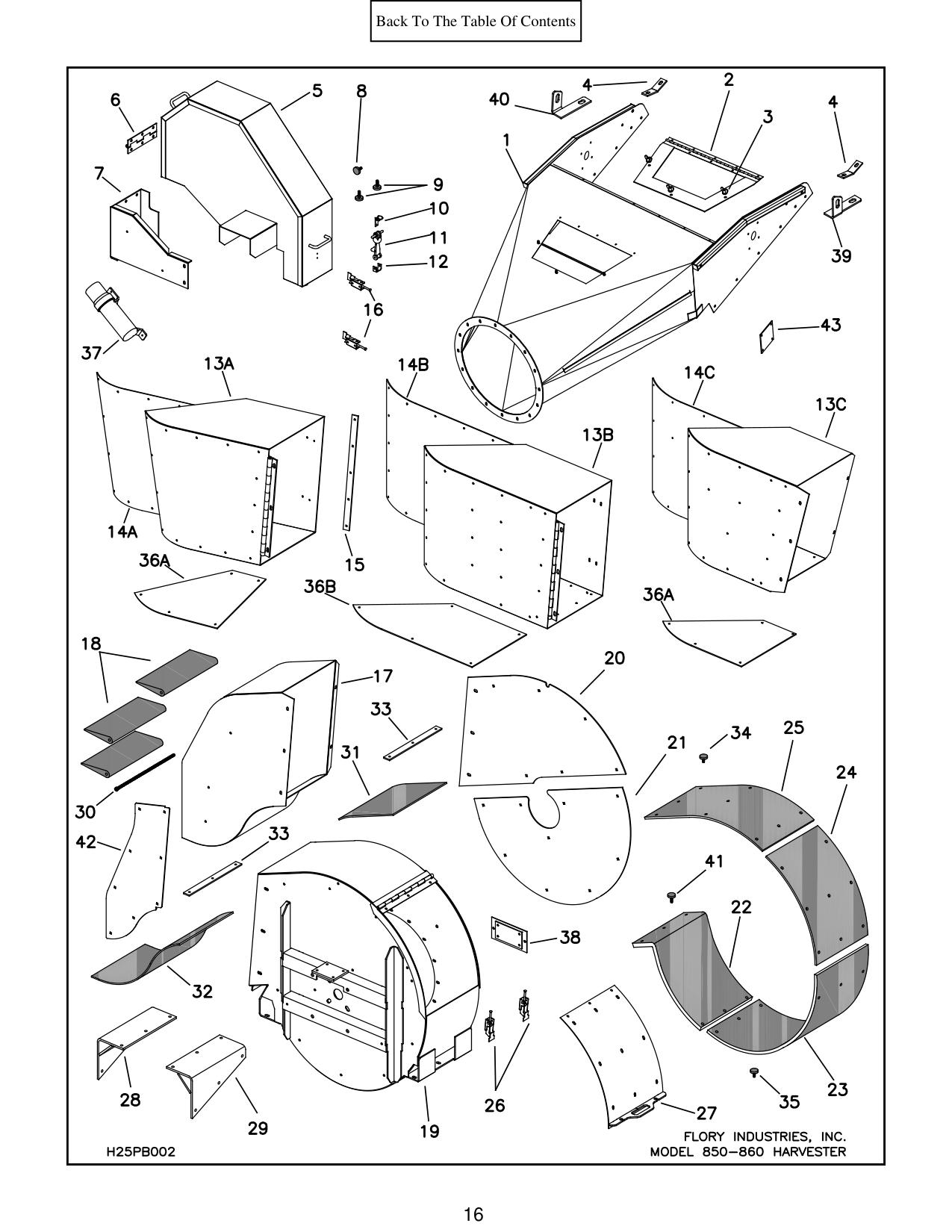

Figure 7 · Flory Flory 850/860 Harvester
Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| 33 | L64870 | CLAMPSTRIP-suction fan deflector liner (almonds) | 2 |
| 34 | P6373B | POLY BOLT - (short)(9 for L35750, 9 for L35760) | 18 |
| 35 | P6372B | POLY BOLT - (medium)(for L35740) | 9 |
| 36A | L63735 | LINER-deflector (L63840R & L63845) | 1 |
| 36B | L63745 | LINER-deflector (L63855) | 1 |
| 37 | MM3000 | TUBE-document (s/n 1624~) | 1 |
| 38 | L27255 | DOOR-suction fan cleanout (s/n 1770~) | 1 |
| 39 | L60436 | ANCHOR - air inlet tube (Left) (s/n 1987~) | 1 |
| 40 | L60416 | ANCHOR - air inlet tube (Right) (s/n 1987~) | 1 |
| 41 | P6380B | POLY BOLT - (long)(for L35720) | 6 |
| 42 | L63716 | LINER-suction fan deflector (side)(almonds)(s/n 2283~) | 1 |
| 43 | L64155 | PLATE-cover | 2 |
| 43 | H25PB002 | MODEL 850-860 HARVESTER |
