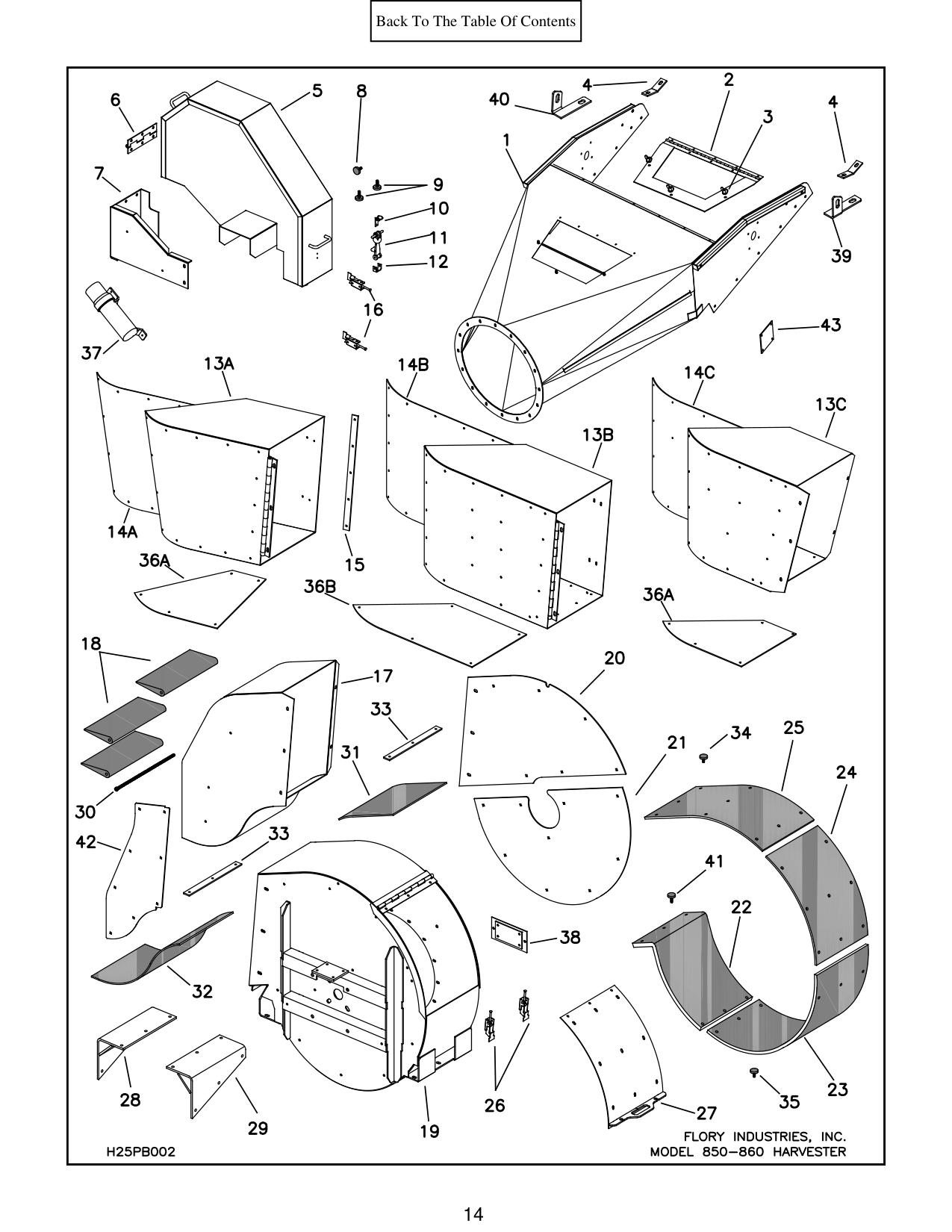

Figure 6 · Flory Flory 850/860 Harvester
Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| 1 | L68155 | TUBE-air inlet | 1 |
| 2 | L27060 | DOOR-air inlet tube | 1 |
| 3 | 5/16TN-C | THUMB NUT-door (5/16”) | 3 |
| 4 | L60325 | ANCHOR-air inlet tube (s/n ~1986) | 2 |
| 5 | L22050 | SHIELD-suction fan drive (upper)(s/n ~1881) | 1 |
| 5 | L22056 | SHIELD-suction fan drive (upper)(s/n 1882~) | 1 |
| 6 | L27020 | HINGE-suction fan drive shield | 1 |
| 7 | L22060 | SHIELD-suction fan drive (lower) | 1 |
| 8 | P6373B | POLY BOLT-shield stop (short) | 1 |
| 9 | P6372B | POLY BOLT-shield stop (medium) | 2 |
| 10 | 28A382 | LATCH-rubber hook | 1 |
| 11 | 68D842 | HOOK-rubber | 1 |
| 12 | 277A80 | ANCHOR-rubber hook | 1 |
| 13A | L63840R | DEFLECTOR-suction fan (other crops)(s/n ~1433) | 1 |
| 13B | L63855 | DEFLECTOR-suction fan | 1 |
| 13C | L63845 | DEFLECTOR-suction fan | 1 |
| 14A | L34020 | LINER-side (L63840R) | 1 |
| 14B | L63755 | LINER-side (L63855) | 1 |
| 14C | L34025 | LINER-side (L63845) | 1 |
| 15 | L64890 | CLAMPSTRIP-wear plate | 1 |
| 16 | 701 | LATCH-deflector (other crops) | 2 |
| 17 | L63860 | DEFLECTOR-suction fan (almonds) | 1 |
| 18 | L65900 | VANE-suction fan deflector (steel) | 3 |
| 18 | L35905 | VANE-suction fan deflector (poly-urethane) | 3 |
| 19 | L68140R | HOUSING-suction fan (s/n ~1291) | 1 |
| 19 | L68145 | HOUSING-suction fan (s/n 1292~) | 1 |
| 20 | L63700 | LINER-suction fan housing (upper front) | 1 |
| 21 | L63710 | LINER-suction fan housing (lower front) | 1 |
| 22 | L35720 | LINER-end cap | 1 |
| 23 | L35740 | LINER-lower suction fan | 1 |
| 24 | L35750 | LINER-suction fan door | 1 |
| 25 | L35760 | LINER-upper suction fan | 1 |
| 26 | 701 | LATCH-suction fan door | 2 |
| 27 | L27050 | DOOR-suction fan | 1 |
| 28 | L67010 | MOUNT-suction fan (right) | 1 |
| 29 | L67030 | MOUNT-suction fan (left) | 1 |
| 30 | L10905 | REDI BOLT-vane | 3 |
| 31 | L34210 | LINER-suction fan deflector (upper)(almonds)(s/n 1247~) | 1 |
| 32 | L34220 | LINER-suction fan deflector (lower)(almonds)(s/n 1247~) | 1 |
| 32 | H25PB002 | MODEL 850-860 HARVESTER | |
| 33 | L64870 | CLAMPSTRIP-suction fan deflector liner (almonds) | 2 |
| 34 | P6373B | POLY BOLT - (short)(9 for L35750, 9 for L35760) | 18 |
| 35 | P6372B | POLY BOLT - (medium)(for L35740) | 9 |
| 36A | L63735 | LINER-deflector (L63840R & L63845) | 1 |
| 36B | L63745 | LINER-deflector (L63855) | 1 |
| 37 | MM3000 | TUBE-document (s/n 1624~) | 1 |
| 38 | L27255 | DOOR-suction fan cleanout (s/n 1770~) | 1 |
| 39 | L60436 | ANCHOR - air inlet tube (Left) (s/n 1987~) | 1 |
| 40 | L60416 | ANCHOR - air inlet tube (Right) (s/n 1987~) | 1 |
| 41 | P6380B | POLY BOLT - (long)(for L35720) | 6 |
| 42 | L63716 | LINER-suction fan deflector (side)(almonds)(s/n 2283~) | 1 |
| 43 | L64155 | PLATE-cover | 2 |
| 43 | H25PB002 | MODEL 850-860 HARVESTER |
