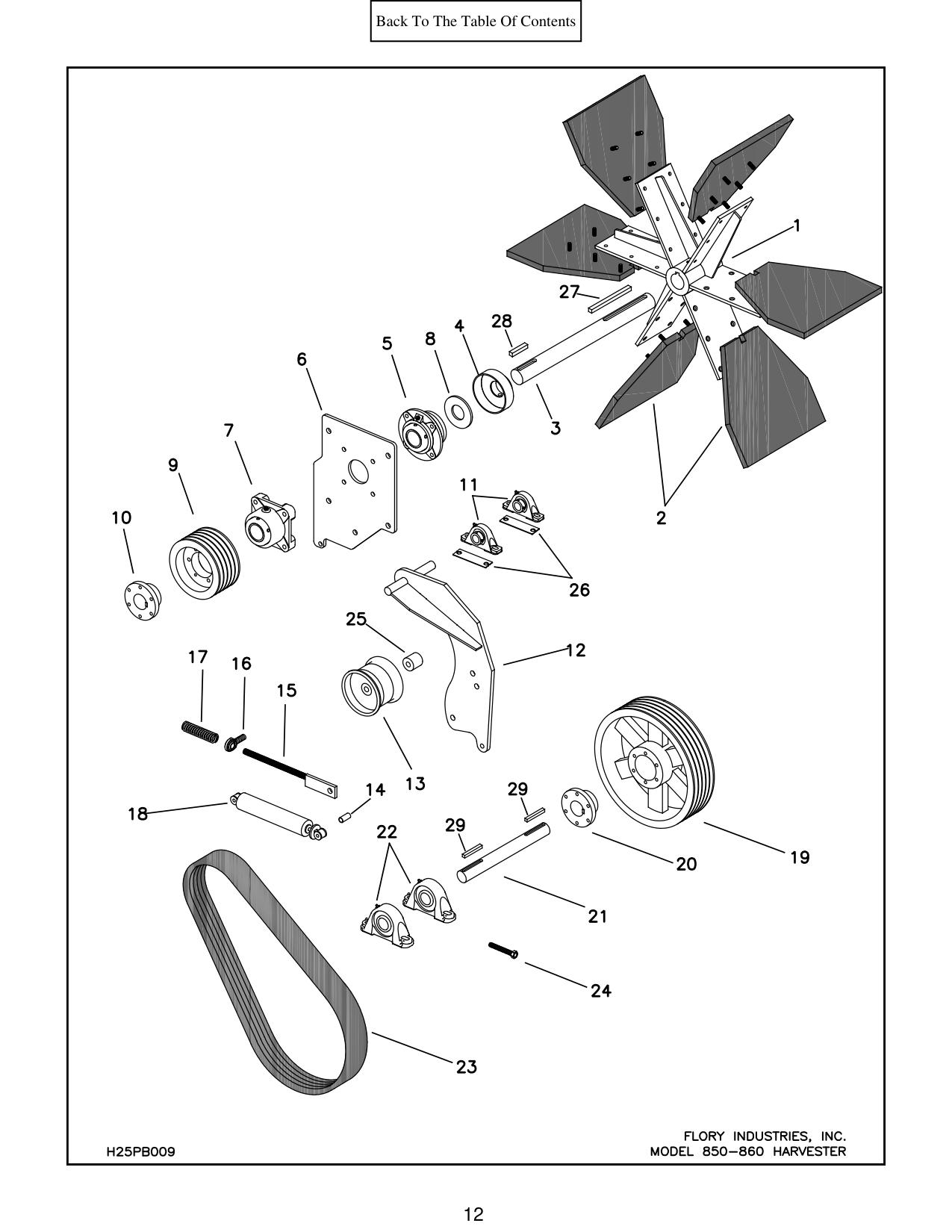

Figure 5 · Flory Flory 850/860 Harvester
Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| 22 | PBC2108 | BEARING-counter shaft | 2 |
| 23 | PB55VX750 | BELT-suction fan (almonds) (s/n ~1881) | 1 |
| 23 | PB55VX730 | BELT-suction fan (other crops) (s/n ~1881) | 1 |
| 23 | PB55VX710 | BELT-suction fan (almonds) (s/n 1882~) | 1 |
| 23 | B5VX780 | BELT-suction fan (other crops) (s/n 1882~) | 5 |
| 24 | F1048 | REDI BOLT-bearing take up | 1 |
| 25 | L14035 | SPACER-fan idler | 1 |
| 26 | L10236 | SHIM, bearing | 2 |
| 27 | A1027 | KEY-1/2 X 6-3/4 | 1 |
| 28 | A1014 | KEY-1/2 X 2-3/4 | 1 |
| 29 | A1005 | KEY-3/8 X 2-3/4 Recommended Use: | 2 |
| 29 | UHMW | Blades - All crops | |
| 29 | H25PB009 | MODEL 850-860 HARVESTER |
