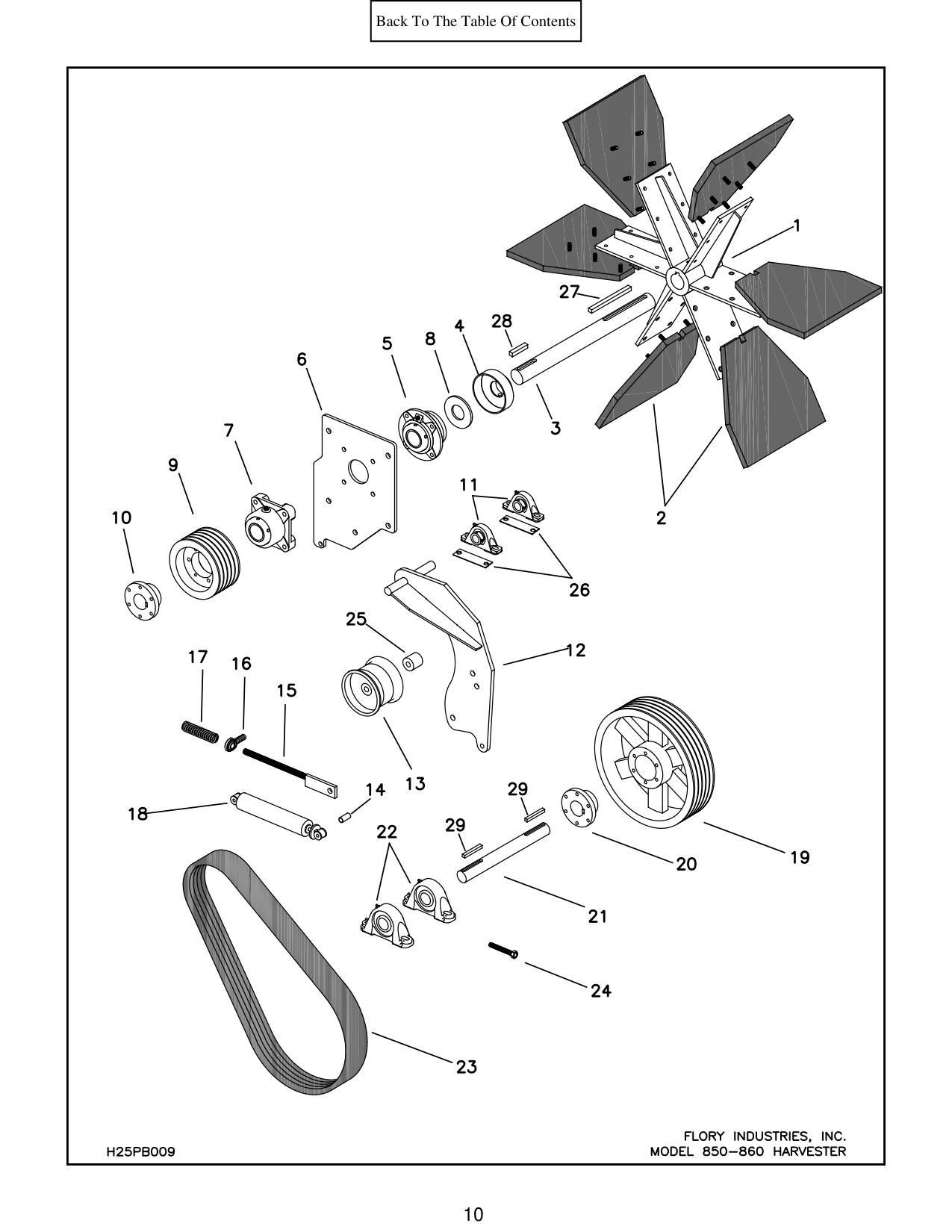

Figure 4 · Flory Flory 850/860 Harvester
Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| 1 | L63940 | SPIDER-suction fan (std, UHMW blades only) | 1 |
| 1 | L63940-S | SPIDER-suction fan (opt, Poly or Steel blades only) | 1 |
| 2 | L34955 | SET-suction fan blade (UHMW) (**See note below**) | 1 |
| 2 | L35950 | SET-suction fan blade (poly-urethane) (**See note**) | 1 |
| 2 | L63950 | SET-suction fan blade (steel) (**See note below**) | 1 |
| 3 | L52630 | SHAFT-suction fan | 1 |
| 4 | L14085 | SLINGER-dirt | 1 |
| 5 | FLC4115 | BEARING-suction fan (s/n ~1238) | 1 |
| 5 | FCC4115 | BEARING-suction fan (s/n 1247~1283)(NLA use FLC4115) | 1 |
| 5 | FCE4115 | BEARING-suction fan (s/n 1292~) | 1 |
| 6 | L67105 | MOUNT-suction fan bearing | 1 |
| 7 | FLC4115 | BEARING-suction fan (s/n ~1238 & s/n 1292-1448) | 1 |
| 7 | FCC4115 | BEARING-suction fan (s/n 1247~1283)(NLA use FBE4115) | 1 |
| 7 | FBE4115 | BEARING-suction fan (s/n 1464~) | 1 |
| 8 | L38005 | SEAL-dirt slinger | 1 |
| 9 | S55VQ750 | SHEAVE-suction fan (driven)(almonds) | 1 |
| 9 | S55VQ670 | SHEAVE-suction fan (driven) | 1 |
| 9 | S55VQ710 | SHEAVE-suction fan (driven) | 1 |
| 9 | S55VQ590 | SHEAVE-suction fan (driven) | 1 |
| 10 | SF115 | BUSHING-sheave (S55VQ750, 670 & 710) | 1 |
| 10 | SK0115 | BUSHING-sheave (S55VQ590) | 1 |
| 11 | PBC2100 | BEARING-idler | 2 |
| 12 | L64020 | ARM-suction fan idler (s/n ~1881) | 1 |
| 12 | L64026 | ARM-suction fan idler (s/n 1882~) | 1 |
| 13 | FS-PL3292 | IDLER-suction fan belt | 1 |
| 14 | F13018 | BUSHING-gas spring | 1 |
| 15 | L67050 | TENSIONER-fan belt | 1 |
| 16 | SPM10 | ROD END-tensioner | 1 |
| 17 | 815 | SPRING-tensioner | 1 |
| 18 | SG4008 | SPRING-gas | 1 |
| 19 | S55VQ1500 | SHEAVE-suction fan (drive) | 1 |
| 19 | S55VL1870 | SHEAVE-suction fan (drive) | 1 |
| 20 | E108 | BUSHING-sheave (S55VQ1500) | 1 |
| 20 | 3535108 | BUSHING-sheave (S55VL1870) | 1 |
| 21 | L53000 | SHAFT-counter | 1 |
| 21 | H25PB009 | MODEL 850-860 HARVESTER | |
| 22 | PBC2108 | BEARING-counter shaft | 2 |
| 23 | PB55VX750 | BELT-suction fan (almonds) (s/n ~1881) | 1 |
| 23 | PB55VX730 | BELT-suction fan (other crops) (s/n ~1881) | 1 |
| 23 | PB55VX710 | BELT-suction fan (almonds) (s/n 1882~) | 1 |
| 23 | B5VX780 | BELT-suction fan (other crops) (s/n 1882~) | 5 |
| 24 | F1048 | REDI BOLT-bearing take up | 1 |
| 25 | L14035 | SPACER-fan idler | 1 |
| 26 | L10236 | SHIM, bearing | 2 |
| 27 | A1027 | KEY-1/2 X 6-3/4 | 1 |
| 28 | A1014 | KEY-1/2 X 2-3/4 | 1 |
| 29 | A1005 | KEY-3/8 X 2-3/4 Recommended Use: | 2 |
| 29 | UHMW | Blades - All crops | |
| 29 | H25PB009 | MODEL 850-860 HARVESTER |
