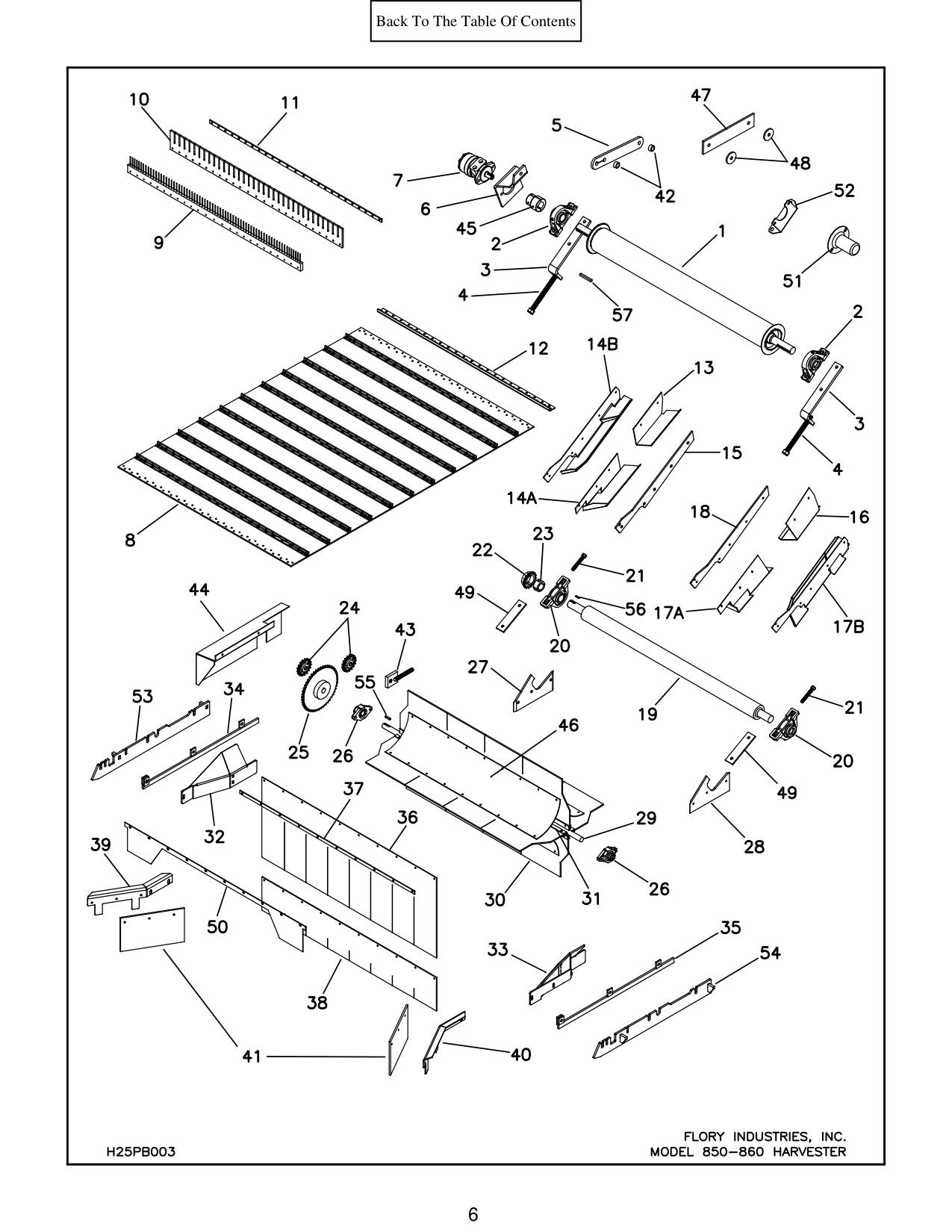

Figure 2 · Flory Flory 850/860 Harvester
Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| 1 | F5012 | SHAFT-pickup belt (upper) (s/n ~1633) | 1 |
| 1 | F5012-R | SHAFT-rubberized pickup belt (upper) (s/n 1634~) | 1 |
| 2 | PBC2108 | BEARING-pickup belt shaft (upper) | 2 |
| 3 | F61348 | PAD-bearing take up | 2 |
| 4 | F10728 | REDI BOLT-bearing take up | 2 |
| 5 | L66010 | ARM-torque (inc. 2 of L13015 bushings for s/n ~1246) | 1 |
| 5 | L66010 | (s/n ~1709) Replaced by L30505 | |
| 6 | L67400 | MOUNT-pickup belt motor | 1 |
| 7A | HM1149 | MOTOR-p/u belt (Eaton) (s/n ~1246) (may use HM2149) | 1 |
| 7A | HM2149 | MOTOR-p/u belt (Danfoss) (s/n 1247~1794) | 1 |
| 7A | HM3149 | MOTOR-p/u belt (Danfoss) (s/n 1795~) | 1 |
| 7B | HM1149-K | SEAL KIT-motor (HM1149) | 1 |
| 7B | HM2149-K | SEAL KIT-motor (HM2149) | 1 |
| 7B | HM3149K | SEAL KIT-motor (HM3149) | 1 |
| 8 | F4012 | BELT-pickup (complete) | 1 |
| 8 | F4024 | BELT-pickup (without teeth and flaps) | 1 |
| 9 | F3024 | TEETH-pickup belt | 11 |
| 10 | F3036 | FLAP-pickup belt | 11 |
| 11 | F6036 | CLAMPSTRIP-pickup belt | 11 |
| 12 | F6024 | CLAMPSTRIP-pickup belt | 2 |
| 13 | F61258 | TROUGH-dirt (upper Rt)(s/n ~1633) Replaced by F61268 | 1 |
| 14A | F61268 | TROUGH-dirt (lower right) (s/n ~1633) | 1 |
| 14B | F61268 | TROUGH-dirt (upper & lower right) (s/n 1634-1794) | 1 |
| 14B | F61468 | TROUGH-dirt (upper & lower right) (s/n 1795~) | 1 |
| 15 | F60608 | GUIDE-pickup belt (right) (s/n ~1794) | 1 |
| 15 | F60718 | GUIDE-pickup belt (1/4" thick) (right) (s/n 1795~) | 1 |
| 16 | F61278 | TROUGH-dirt (upper Lt)(s/n ~1633) Replaced by F61288 | 1 |
| 17A | F61288 | TROUGH-dirt (lower left) (s/n ~1633) | 1 |
| 17B | F61288 | TROUGH-dirt (upper & lower left) (s/n 1634-1794) | 1 |
| 17B | F61488 | TROUGH-dirt (upper & lower left) (s/n 1795~) | 1 |
| 18 | F60488 | GUIDE-pickup belt (left) (s/n ~1794) | 1 |
| 18 | F60738 | GUIDE-pickup belt (1/4" thick) (left) (s/n 1795~) | 1 |
| 19 | F50248 | SHAFT-pickup belt (lower) (s/n ~1794) | 1 |
| 19 | F59258 | SHAFT-pickup belt (lower) (s/n 1795~) | 1 |
| 20 | PBC2103 | BEARING-pickup belt (lower) (s/n ~1794) | 2 |
| 20 | PBC2108 | BEARING-pickup belt (lower) (s/n 1795~) | 2 |
| 21 | F1048 | REDI BOLT-bearing take up | 2 |
| 22 | 50JA12 | SPROCKET-rotary trap (drive) (s/n ~1794) | 1 |
| 22 | 50BTL16H | SPROCKET-rotary trap (drive) (s/n 1795~) | 1 |
| 23 | JA103 | BUSHING-sprocket (s/n ~1794) | 1 |
| 23 | 1610108 | BUSHING-sprocket (s/n 1795~) | 1 |
| 23 | H25PB003 | MODEL 850-860 HARVESTER | |
| 24 | AG2416 | IDLER-sprocket | 2 |
| 25 | 50BS48100 | SPROCKET-rotary trap (driven) | 1 |
| 26 | FLC2100 | BEARING-rotary trap | 2 |
| 27 | F6084 | WEARSTRIP-pickup belt (lower right) (s/n ~1794) | 1 |
| 27 | F60748 | WEARSTRIP-pickup belt (lower right) (s/n 1795~2026) | 1 |
| 27 | L60746 | WEARSTRIP-pickup belt (lower right) (s/n 2027~) | 1 |
| 28 | F6072 | WEARSTRIP-pickup belt (lower left) (s/n ~1794) | 1 |
| 28 | F60768 | WEARSTRIP-pickup belt (lower left) (s/n 1795~2026) | 1 |
| 28 | L60766 | WEARSTRIP-pickup belt (lower left) (s/n 2027~) | 1 |
| 29 | F5072 | SHAFT-rotary trap | 1 |
| 30 | L30480 | FLAP-rotary trap | 4 |
| 31 | F6096 | CLAMPSTRIP-rotary trap flap | 4 |
| 32 | F6120 | DEFLECTOR-rotary trap (right) | 1 |
| 33 | F6108 | DEFLECTOR-rotary trap (left) | 1 |
| 34 | K6288 | WEAR STRIP-side plate (right) (s/n ~2026) | 1 |
| 34 | L62880 | WEAR STRIP-side plate (right) (pec./wal.) (s/n ~2026) | 1 |
| 35 | K6276 | WEAR STRIP-side plate (left) | 1 |
| 35 | L62760 | WEAR STRIP-side plate (left) (pecans/walnuts) | 1 |
| 36 | L30120 | CURTAIN-windrow (almonds & walnuts) | 1 |
| 37 | F6012 | CLAMPSTRIP-windrow curtain | 1 |
| 38 | L30130 | CURTAIN-windrow (pecans) | 1 |
| 39 | K6171 | BRACKET-wing (right)(almonds / walnuts / hazelnuts) | 1 |
| 40 | K6172 | BRACKET-wing (left)(almonds / walnuts / hazelnuts) | 1 |
| 41 | K3173 | SEAL-wing (almonds / walnuts / hazelnuts) | 2 |
| 42 | L13015 | BUSHING-torque arm (s/n 1247~1709) | 2 |
| 43 | F11338 | BRACKET-bearing take up | 1 |
| 44 | L22100 | SHIELD-rotary trap drive | 1 |
| 45 | CP9118 | COUPLER-motor to shaft (s/n ~1794) | 1 |
| 45 | CP9125 | COUPLER-motor to shaft (s/n 1795~) | 1 |
| 46 | L30485 | FLAP-rotary pickup (s/n 1664-1986) | 4 |
| 47 | L30505 | ARM-torque (rubber)(s/n 1720~) Requires Qty 2 | 1 |
| 47 | L14015 | when replacing L66010 | |
| 48 | L14015 | WASHER-clamp (steel) | 2 |
| 49 | F14238 | SPACER-bearing (s/n 1795~) | 2 |
| 50 | L69915 | CLAMPSTRIP-windrow curtain (pecan) | 1 |
| 51 | MC1011 | CAP-shaft end | 1 |
| 52 | L22006 | SHIELD-shaft end | 1 |
| 53 | L62968 | WEAR STRIP-side plate (right) (s/n 2027~) | 1 |
| 54 | L62988 | WEAR STRIP-side plate (left) (s/n 2027~) | 1 |
| 55 | A1017 | KEY-1/4 X 1-1/4 | 1 |
| 56 | A1028 | KEY-3/8 X 7/8 | 1 |
| 57 | A1004 | KEY-3/8 X 3 | 1 |
| 57 | H25PB003 | MODEL 850-860 HARVESTER |
