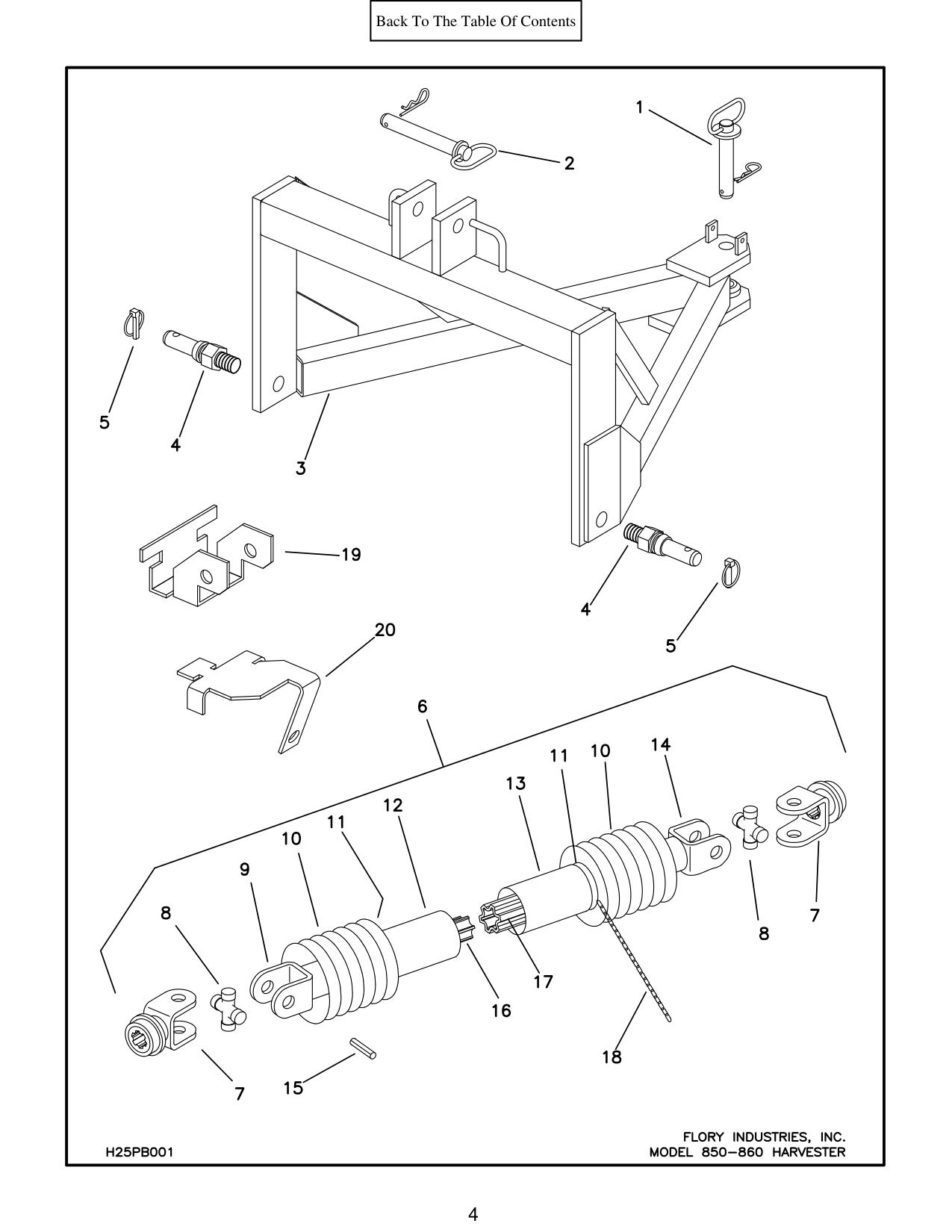

Figure 1 · Flory Flory 850/860 Harvester
Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| 1A | PN6019 | PIN-hitch | 1 |
| 1B | PN3005 | PIN-hair (5/32”)(included with PN6019) | 1 |
| 2A | 12687 | PIN-hitch | 1 |
| 2B | PN3005 | PIN-hair (5/32”)(included with 12687) | 1 |
| 3 | F69198 | ADAPTER-hitch | 1 |
| 4 | 12695 | PIN-lift | 2 |
| 5 | 12623 | PIN-linch | 2 |
| 6 | DS2021 | DRIVESHAFT-pto (complete) | 1 |
| 7 | YK2011 | YOKE | 2 |
| 8 | CK5010 | CROSS KIT-yoke | 2 |
| 9 | YK2012 | YOKE-inboard | 1 |
| 10 | SH1011 | CONE-shield | 2 |
| 11 | 087276 | RING-bearing | 2 |
| 12 | SH2017 | SHIELD-outer | 1 |
| 13 | SH2016 | SHIELD-inner | 1 |
| 14 | YK2013 | YOKE-inboard | 1 |
| 15 | PN1012 | PIN-yoke | 2 |
| 16 | DS8014 | PROFILE-inner | 1 |
| 17 | DS9014 | PROFILE-outer | 1 |
| 18 | 044321 | CHAIN-safety | 1 |
| 19 | L69305 | BRACKET-hitch mount upper | 1 |
| 20 | L69315 | BRACKET-hitch mount lower | 1 |
| 20 | H25PB001 | MODEL 850-860 HARVESTER |
