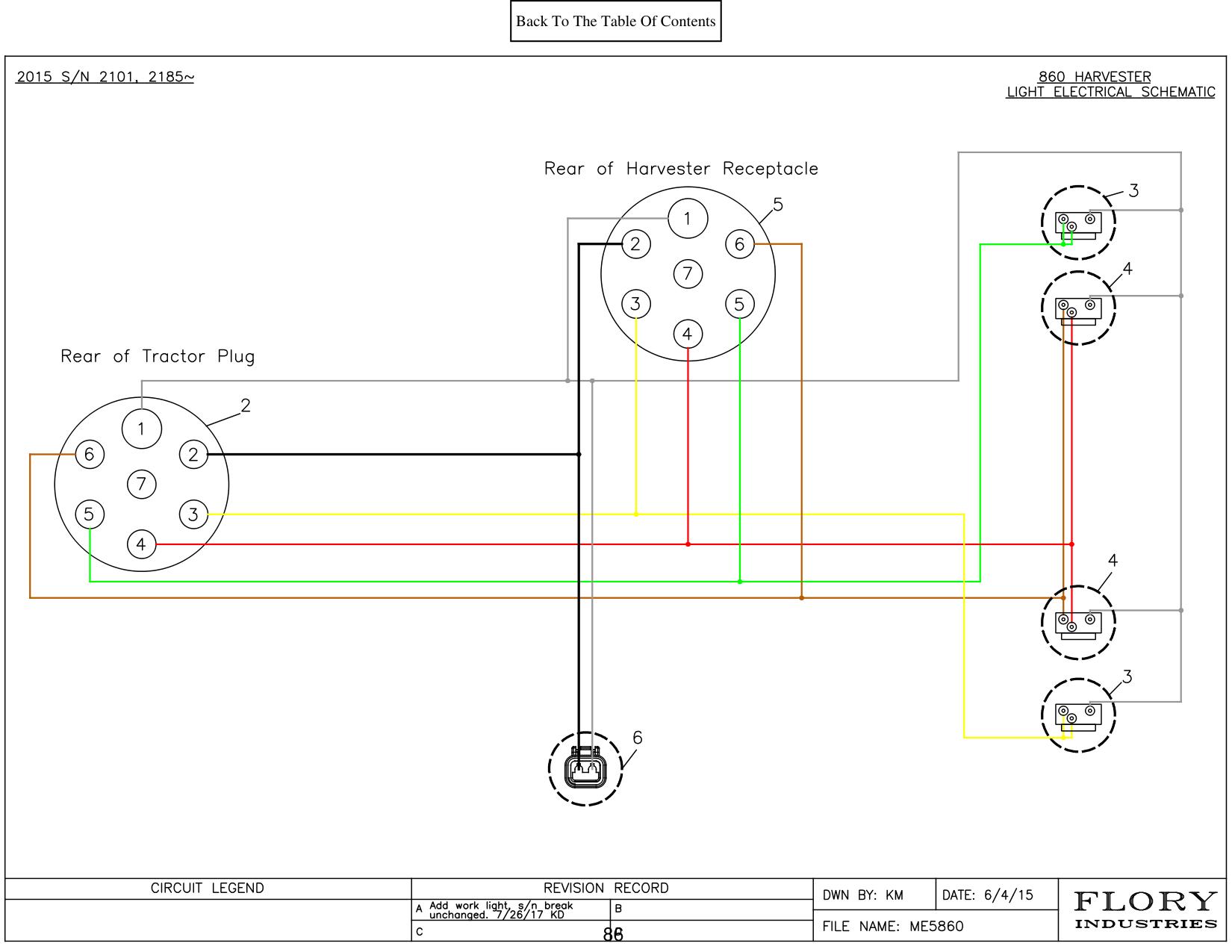

Figure 47 · Flory Flory 850/860 Harvester
Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| 1 | ME5860 | HARNESS, lights (s/n 2101, 2185~) | 1 |
| 2 | PLG7R-DC | PLUG, 7-way | 1 |
| 3A | LT3040 | LIGHT, 4" amber turn | 2 |
| 3B | PG6110 | PLUG, light | 2 |
| 4A | LT3140 | LIGHT, 4" red s/t/t | 2 |
| 4B | PG6110 | PLUG, light | 2 |
| 5A | PLG7RSKT-DC | RECEPTACLE, 7 way round | 1 |
| 5B | PLG7R-SKT-BT | BOOT, receptacle | 1 |
| 6A | LT2045 | LIGHT, 4.5" round work (s/n 2436~) | 1 |
| 6B | PG6077 | PLUG, connector (s/n 2436~) | 1 |
| 6C | PG6177 | WEDGE, lock (s/n 2436~) | 1 |
| 6C | H2520012 | MODEL 850-860 HARVESTER |
