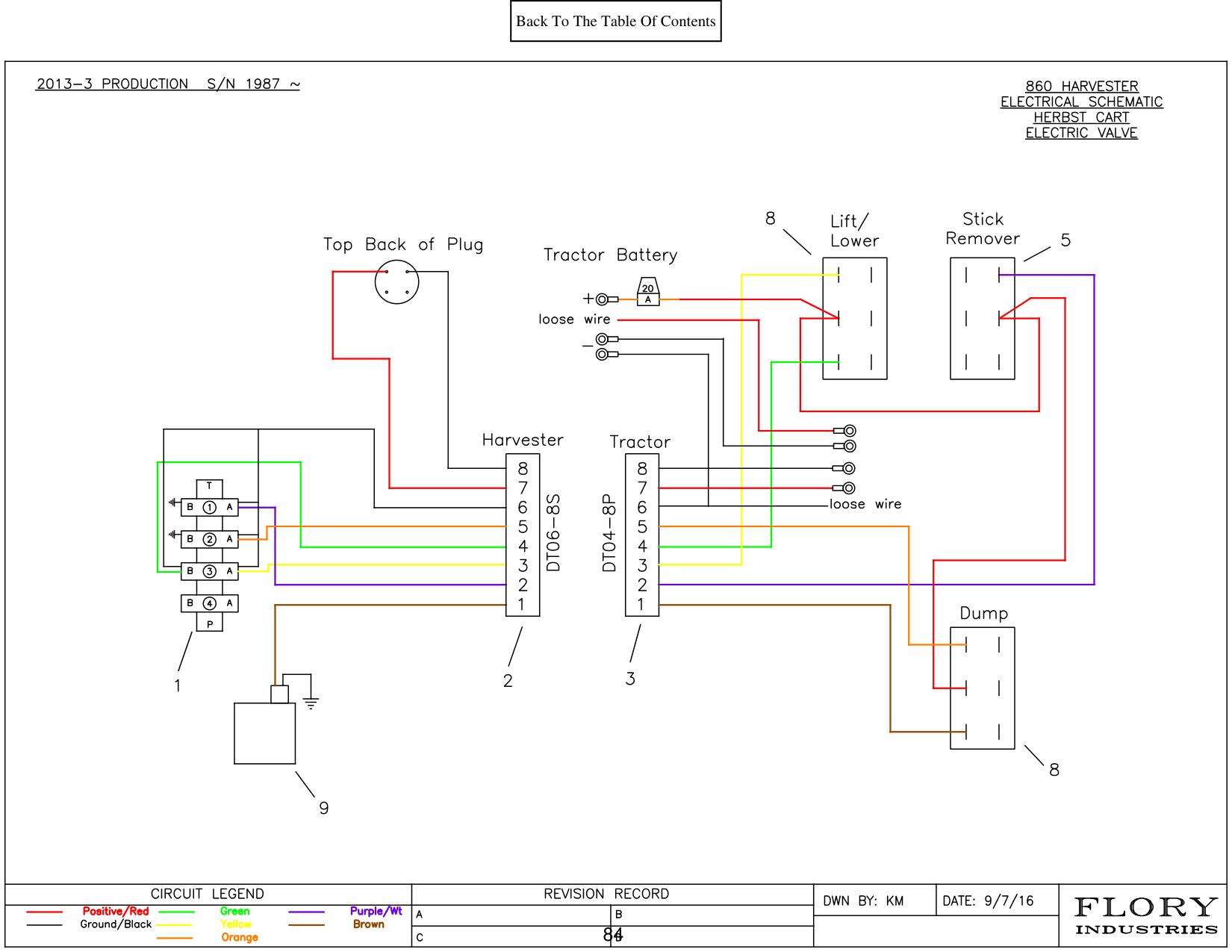

Figure 46 · Flory Flory 850/860 Harvester
Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| ELECTRICAL | SCHEMATIC (s/n 1624~) | ||
| 1 | VL5184 | VALVE-3 bank (s/n 1624~1986) (power pak) | 1 |
| 1 | VL5286 | VALVE-2 bank (s/n 1987~) (power pack) | 1 |
| 1 | VL5986 | VALVE-4 bank (s/n 1987~) (Herbst cart) | 1 |
| 2 | ME5852 | HARNESS-wire (s/n 1624 - 1986) (harvester) | 1 |
| 2 | ME5852-1 | HARNESS-wire (s/n 1987 ~) (harvester) | 1 |
| 3 | ME5853 | HARNESS-wire (s/n 1624 - 1986) (tractor) | 1 |
| 3 | ME5853-1 | HARNESS-wire (s/n 1987 ~) (tractor) | 1 |
| 4A | SW2010 | SWITCH-toggle (dpst) | 1 |
| 4B | SAN105 | BOOT-toggle | 1 |
| 5A | S2098 | SWITCH-toggle (spst) | 1 |
| 5B | SAN105 | BOOT-toggle | 1 |
| 6A | SW2056 | SWITCH- toggle (dpdt) | 1 |
| 6B | SAN105 | BOOT-toggle | 1 |
| 7 | MF7286 | MANIFOLD, HIC (s/n 1987~) | 1 |
| 8 | S208C | SWITCH, lift/lower and dump (Herbst Cart) | 2 |
| 9A | VL5077 | CARTRIDGE, dump valve (Herbst Cart) | 1 |
| 9B | MF7077 | MANIFOLD, dump valve (Herbst Cart) | 1 |
| 9C | ME1777 | COIL, dump valve (Herbst Cart) | 1 |
| 9C | H2520010 | MODEL 850-860 HARVESTER |
