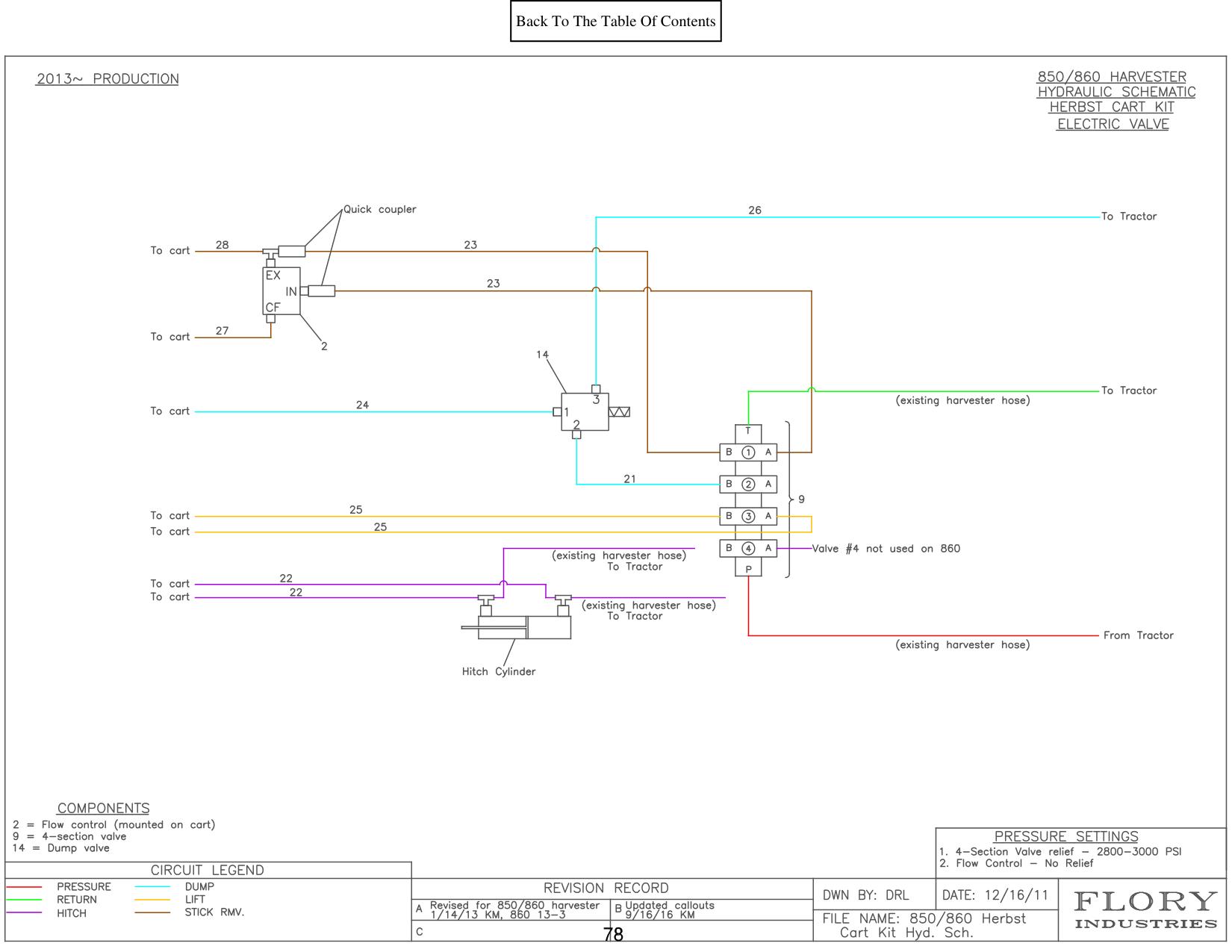

Figure 42 · Flory Flory 850/860 Harvester
Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| HYDRAULIC | SCHEMATIC (s/n 1247~) | ||
| 1A | HM2149 | MOTOR-hydraulic (p/u, prim. & elv.) | 3 |
| 1A | HM2149 | MOTOR-hydraulic (paddle sweeps)(s/n ~1794) | 2 |
| 1B | HM2149-K | SEAL KIT-motor (p/u, prim. & elv.) | 3 |
| 1B | HM2149-K | SEAL KIT-motor (paddle sweeps)(s/n ~1794) | 2 |
| 2 | VL3850 | VALVE-flow control (standard) | 1 |
| 3A | HP3233 | PUMP-systems hydraulic (single / standard) 2 | |
| 3B | HP2155-K | SEAL KIT-pump 2 | |
| 4 | DRL4-ASN | FILTER-return | 1 |
| 5 | L67205 | TANK-oil | 1 |
| 6 | VL7080 | VALVE-relief | 1 |
| 7 | 310DB | CYLINDER-telescoping hitch | 1 |
| 8 | L67775 | MOUNT-coupler (Qty 1 - standard, Qty 1 - power pak) 2 | |
| 9 | VL5184 | VALVE-3 bank (s/n 1624~1986) (power pak) | 1 |
| 9 | VL5286 | VALVE-2 bank (s/n 1987~) (power pack) | 1 |
| 9 | VL5986 | VALVE-4 bank (s/n 1987~) (Herbs cart) (electric) | 1 |
| 10 | RDRS197530 | VALVE-flow control (paddle sweep) | 1 |
| 11A | HM3149 | MOTOR-hydraulic (p/u)(s/n 1795~) | 1 |
| 11B | HM3149K | SEAL KIT-motor (p/u)(s/n 1795~) | 1 |
| 12 | MF7286 | MANIFOLD, HIC (s/n 1987~) | 1 |
| 13A | HP4233 | PUMP, double system hyd. (~ s/n 2076) | 1 |
| 13A | HP2823 | PUMP, double system hyd. ( s/n 2077 ~) | 1 |
| 13B | HP4223-K | SEAL-KIT, pump, with wearplate ( s/n 1624 ~) | 1 |
| 13B | HP1061K | SEAL-KIT, pump, w/o wearplate ( s/n 2077 ~) | 1 |
| 14A | VL5077 | CARTRIDGE, dump valve (Herbst Cart) | 1 |
| 14B | MF7077 | MANIFOLD, dump valve (Herbst Cart) | 1 |
| 14C | ME1777 | COIL, dump valve (Herbst Cart) | 1 |
| 15 | VL4380 | MANIFOLD, 3 bank (Herbst Cart) (manual) | 1 |
| 16 | VL4180 | VALVE, 1 bank (Herbst Cart) (manual) | 1 |
| 25 | Tank suction pump inlet | ||
| 26 | Pump outlet to relief port "P" | ||
| 27 | Relief "P" port to P/U motor rear port | ||
| 28 | Relief "T" port to return filter tee | ||
| 29 | P/U | motor front port to prim. motor front port | |
| 30 | Prim. mtr. rear port to elev. flo-con "IN" | ||
| 31 | Elev. flo-con "CF" port to elev. motor top port | ||
| 32 | Elev. motor bottom port to flo-con "EX" port tee | ||
| 32 | H2520011 | MODEL 850-860 HARVESTER | |
| 34 | Tractor to top quick connector | ||
| 35 | Tractor to bottom quick connector | ||
| 36 | Tractor to hyd. hitch cyl. base end | ||
| 37 | Tractor to hyd. hitch cyl. rod end | ||
| 38 | Elev . flo-con. "EX" port tee to sweep flo-con "IN" | ||
| 39 | Sweep flo-con "CF" to rt. motor bot. port | ||
| 40 | Rt. motor top port to L. motor bot. port | ||
| 41 | L. | motor top port to relief port "T" | |
| 42 | Relief port "T" to sweep flo-con "EX" port | ||
| 43 | Sweep flo-con "EX" port to return filter | ||
| 50 | Tank rear suction to power pak pump inlet | ||
| 51 | Pump outlet to valve "P" | ||
| 52 | Section 1 "A" to 1st Q/C | ||
| 53 | Section 1 "B" to 2ns Q/C | ||
| 54 | Section 2 "A" to 3rd Q/C | ||
| 55 | Section 2 "B" to 4th Q/C | ||
| 56 | Valve "T" to tank front return | ||
| 57 | Elevator shut off valve to "EX" port | 90 | |
| 57 | H2520011 | MODEL 850-860 HARVESTER |
