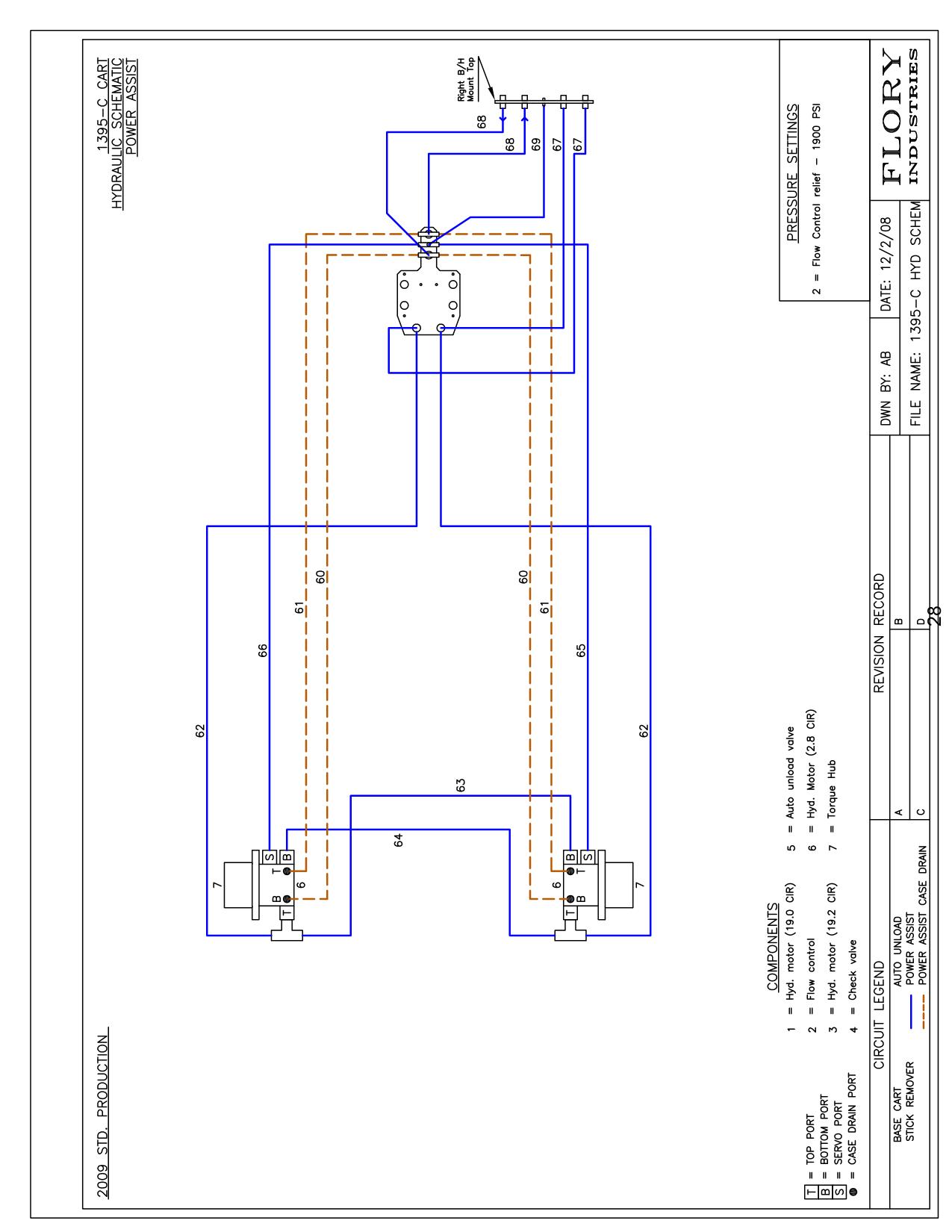

Figure 19 · Flory Flory 1395-C Conveyor Cart
Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| 6A | HM7220 | MOTOR, wheel | 2 |
| 6B | HM6220-K | SEAL KIT, wheel motor | 2 |
| 7 | TH2161-2 | HUB, torque | 2 |
| 60 | HOSE, bott. B/H tee to bott. wheel mtr. case ports | 2 | |
| 61 | HOSE, top wheel motor case ports to top B/H tee | 2 | |
| 62 | HOSE, lt. & rt. B/H 90's to lt. & rt. wheel motor top | 2 | |
| 63 | HOSE, lt. wheel mtr. top to rt. wheel mtr. bottom | 1 | |
| 64 | HOSE, rt. wheel motor top to lt. wheel motor bott. | 1 | |
| 65 | HOSE, B/H tee to right wheel motor servo | 1 | |
| 66 | HOSE, B/H tee to left wheel motor servo | 1 | |
| 67 | HOSE, bottom B/H 90's left & right | 2 | |
| 68 | HOSE, top B/H tees top & bottom | 2 | |
| 69 | HOSE, #04 tee | 1 | |
| 69 | 1395PB011 | MODEL 1395-C CART |
