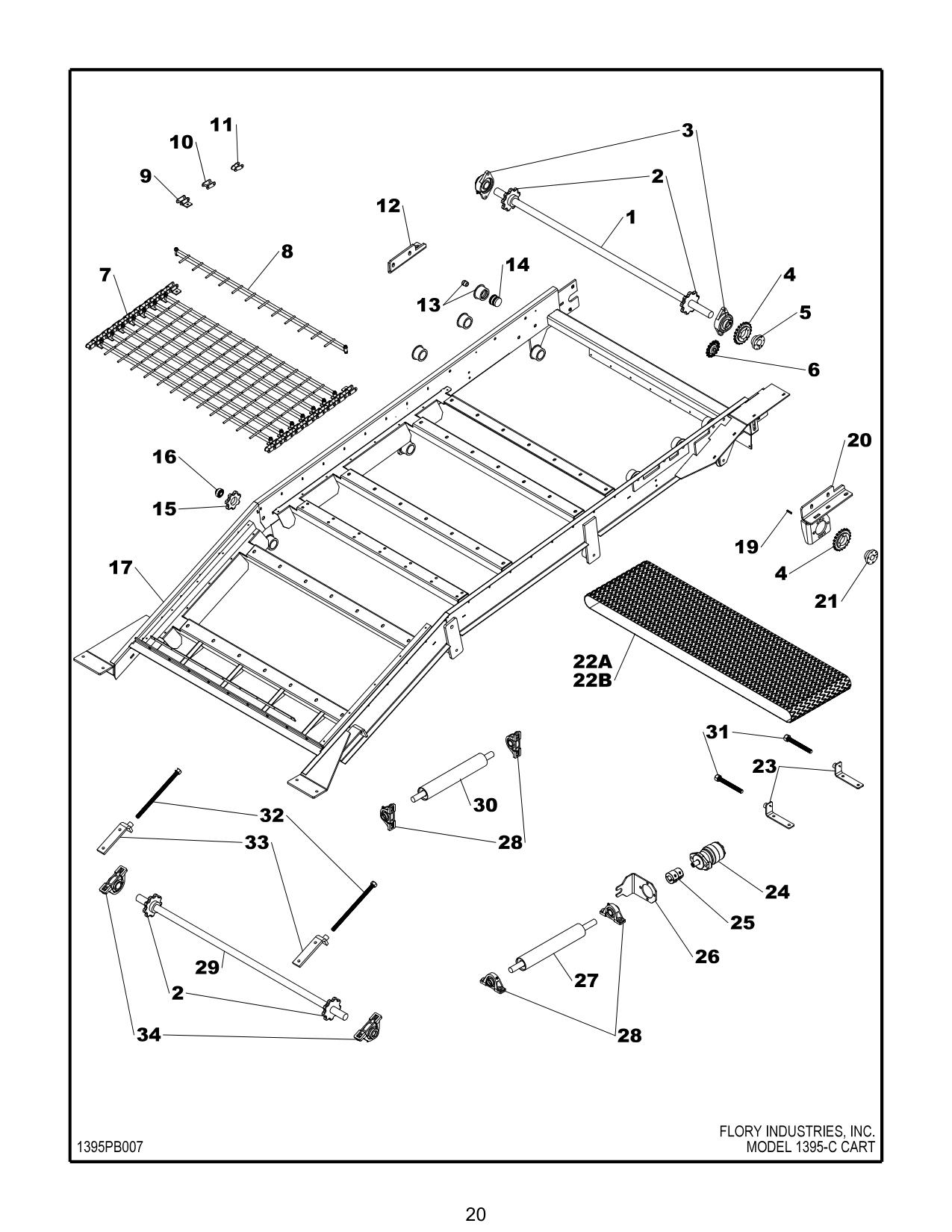

Figure 13 · Flory Flory 1395-C Conveyor Cart
Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| 31 | C11115 | BOLT, cross conveyor take-up | 2 |
| 32 | T1234 | BOLT, stick chain take-up | 2 |
| 33 | C6940 | BRACKET, bearing take-up | 2 |
| 34 | PBC2108 | BEARING, stick chain take-up | 2 |
| 34 | 1395PB007 | MODEL 1395-C CART |
