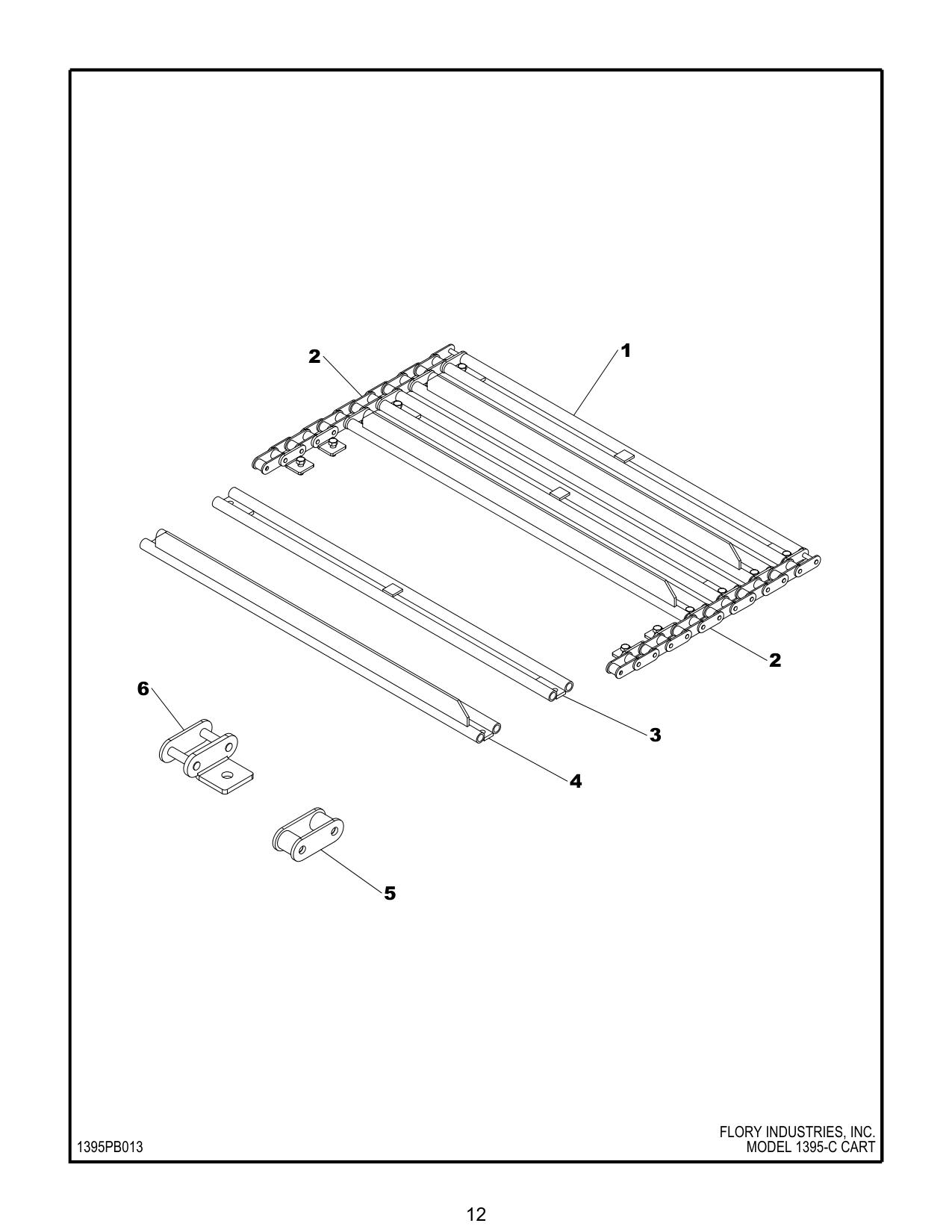

Figure 7 · Flory Flory 1395-C Conveyor Cart
Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| 1 | C49795 | TUBE CHAIN, (complete) | 1 |
| 2 | CH7296 | CHAIN, roller | 2 |
| 3 | C19105 | TWIN TUBE, w/o flight | 74 |
| 4 | C19115 | TWIN TUBE, w flight | 74 |
| 5 | CH5557-2 | LINK, connecting link (w/o tab) | |
| 6 | CH5557-3 | LINK, connecting link (w tab) | |
| 6 | 1395PB013 | MODEL 1395-C CART |
