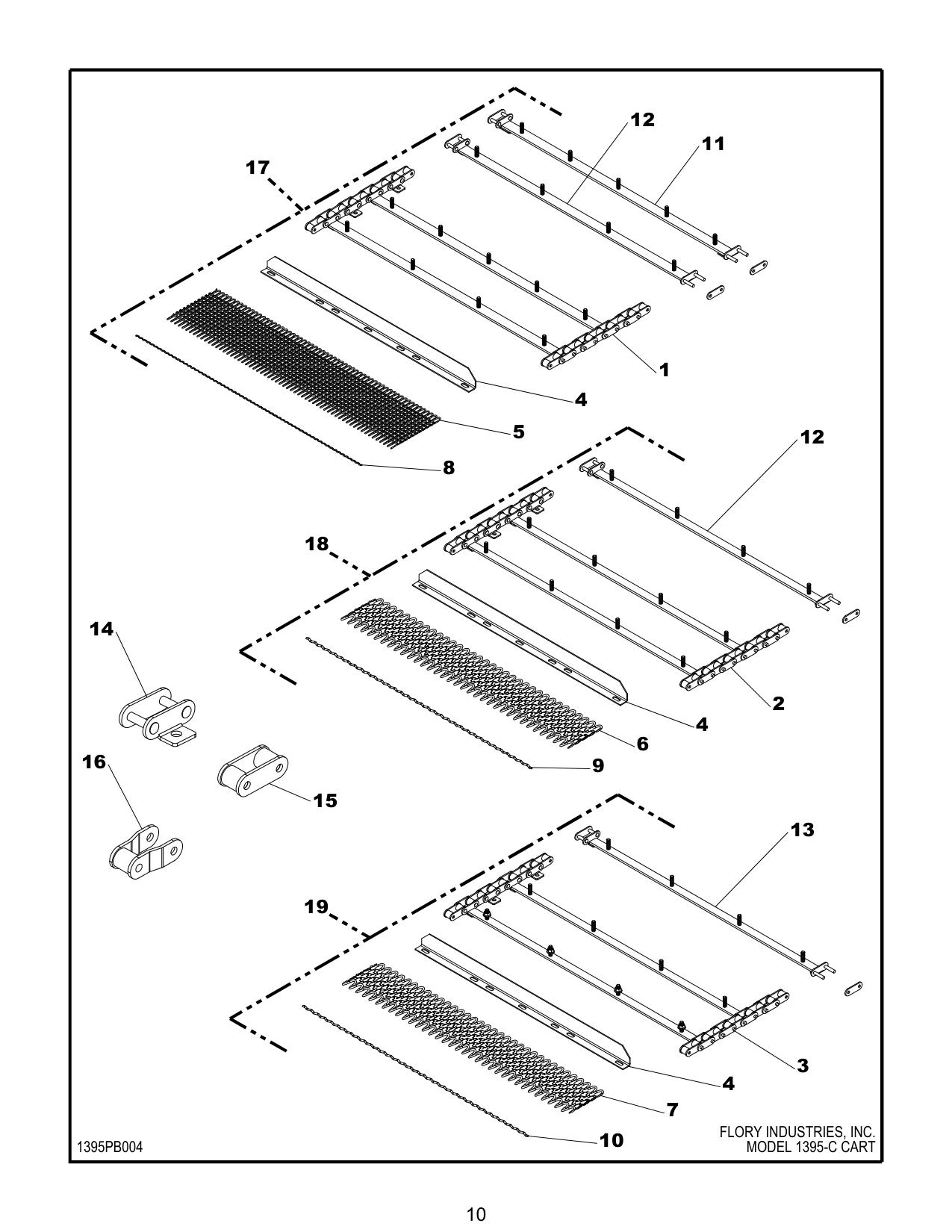

Figure 6 · Flory Flory 1395-C Conveyor Cart
Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| 1 | C6304 | CARCASS, chain (almond) | 1 |
| 2 | C6314 | CARCASS, chain (pecan) | 1 |
| 3 | C6324 | CARCASS, chain (walnut) | 1 |
| 4 | C6006 | FLITE, chain | 74 |
| 5 | C4376 | WIRE CHAIN, blank (almond) | 1 |
| 6 | C4378 | WIRE CHAIN, blank (pecan) | 1 |
| 7 | C4370 | WIRE CHAIN, blank (walnut) | 1 |
| 8 | C1163 | WIRE, chain lacing (almond) | 1 |
| 9 | C1165 | WIRE, chain lacing (pecan) | 1 |
| 10 | C1167 | WIRE, chain lacing (walnut) | 1 |
| 11 | C6516 | STRAP, chain (5 bolt)(almond) | |
| 12 | C6416 | STRAP, chain (4 bolt)(almond & pecan) | |
| 13 | C6417 | STRAP, chain (4 bolt)(walnut) | |
| 14 | CH5557 | LINK, connecting link (w/ tab) | |
| 15 | CH5557-2 | LINK, connecting link (w/o tab) | |
| 16 | CH6557 | LINK, connecting half | |
| 17 | C4375 | WIRE CHAIN, complete (almonds) | 1 |
| 18 | C4377 | WIRE CHAIN, complete (pecans) | 1 |
| 19 | C4379 | WIRE CHAIN, complete (walnuts) | 1 |
| 19 | 1395PB004 | MODEL 1395-C CART |
