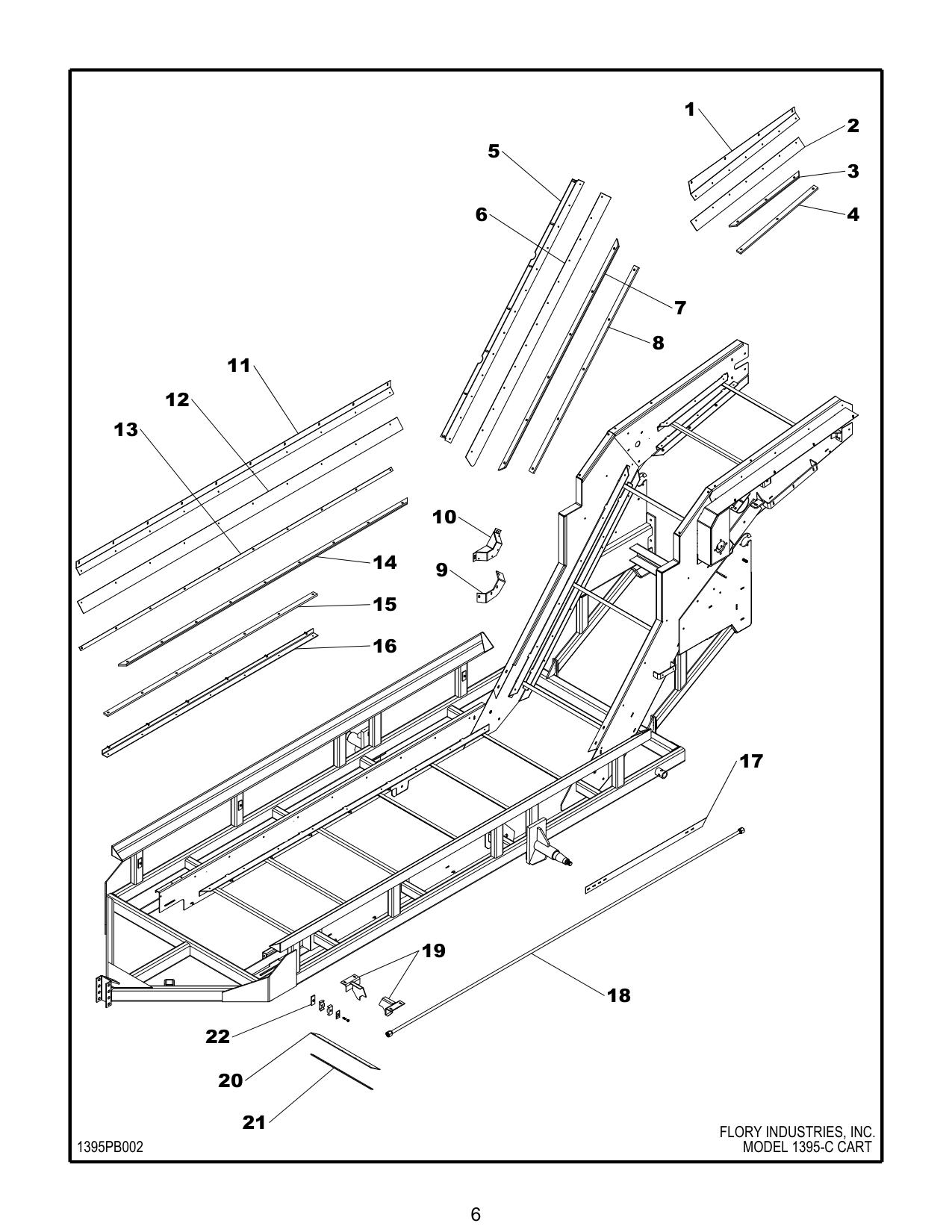

Figure 3 · Flory Flory 1395-C Conveyor Cart

Tap a circled number on the diagram to identify the part.

diagram
✕
#Part numberDescriptionQty
1 C6591 BRACKET, upper conveyor seal (right) 1
1 C6691 BRACKET, upper conveyor seal (left) 1
2 C3109R SEAL, upper conveyor side 2
3 C3089 WEARSTRIP, upper conveyor (slider bed) 2
4 C3202 WEARSTRIP, upper conveyor (return) 2
5 C6494 BRACKET, elevator seal 2
6 C3217 SEAL, elevator side (right) 1
6 C3219 SEAL, elevator side (left) 1
7 C3088 WEARSTRIP, elevator (slider bed) 2
8 C3201 WEARSTRIP, elevator (return) 2
9 C3247 SEAL, elevator transition (right) 1
9 C3249 SEAL, elevator transition (left) 1
10 C6496 BRACKET, elevator transition seal 2
11 C6497 BRACKET, lower conveyor seal 2
12 C3182 SEAL, lower conveyor 2
13 C6485 CLAMPSTRIP, lower conveyor seal 2
14 C3090 WEARSTRIP, lower conveyor (slider bed) 2
15 C3214 WEARSTRIP, lower conveyor (return) 2
16 C64903 BRACKET, tank conveyor return 2
17 C6116 PLATE, elevator transition filler 2
18 HS0129 LINE, hydraulic 4
19 C2221 SHIELD, nut (front) 2
20 C3151 SEAL, lower conveyor (front) 1
21 C6470 CLAMPSTRIP, lower conveyor seal (front) 1
22 CA6012-2T CLAMP ASSEMBLY, hydraulic line 6
22 1395PB002 MODEL 1395-C CART
