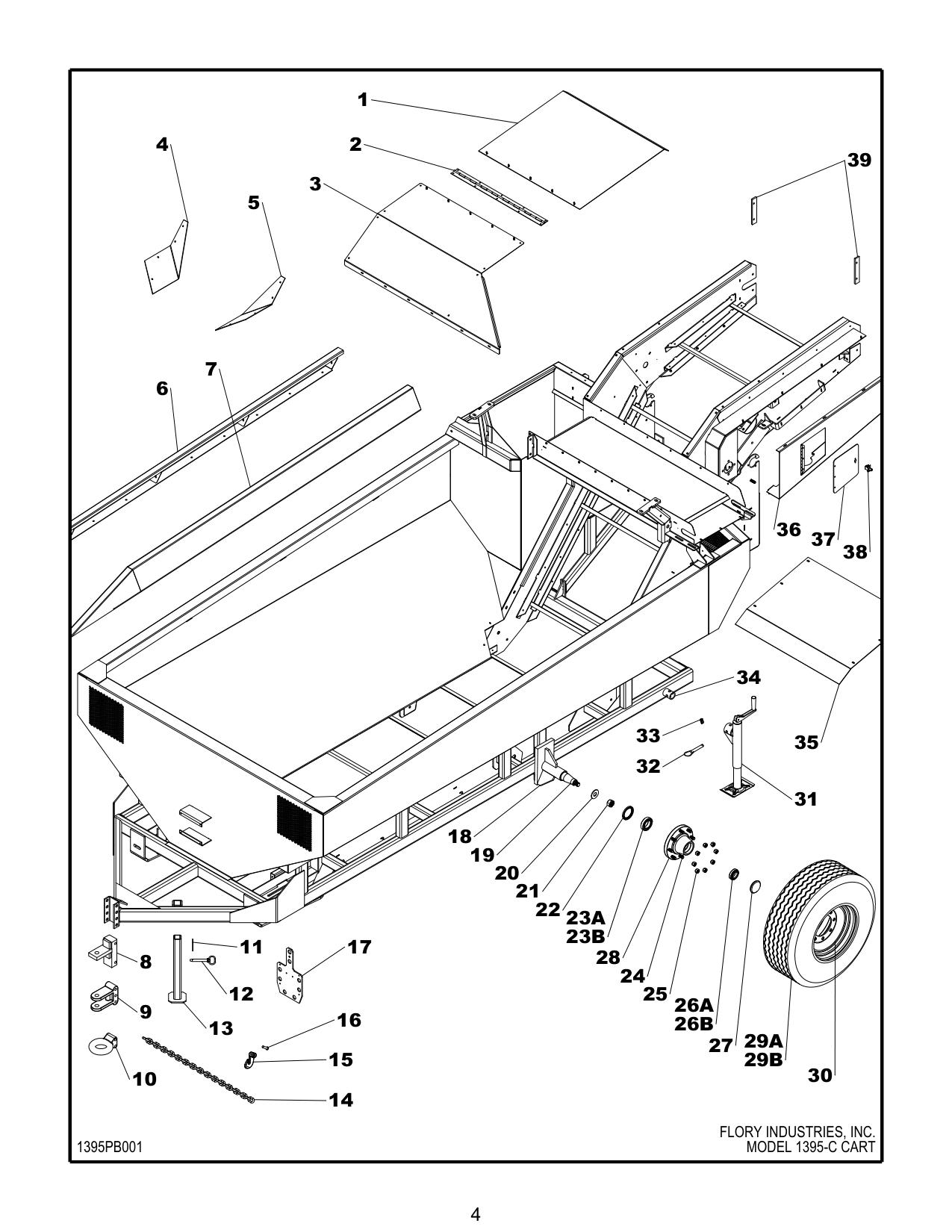

Figure 2 · Flory Flory 1395-C Conveyor Cart
Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| 1 | C2088 | COVER, elevator (upper) | 1 |
| 2 | C2710 | HINGE, elevator hinge | 1 |
| 3 | C20875 | COVER, elevator (lower) | 1 |
| 4 | C6727 | BRACE, lower conveyor and elevator (right) | 1 |
| 5 | C6729 | BRACE, lower conveyor and elevator (left) | 1 |
| 6 | C69915 | EXTENSION, side (right) | 1 |
| 7 | C69935 | EXTENSION, side (left) | 1 |
| 8 | C6191 | HITCH, single lip (standard) | 1 |
| 9 | HT2010 | HITCH, double lip (optional) | 1 |
| 10 | 6137 | HITCH, lunette (optional) | 1 |
| 11 | PN3005 | PIN, hair | 1 |
| 12 | PN6011 | PIN, jack | 1 |
| 13 | C6738 | STAND, jack (front) | 1 |
| 14 | C4004 | CHAIN, safety | 1 |
| 15 | 38GH | HOOK, grab (3/8”) | 1 |
| 16 | 42953 | PIN, grab hook | 1 |
| 17 | C6778 | MOUNT, hydraulic hose | 1 |
| 18 | SK6230 | SPINDLE ASSEMBLY | 2 |
| 19 | 107007A | SPINDLE (weld) | 2 |
| 20 | 106247 | WASHER, spindle | 2 |
| 21 | 106248 | NUT, spindle | 2 |
| 22 | CR27394 | SEAL, hub | 2 |
| 23A | JLM506849 | CONE, bearing (inner) | 2 |
| 23B | JLM506810 | CUP, bearing (inner) | 2 |
| 24 | 102069 | BOLT, wheel lug | 16 |
| 25 | 102070 | NUT, wheel lug | 16 |
| 26A | LM501310 | CUP, bearing (outer) | 2 |
| 26B | LM501349 | CONE, bearing (outer) | 2 |
| 27 | 103212 | CAP, hub dust | 2 |
| 28 | 107013 | HUB, wheel (includes ref. nos. 22-28) | 2 |
| 29A | 12X16.5 | TIRE | 2 |
| 29B | TR9121 | TUBE, tire | 2 |
| 30 | 107188 | WHEEL | 2 |
| 31 | HT8110 | STAND, jack (rear) | 1 |
| 32 | FS-PN6010 | PIN, jack | 1 |
| 33 | PN2004 | PIN, linch | 1 |
| 34 | BA2011 | MOUNT, jack stand (welded) | 1 |
| 35 | C6122 | SLIDE, conveyor chain | 1 |
| 36 | C22815 | SHIELD, conveyor drive | 1 |
| 37 | C2700 | DOOR, conveyor shield | 1 |
| 38 | 44 | LATCH, shield | 1 |
| 39 | C6624 | BRACE, upper conveyor (left) | 2 |
| 39 | 1395PB001 | MODEL 1395-C CART |
