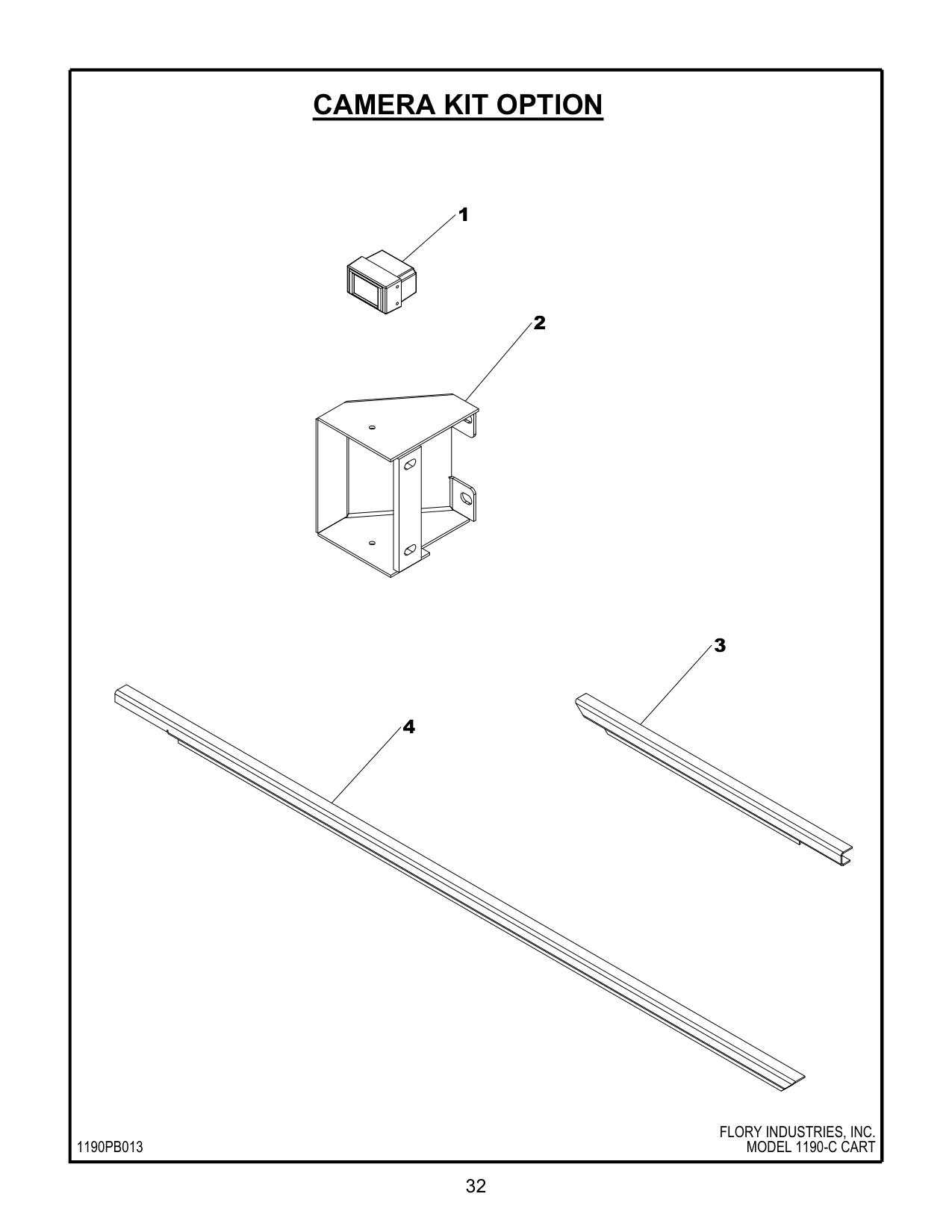

Figure 18 · Flory Flory 1190-C Cart
Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| OPTIONAL | CAMERA KIT | ||
| 1 | MM1127 | CAMERA, color | 1 |
| 2 | C2900 | GUARD, camera | 1 |
| 3 | C19135 | RACEWAY, camera cable | 1 |
| 4 | C19125 | RACEWAY, camera cable | 1 |
| 5 | CB0033 | CABLE, 33' camera | 2 |
| 5 | 1190PB013 | 33 MODEL 1190-C CART |
