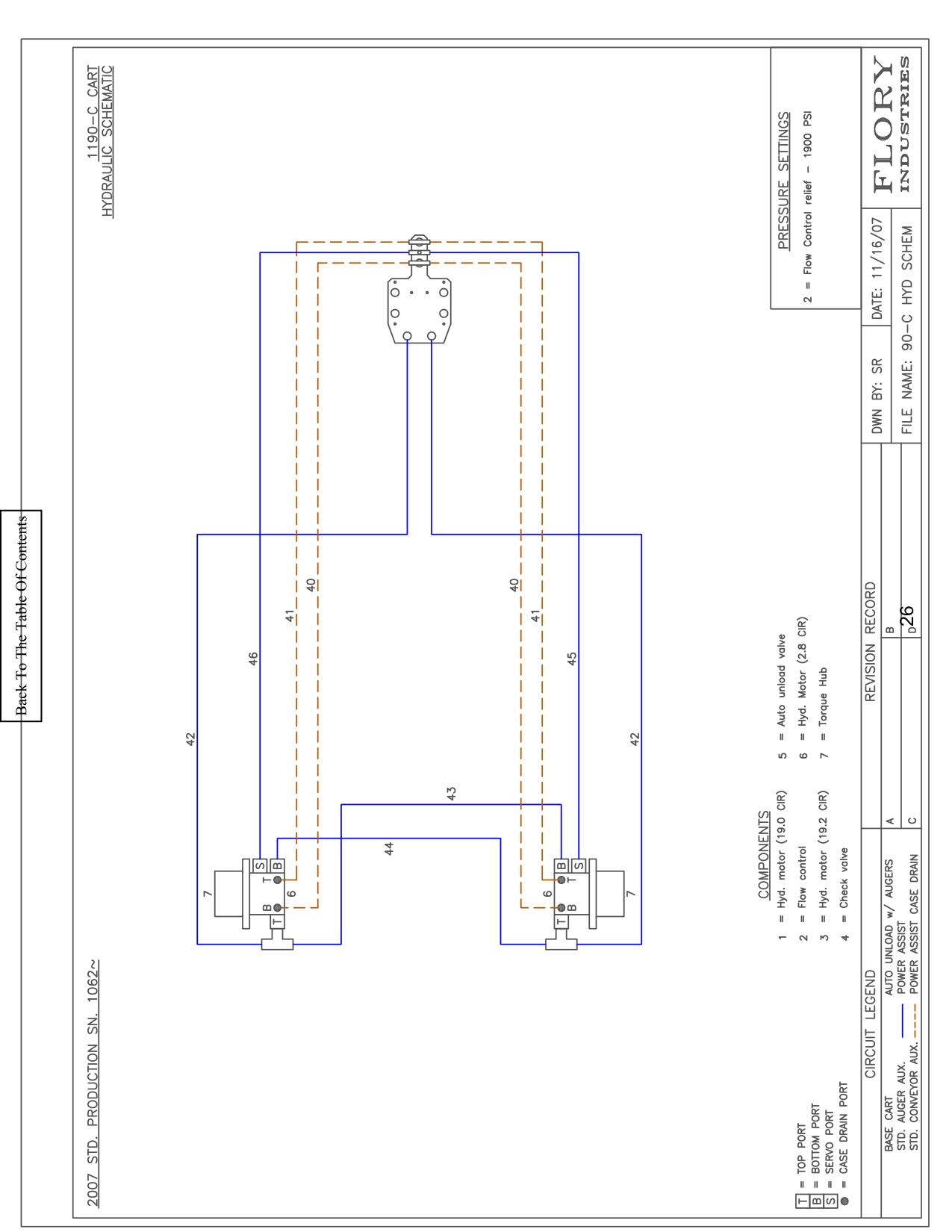

Power Assist Schematic · Flory Flory 1190-C Cart
Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| 6A | HM7220 | MOTOR, wheel | 2 |
| 6B | HM6220-K | SEAL KIT, wheel motor | 2 |
| 7 | TH2161 | HUB, torque | 2 |
| 40 | HOSE, bott. B/H tee to bott. wheel mtr. case ports 113" | 2 | |
| 41 | HOSE, top wheel motor case ports to top B/H tee 115" | 2 | |
| 42 | HOSE, lt. & rt. B/H 90's to lt. & rt. wheel motor top 103" | 2 | |
| 43 | HOSE, lt. wheel mtr. top to rt. wheel mtr. bottom 152" | 1 | |
| 44 | HOSE, rt. wheel motor top to lt. wheel motor bott. 152" | 1 | |
| 45 | HOSE, B/H tee to right wheel motor servo 122" | 1 | |
| 46 | HOSE, B/H tee to left wheel motor servo 115" | 1 | |
| 46 | 1190PB011 | MODEL 1190-C CART |
