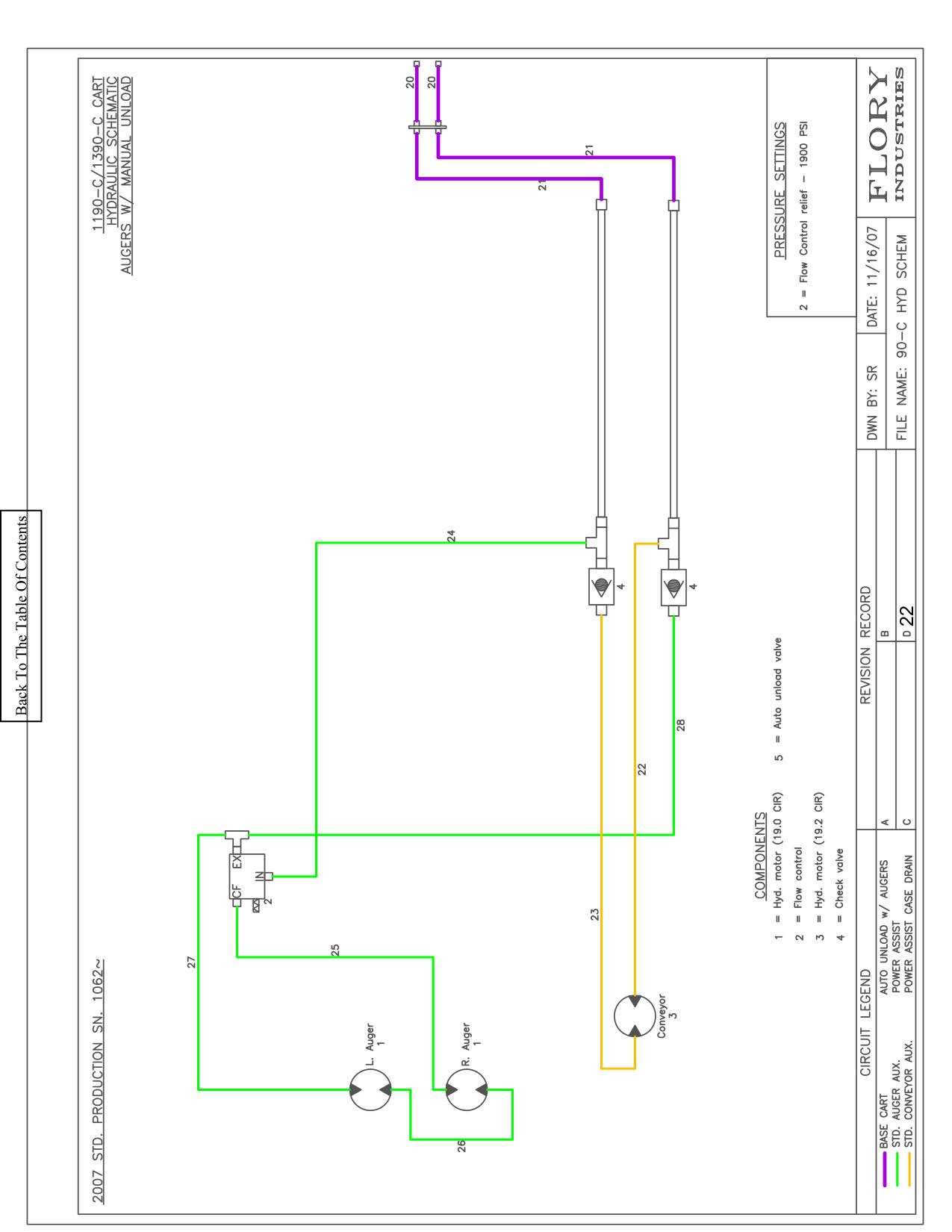

Auger Schematic · Flory Flory 1190-C Cart
Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| 1A | HM1189 | MOTOR, auger drive (s/n ~1089 and 1135~) | 2 |
| 1A | EM179 | MOTOR, auger drive (s/n 1090 -1134) | 2 |
| 1B | HM2149-K | SEAL KIT, motor (s/n ~1089 and 1135~) | 2 |
| 1B | CM226SK | SEAL KIT, motor (s/n 1090 - 1134) | 2 |
| 2A | RDRS197530 | VALVE, flow control | 1 |
| 2B | MK2189 | SEAL KIT, flow control valve | 1 |
| 3A | HM1192 | MOTOR, conveyor drive | 1 |
| 3B | HM2061-K | SEAL KIT, motor | 1 |
| 4 | VL6010 | VALVE, check | 2 |
| 4 | 20A | HOSE, quick couplers to adapter plate 60" | 2 |
| 20B | 6601-12-12 | COUPLER, quick (female) | 2 |
| 20B | 6602-12-12 | COUPLER, quick (male) | 2 |
| 21 | HOSE, adapter plate to steel lines 25" | 2 | |
| 22 | HOSE, bottom steel line to conveyor motor 'A' 71" | 1 | |
| 23 | HOSE, top steel line check valve to conv. motor 'B' 62” | 1 | |
| 24 | HOSE, top steel line tee to flow control 'IN' 30” | 1 | |
| 25 | HOSE, flow contr. 'CF' to right auger motor 'RIGHT' 43” | 1 | |
| 26 | HOSE, rt. auger mtr 'RIGHT' to lt. auger mtr 'RIGHT' 28” | 1 | |
| 27 | HOSE, left auger motor 'LEFT' to flow control 'EX' 75" | 1 | |
| 28 | HOSE, flow contr. 'EX' to top steel line check valve 24" | 1 | |
| 28 | 1190PB009 | MODEL 1190-C CART |
