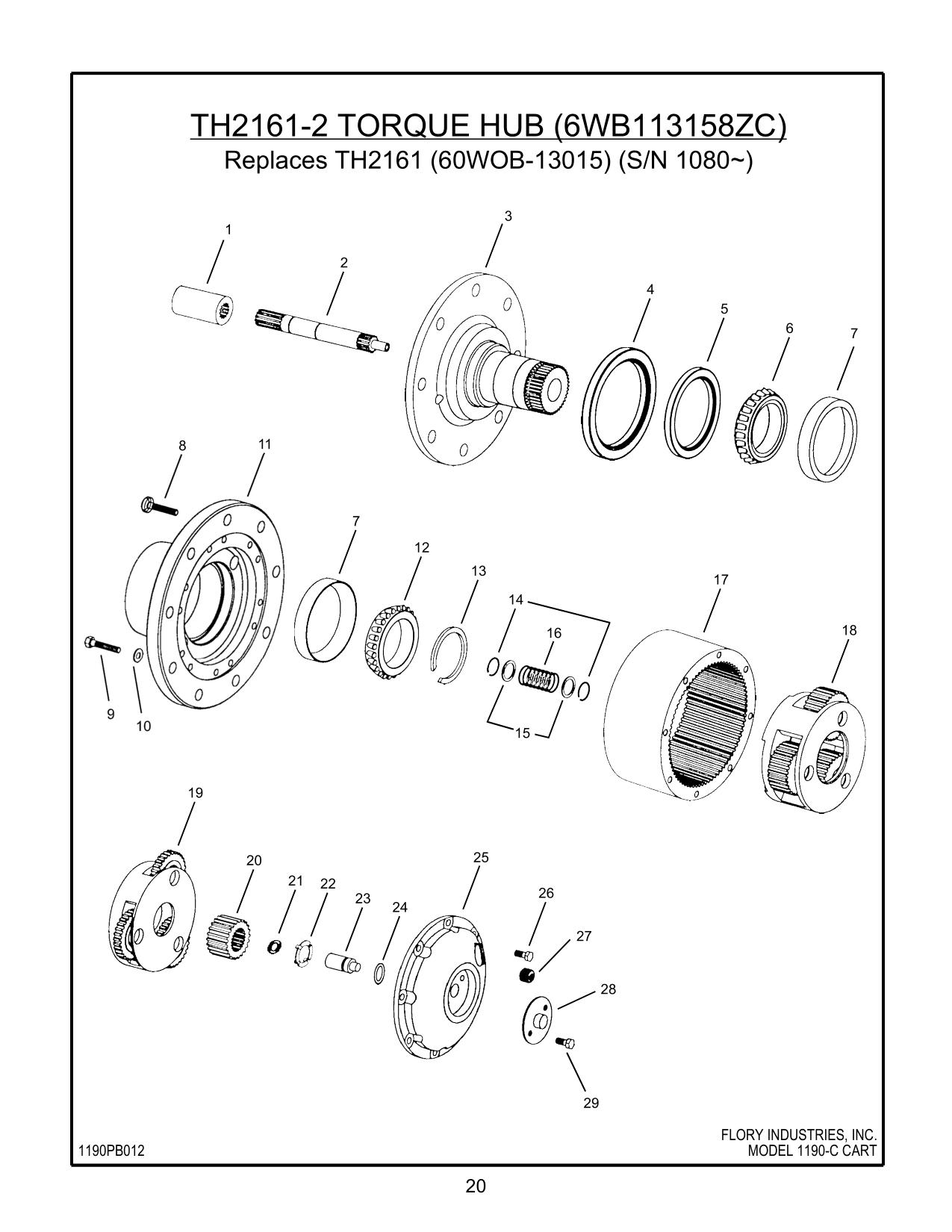

Torque Hub Breakdown · Flory Flory 1190-C Cart
Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| 1 | CP4139 | COUPLING | 1 |
| 2 | SF4139 | SHAFT, input | 1 |
| 3 | SN4139 | SPINDLE | 1 |
| 4 | SL4139 | SEAL, v-ring boot | 1 |
| 5 | SL4139-2 | SEAL, oil | 1 |
| 6 | BR4310 | BEARING, cone | 1 |
| 7 | BR3310 | BEARING, cup | 2 |
| 8 | BT4010 | BOLT, wheel | 9 |
| 9 | BT4310 | BOLT, hex-head | 12 |
| 10 | WS4110 | WASHER, flat | 12 |
| 11 | HB2139 | HUB | 1 |
| 12 | BR4139 | BEARING, cone | 1 |
| 13 | RN1139 | RING, retaining | 1 |
| 14 | RN1310 | RING, retaining | 2 |
| 15 | WS5410 | WASHER, spring back-up | 2 |
| 16 | SG1210 | SPRING, disengage | 1 |
| 17 | GR4139 | GEAR, ring | 1 |
| 18 | HG4139 | ASSY, pri-carrier | 1 |
| 19 | HG4139-2 | ASSY, sec-carrier | 1 |
| 20 | GR4139-2 | GEAR, sun | 1 |
| 21 | WS5410 | WASHER, thrust | 1 |
| 22 | WS5310 | WASHER, thrust | 1 |
| 23 | CT7110 | PLUNGER | 1 |
| 24 | OR4139 | O-RING | 1 |
| 25 | CV4210 | COVER | 1 |
| 26 | BT4410 | BOLT, hex-head | 8 |
| 27 | PG4010 | PLUG, pipe | 1 |
| 28 | CV4110 | COVER | 1 |
| 29 | BT4110 | BOLT, hex-head | 2 |
| 29 | 1190PB012 | 21 MODEL 1190-C CART |
