Torque Hub Breakdown · Flory Flory 1190-C Cart

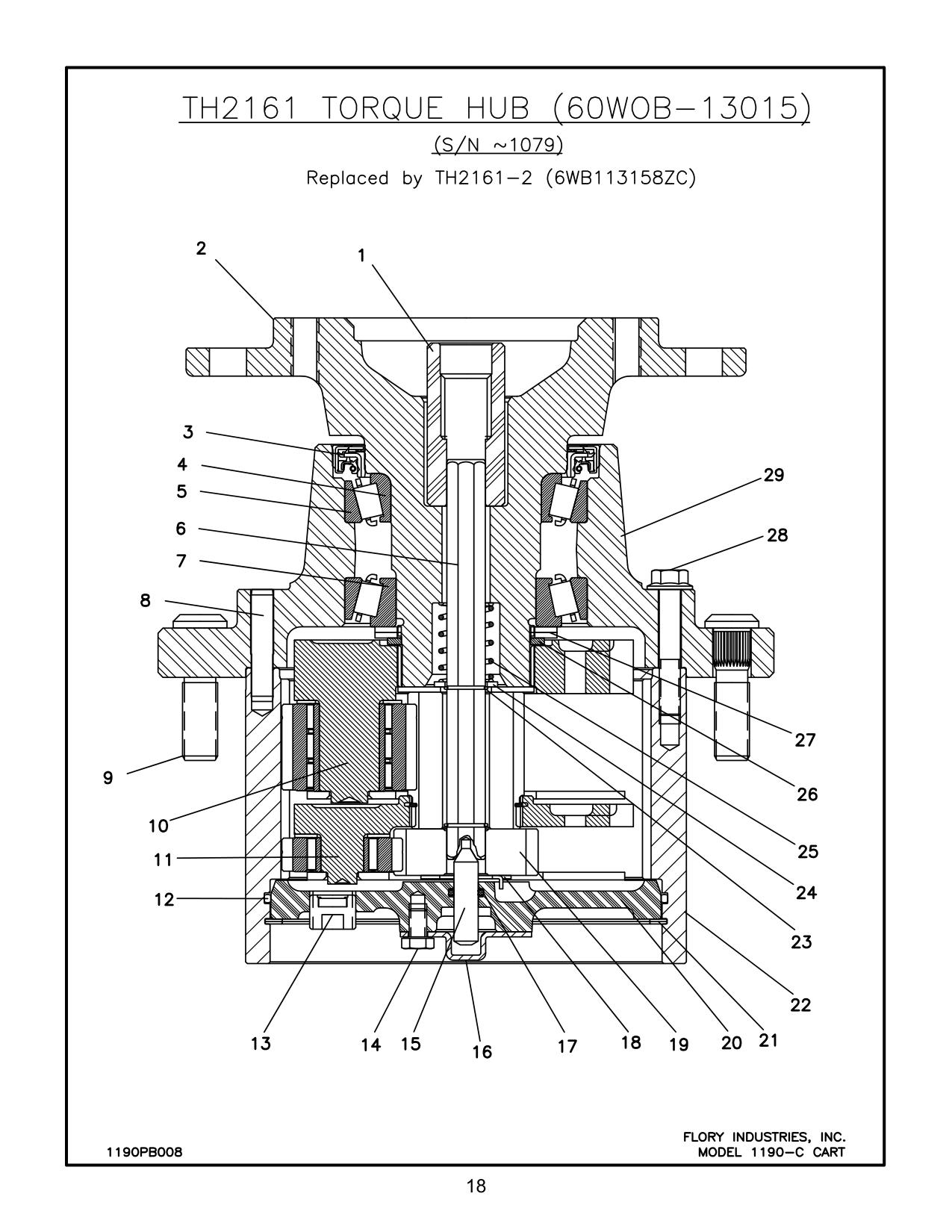

Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| 1 | CP4009 | COUPLING | 1 |
| 2 | SN4310 | SPINDLE | 1 |
| 3 | SL4010 | SEAL, oil | 1 |
| 4 | BR3310 | BEARING, cone | 1 |
| 5 | BR4310 | BEARING, cup | 2 |
| 6 | SF4310 | SHAFT, input | 1 |
| 7 | BR4410 | BEARING, cone | 1 |
| 8 | PN1110 | PIN, coiled spring | 4 |
| 9 | BT4010 | BOLT, wheel | 9 |
| 10 | HG4209 | CARRIER, secondary | 1 |
| 11 | HG4208 | CARRIER, primary | 1 |
| 12 | OR4110 | O-RING | 1 |
| 13 | PG4010 | PLUG, pipe | 1 |
| 14 | BT4110 | BOLT, hex head | 2 |
| 15 | CT7010 | PLUNGER, disengage | 1 |
| 16 | CV4110 | COVER, disengage | 1 |
| 17 | OR4210 | O-RING | 1 |
| 18 | WS5310 | WASHER, thrust | 1 |
| 19 | GR4110 | GEAR, sun | 1 |
| 20 | CV4010 | COVER | 1 |
| 21 | RN1110 | RING, retaining | 1 |
| 22 | GR4010 | GEAR, ring | 1 |
| 23 | RN1210 | RING, retaining | 2 |
| 24 | WS5210 | WASHER, thrust | 1 |
| 25 | SG1110 | SPRING, disengage | 1 |
| 26 | RN1209 | RING, retaining | 1 |
| 27 | BU7310 | SPACER, splined | 2 |
| 28 | BT4210 | BOLT, hex head | 6 |
| 29 | HB2009 | HUB | 1 |
| 29 | 1190PB008 | MODEL 1190-C CART |
